TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A4 Panel connections
Compensation Waler TAR 85

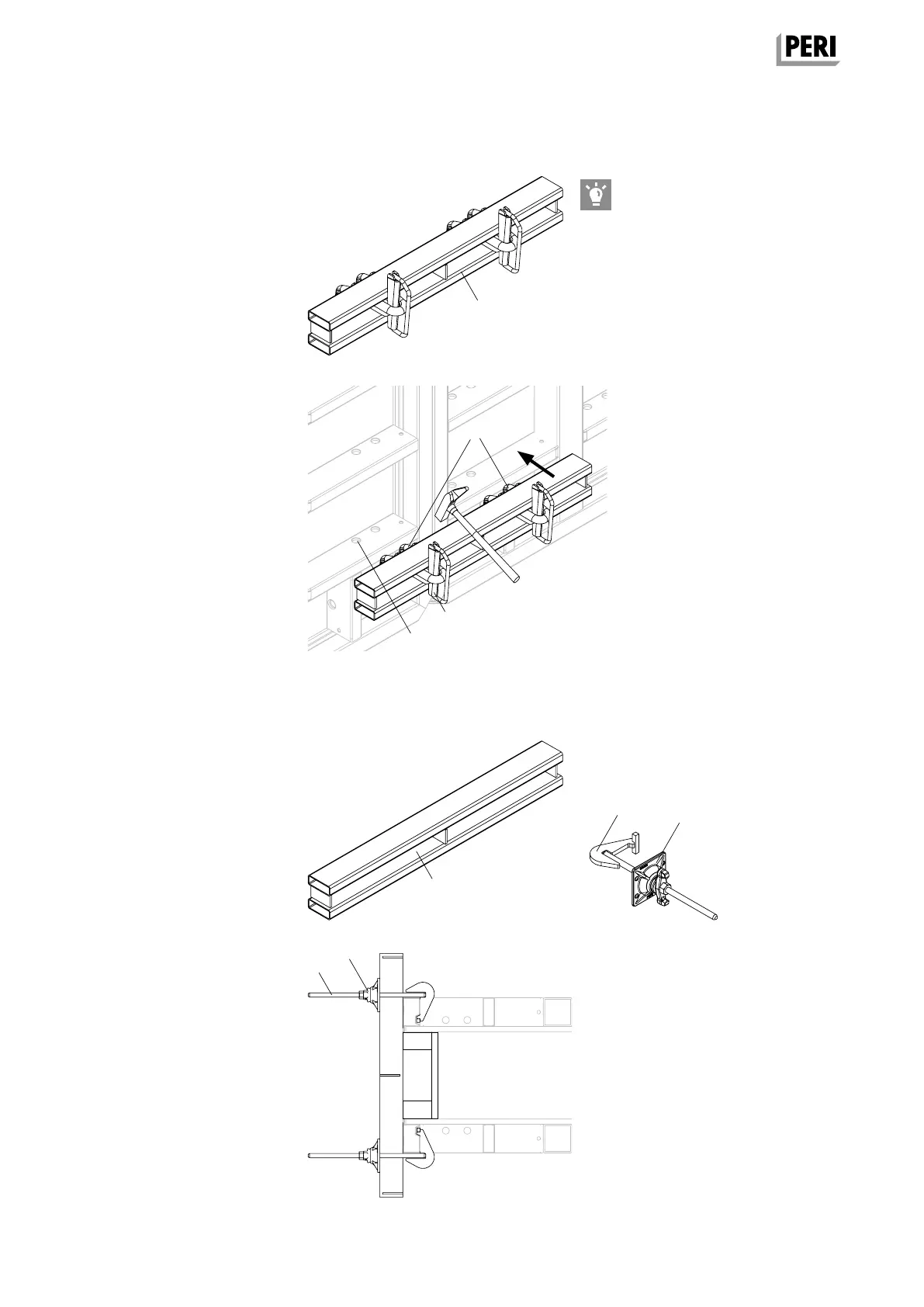

The Compensation Waler TAR 85 (23)
is used as a bracing, aligning and
load-transferring panel connection.
(Fig. A4.05)
Areas of use:
– Length compensation, see A11
– Corners with large wall thicknesses,
see A7
– Acute and oblique-angle corners,
see A8
– Wall offsets, see A10
– Extensions, see A14
Assembly
1. Attach hooks of the hook clip (23.1)
to the connection holes (10.4) of the
panel.
2. Securely fix the Wedges (23.2).
(Fig. A4.06)
Waler 85
For stopend formwork. (Fig. A4.07)
Assembly
1. Push Stopend Tie TS (25) through the
TRIO Waler 85 (24) and attach to the
frame profiles of the panels.
2. Tighten by means of the Wingnut
Pivot Plate (33). (Fig. A4.08)
Fig. A4.06
Fig. A4.07
23.1
23.2
10.4
Fig. A4.05
Fig. A4.08
Alternatively, the Compensation Waler
MAR 85 can be used (not shown here).
