TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
41.1
41.2
10.3
41.2
41.1
10.4
41.2
41.1
10.4
10.3

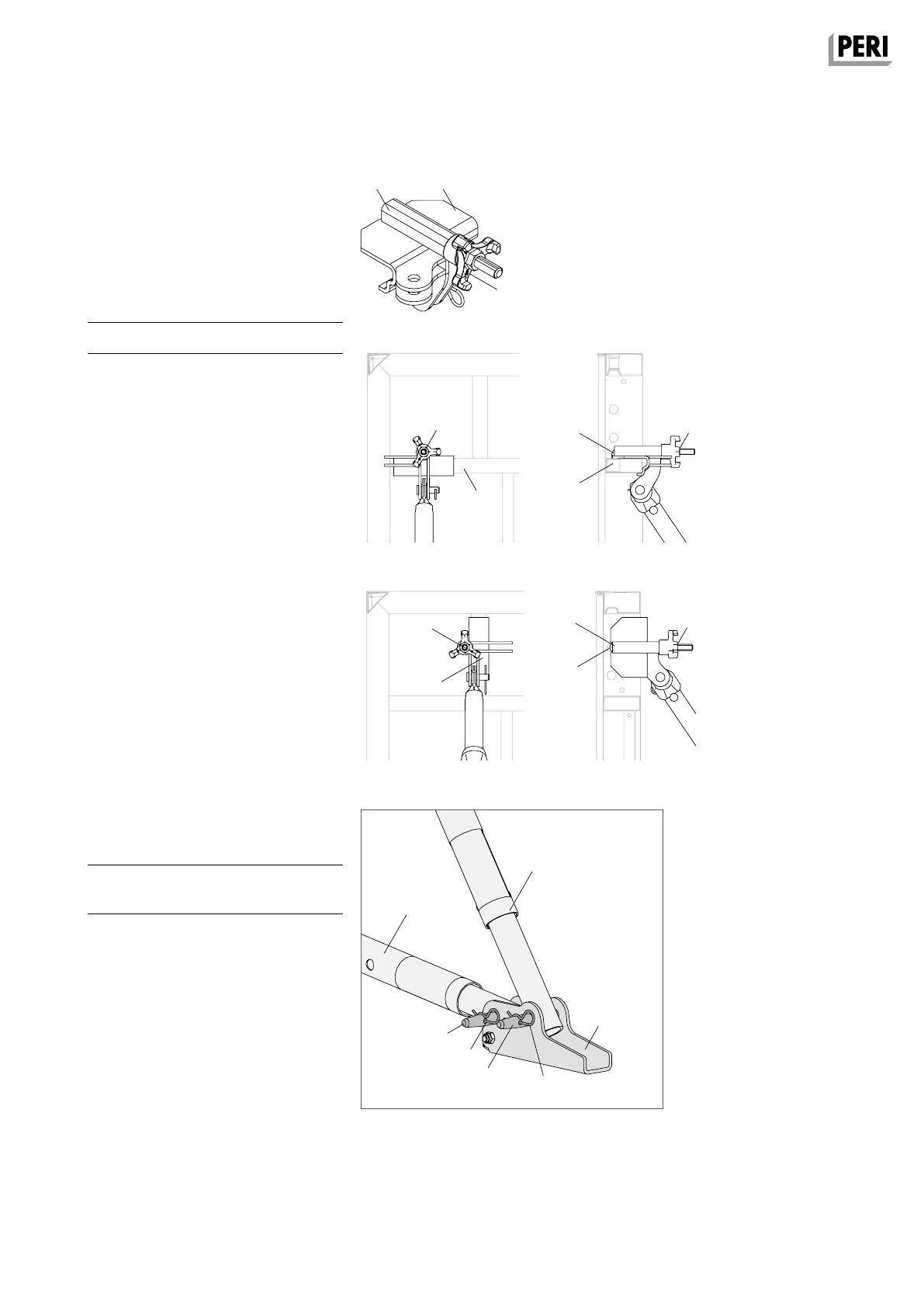

Brace Connector TRIO
Push-Pull Props and Kickers are
attached to the panel with the Brace
Connector TRIO. Connecting to both
horizontal and vertical panel struts is
possible.
Pos. Component
41 Brace Connector
(Fig. A6.01)
Assembly
1. Attach the Brace Connector (41) to
the panel strut (10.3) so that the Hook
Tie (41.1) is linked into a connecting
hole (10.4).
2. Tighten the Brace Connector by
means of a Triple Wingnut (41.2).
(Fig. A6.02 + A6.03)
Connecting to horizontal panel strut
(Fig. A6.02)
Connecting to vertical panel strut
(Fig. A6.03)
Fig. A6.02
Fig. A6.03
A6 Push-Pull Props
Base Plate RS
Pos. Components Item no.
40 RS Push-Pull Prop according to size
47 Base Plate-3 RS 126666
Assembly
1. Fix the bottom part of the Push-Pull
Prop (40) – here as Kicker – with bolts
(47.1) and cotter pins (47.2) to the
back of the Base Plate (47).
2. Fix the bottom part of another Push-
Pull Prop – here as Push-Pull Prop –
with bolts (47.3) and cotter pins (47.4)
to the Base Plate (47).
(Fig. A6.03)
Fig. A6.03
Fig. A6.01
47.4
47.3
47.2
47.1
