TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A11 Length compensations
TRIO Filler Profile TPP
Compensations from 20 to 36 cm
Consisting of:
– Filler Profile TPP (53) (2x)
– Plywood filler 21 mm (51)

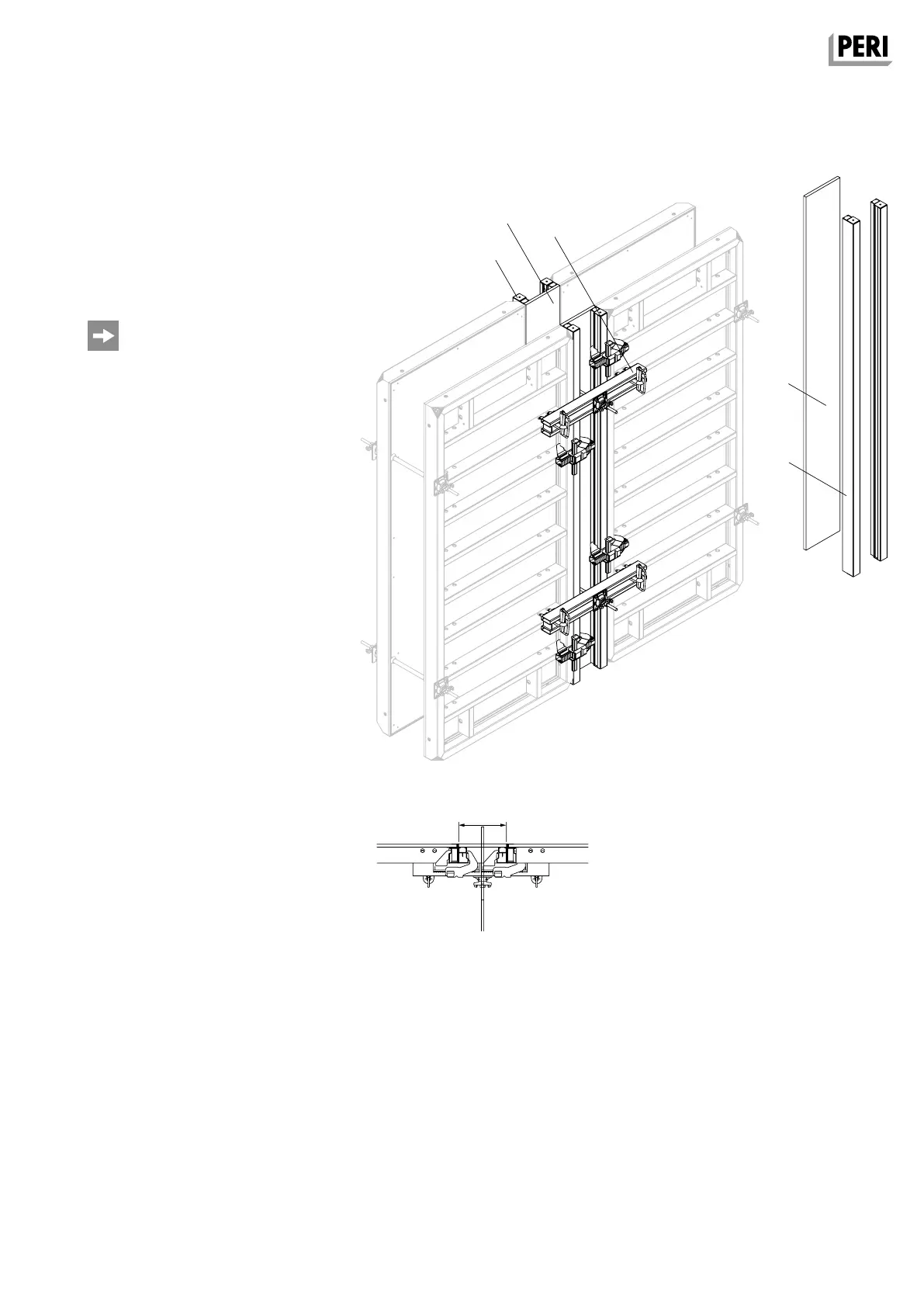

(Fig. A11.03a)
Anchoring is to take place so that the
anchor forces are transferred in the
middle through the Compensation
Waler TAR 85 (23) to the adjacent panel.
(Fig. A11.03b)
Installation
(Fig. A11.03)
Fig. A11.03
Fig. A11.03b
Fig. A11.03a
max. 36
