15
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A2 Standard operating sequence
Assembling the primary
formwork
– Secure panels against tipping
over and wind forces!
– Secure Push-Pull Props first, and
then release crane lifting gear!
– Follow Instructions for Use for
Lifting Hook MAXIMO 1.5 t!
1. Mount Brace Connector TRIO on the
horizontal panel, see Section A6.
2. Mount Push-Pull Prop, see Section A6.
– on the first panel: 2 Push-Pull
Props.
– second panel onwards: 1 Push-Pull
Prop. (Fig. A2.01)
3. Mount Lifting Hook MAXIMO 1.5 t.
4. Attach the 2-sling lifting gear.
5. Transport panel to place of operation
by crane. (Fig. A2.02)
6. Secure Push-Pull Props,
see Section A6.
7. Release crane lifting gear.

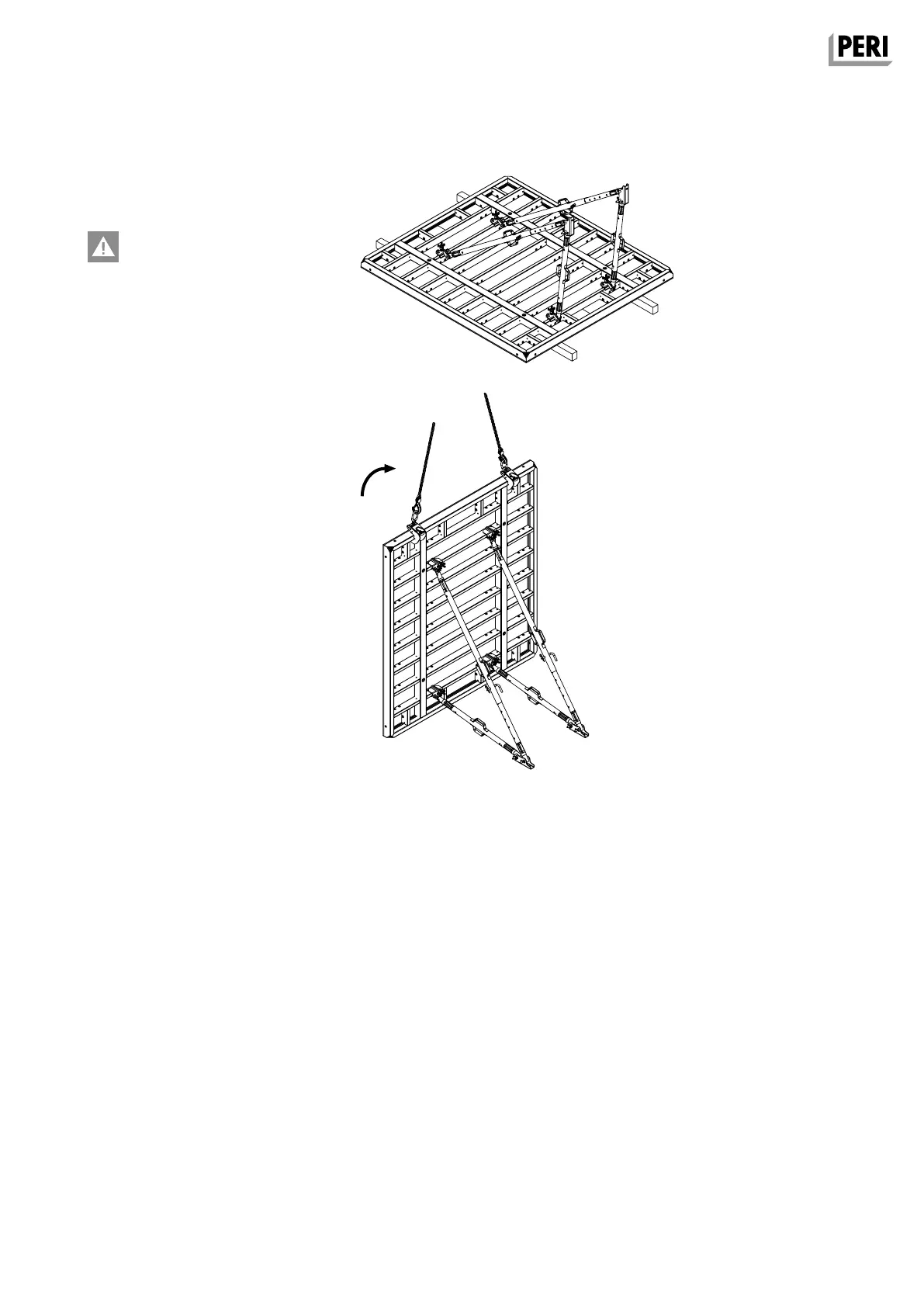

Fig. A2.01
Fig. A2.02
