Mounting the closing
formwork
with working and concreting
platform
Install top anchor first.
Release 2-sling lifting gear when all
anchors have been installed.

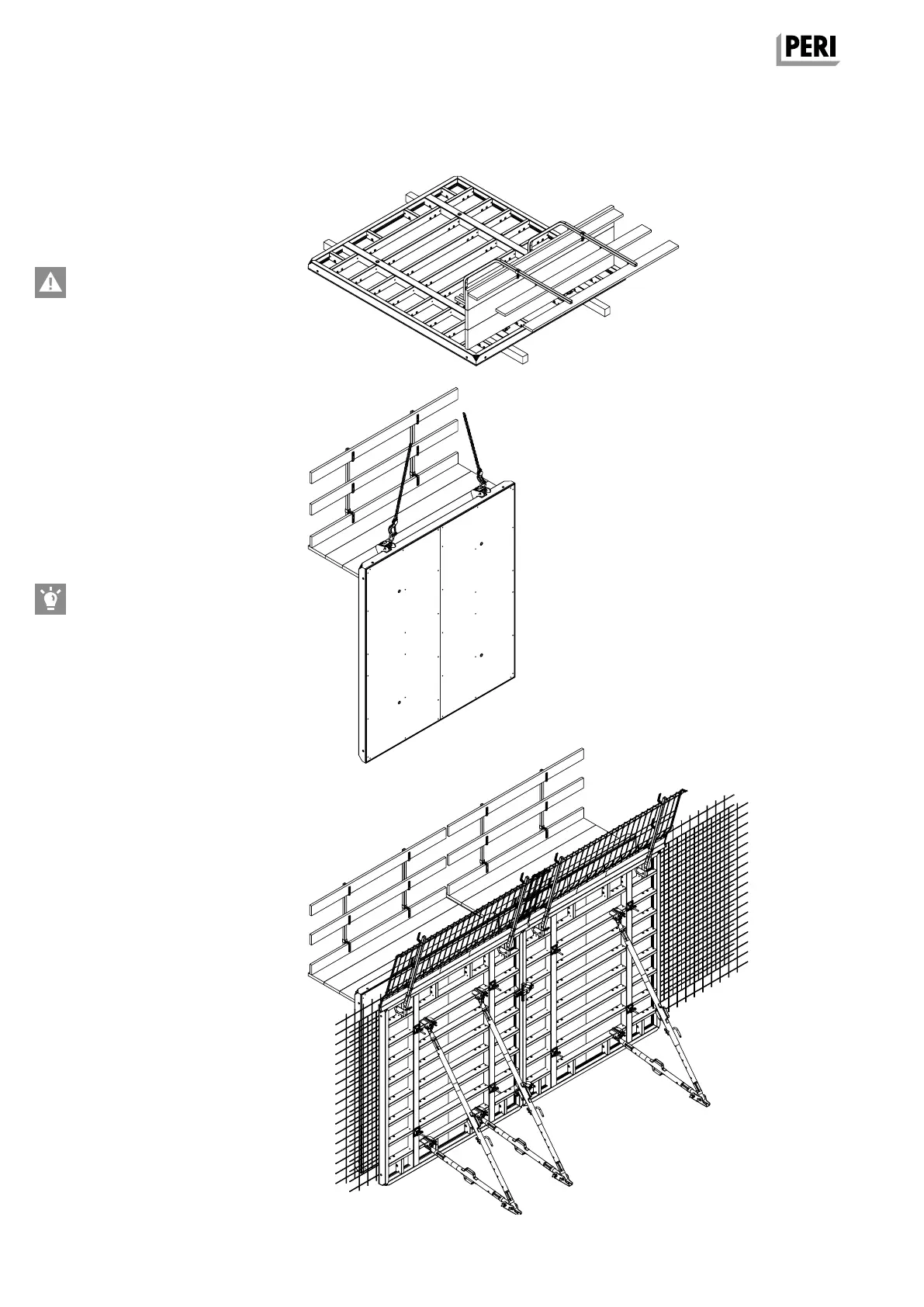

1. Mount the working and concreting
platform on the horizontally-posi-
tioned panel, see Section A13.
(Fig. A2.03)
2. Mount Lifting Hook MAXIMO 1.5 t.
3. Attach the 2-sling lifting gear.
4. Erect panel. (Fig. A2.04)
5. Transport panel to place of operation
by crane.
6. Mount anchors, see Section A5.
7. Release the 2-sling lifting gear.
Forming from the external or
internal corner in the direction
of the compensation.
Fig. A2.03
A2 Standard operating sequence
Concreting
From a working scaffold.
(Fig. A2.05)
Fig. A2.05
Fig. A2.04
