TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A12 Stopend formwork
Perm. fresh concrete pressure 60 kN/m²
Wall thicknesses ≤ 40 cm
Perm. fresh concrete pressure 80 kN/m²
Fig. A12.08 Fig. A12.09

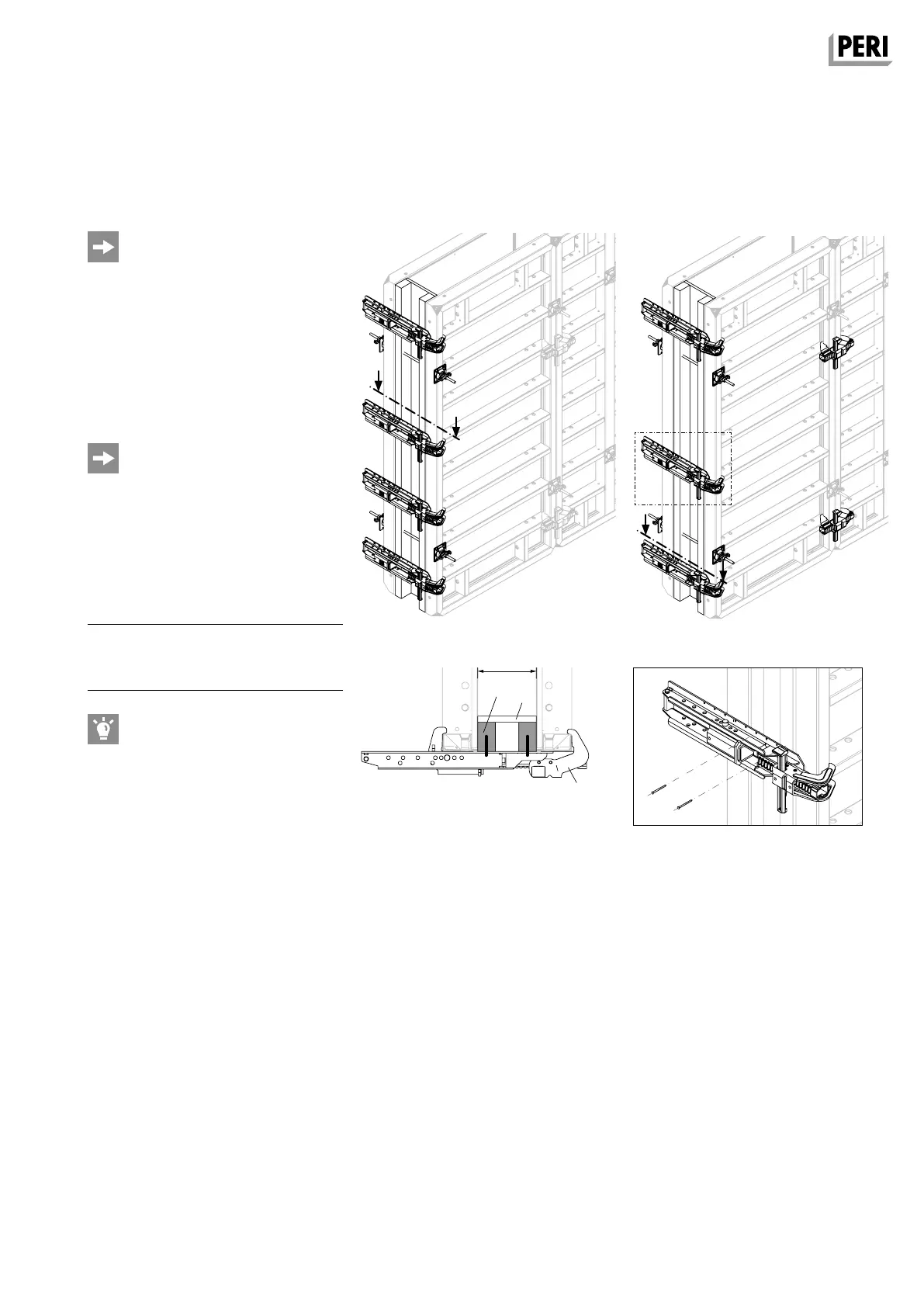

Stopend Waler
height 270
The fresh concrete pressure of the
stopend formwork is transferred to the
TRIO Panels by means of the Stopend
Walers.
Wall end with Panels 270 x width
Valid for TRIO Panels:
270 x 30/45/60/90/120/240
Shown: 270 x 120
Arrangement of the Stopend Waler:
Wall thickness ≤ 40 cm for: perm. fresh
concrete pressure 80 kN/m²
(Fig. A12.08 + A12.08a)
Perm. fresh concrete pressure 60 kN/m²
(Fig. A12.09 + A12.08a)
Pos. Components Item no.
18 Filler timber
48 Stopend Waler MX 15-40 127732
51 Plywood filler 21 mm
Fix 3 x Stopend Walers with 2 nails
respectively thus ensuring that the
filler timber does not slide inwards.
(Fig. A12.09a)
Section A-A
WD 15 to WD 40 (Fig. A12.08a)
A-A
Fig. A12.08a
15≤WD≤40
Fig. A12.09a
Detail “X”
A
A
