TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A14 Extensions
Extensions up to h = 5.40 m
– Permissible load-bearing capacity
of the Lifting Hook 1.5 t:
– With steel panels: 1.5 t
– With aluminium panels: 750 kg.
– Follow Instructions for Use:
Lifting Hook MAXIMO 1.5 t!
Panel connections
With height extension units < 5.40 m,
the Alignment Coupler BFD (20) is used
on the panel joints.

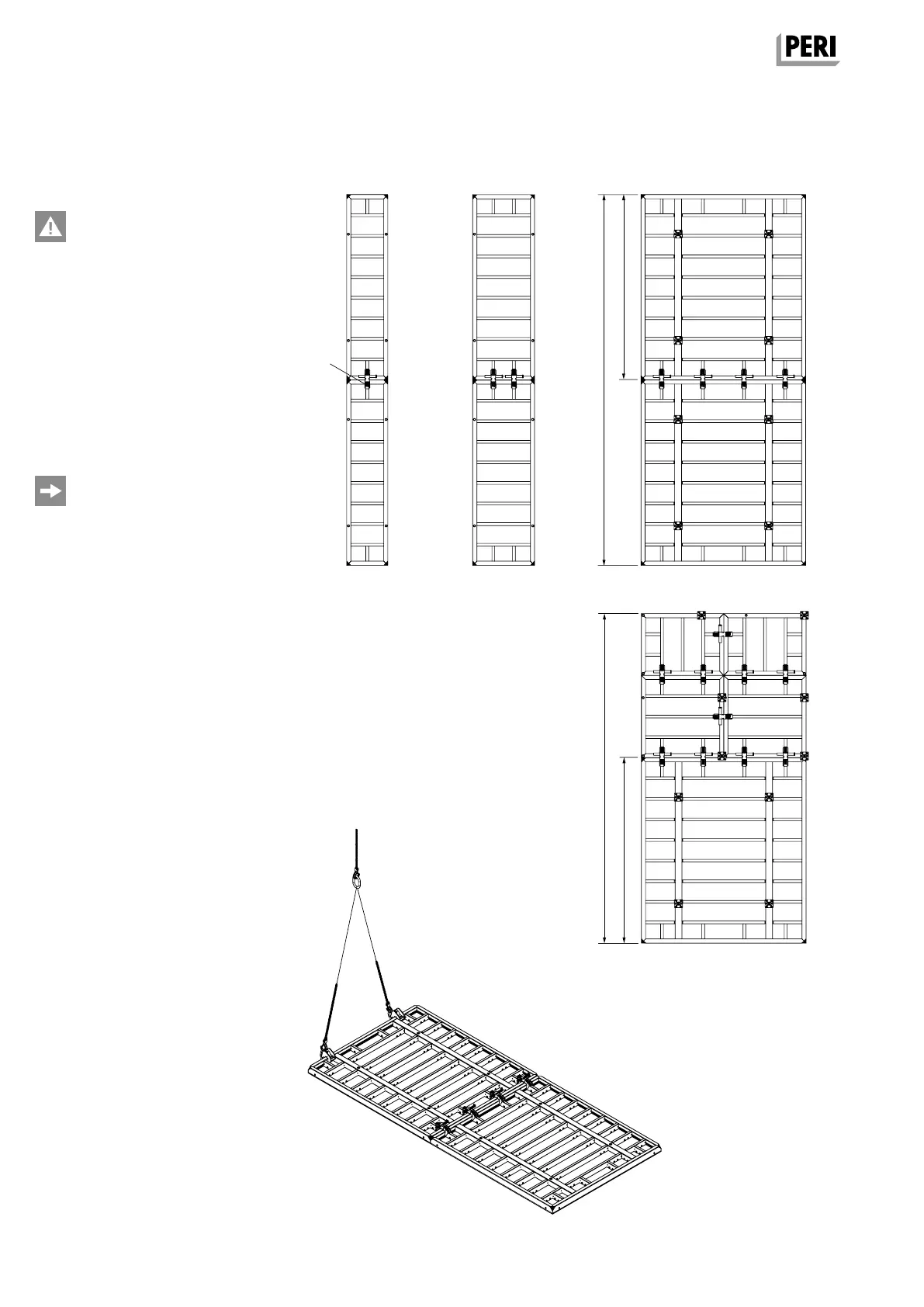

(Fig. A14.01a – d)
For extension possibilities, number and
arrangement of Alignment Couplers
BFD, Compensation Walers TAR 85
and formwork ties, see TRIO poster.
Pre-assemble extension units in a
horizontal position, with the formlining
facing downwards, on a flat assembly
surface. Place timbers or the like
underneath.
Erection by crane.
(Fig. A14.02)
Fig. A14.02
Fig. A14.01d
Fig. A14.01cFig. A14.01bFig. A14.01a
TR 30 / 60 / 72 TR 90 / 120 TR 270 x 240
≤ 540
