TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
B3 TRIO Structure
TRIO Structure Panels
TRIO Structure has been developed for
special concrete surfaces, see also the
brochure on TRIO Structure.
The TRIO Panel is delivered complete
with a fixing board (10.9). It can be
covered with profiled boards (10.8)
(board structure).

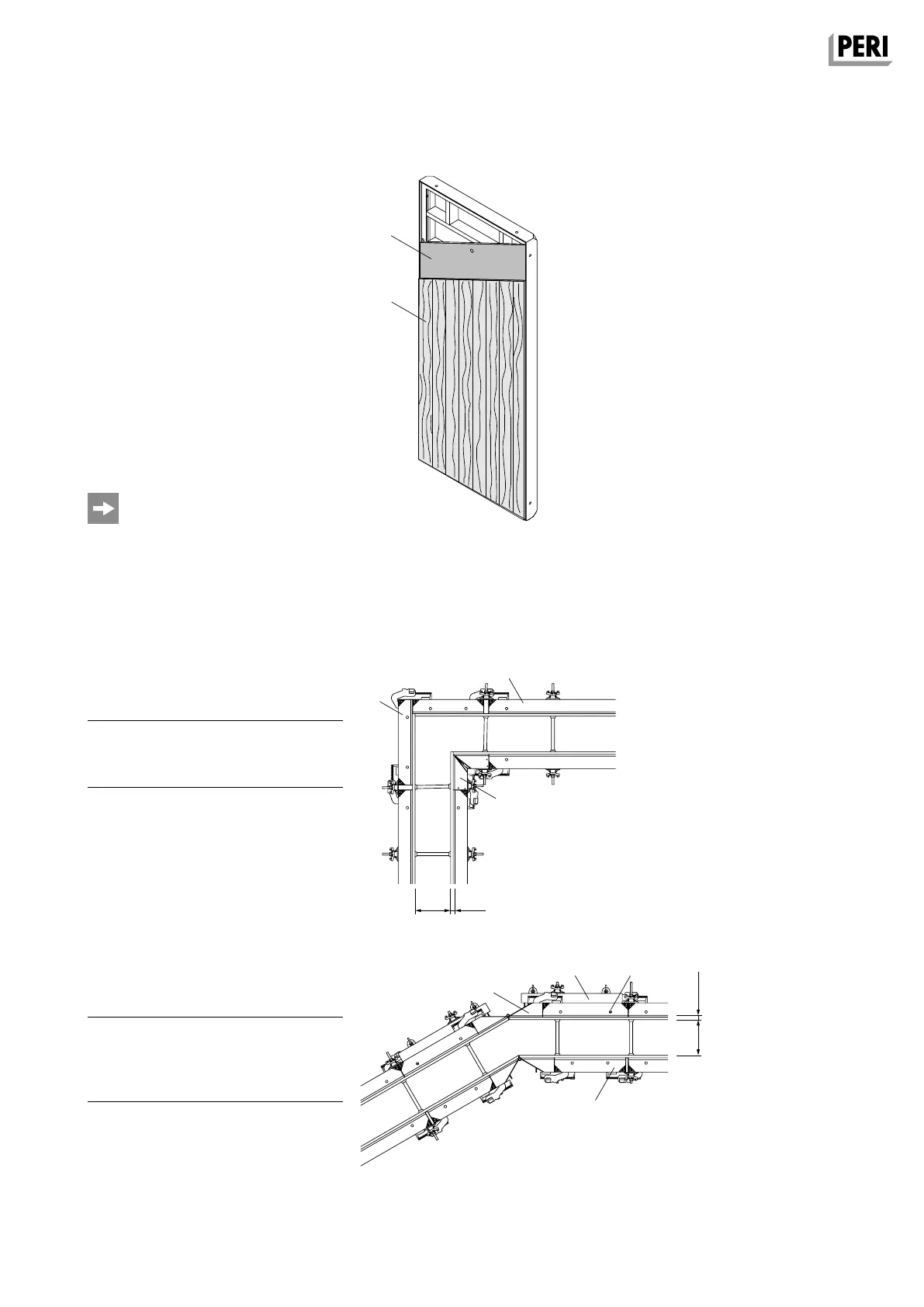

(Fig. B3.01)
When using TRIO Struture Panels, the
same formwork guidelines apply as for
the TRIO 270 Steel.
It can be fully combined with TRIO 270
and TRIO 330 Steel.
Assembly of profiled boards
Fixing can be done from either the front
or the back.
Fig. B3.01
Corner 90° consisting of:
Pos. Components
77 Panel TSM 72
78 Panel TS 60
79 Corner TSE
(Fig. B3.02)
Corner 135° consisting of:
Pos. Components
23 Compensation Waler TAR 85
77 Panel TSM 72
78 Panel TS 60
80 Articulated Corner TSGE
(Fig. B3.03)
Fig. B3.03
Fig. B3.02
10.9
10.8
TSM 72
TS 60
2,1
TSE
TSM 72
TSM 72
TS 60
TS 60
2,1
TSGE
