Peri Trio - Putting Loads into the Stacking Device

13
1
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Storage and transportation
Putting loads into the
stacking device
– Ensure transport units are
correctly stacked and secured.
– Follow Instructions for Use for
pallets and stacking devices.
– For reasons of safety, the panels
should never be treated with a
concrete release agent immediately
before transport.
Stacking devices (1)
– are suitable for lifting by crane or
forklift,
– can also be moved with the PERI
Pallet Lifting Trolley,
– can be lifted both from the
longitudinal and front sides.
1. Place the first panel with the
formlining facing downwards on the
rectangular tubes (1.2). (Fig. A1.10)
2. Place the second panel with the
formlining facing upwards in the
stacking device. (Fig. A1.11)
J The vertical support plate (1.1)
positions the panel and now allows
safe transportation of the panels.
3. Place other panels with the formlining
facing upwards until the maximum
number of panels has been reached.
Use only one
load-bearing point.

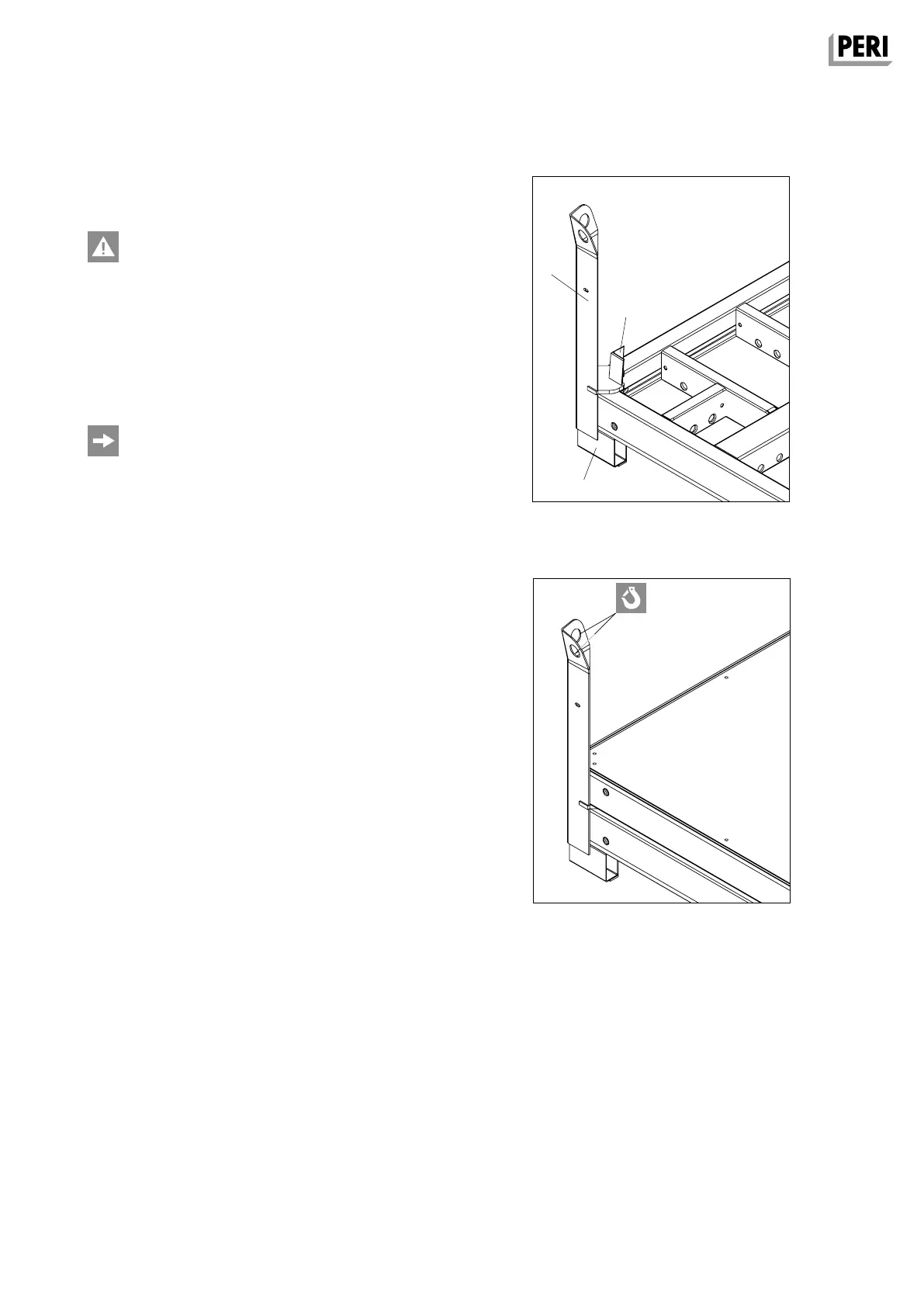

Fig. A1.10
Fig. A1.11
1.1
1.2
