TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A16 Circular structures
Polygonally formed
TRIO Panels
Circular structures can be formed with
TRIO by using the corresponding panel
widths and filler timber. See table
below.
Anchoring takes place by means of filler
timber.
– In order that the effectiveness of the
Alignment Coupler BFD (20) is not im-
paired, the panels may note deviate
from the centre more than 2.6°.

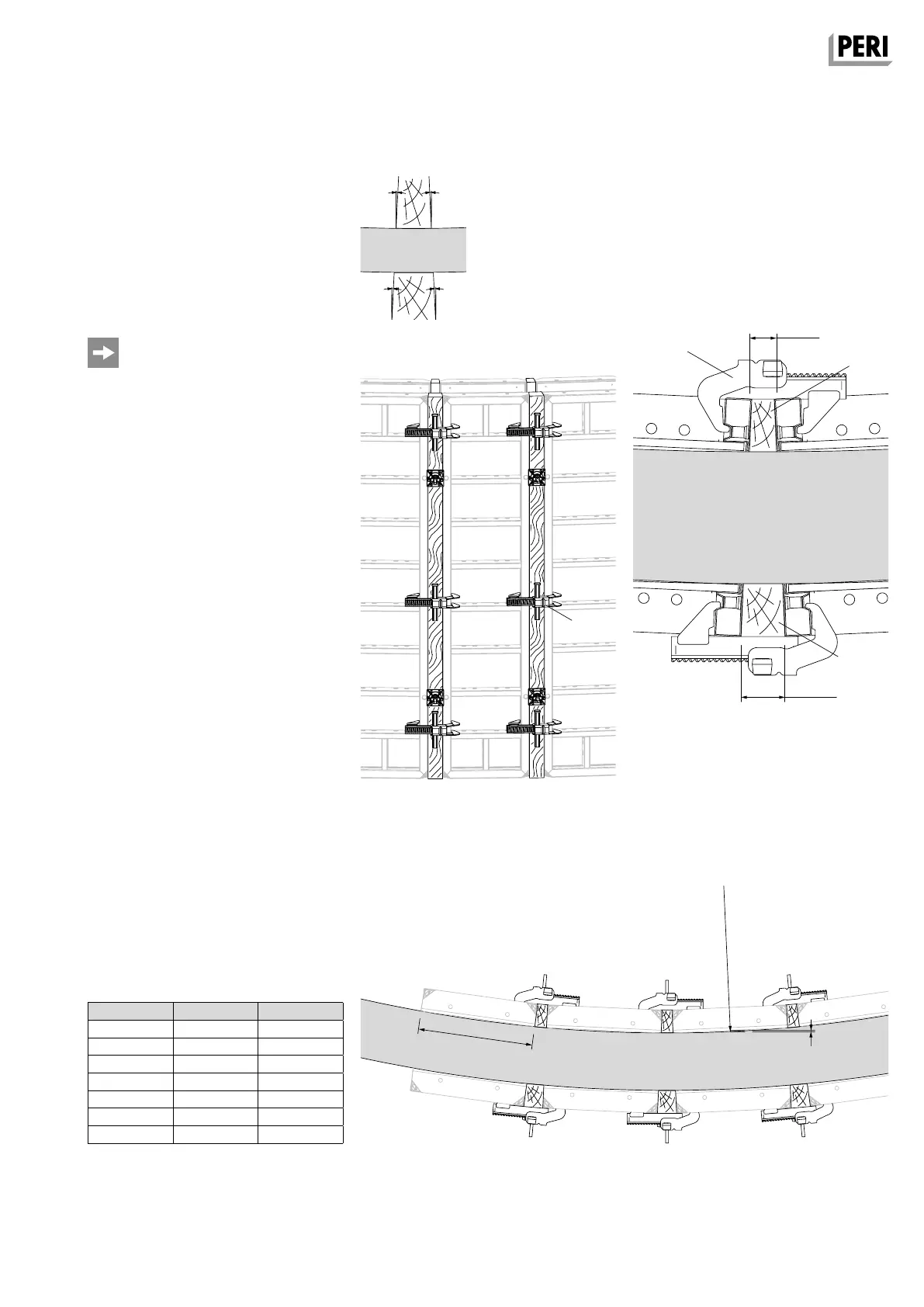

(Fig. A16.01)
– Filler timber width of the inner
compensation (50) = min. 4 cm.
– Filler timber width of the outer
compensation (50) = max. 10 cm.
(Fig. A16.02)
– Do not set the Alignment Coupler
BFD (20) on the struts.
(Fig. A16.03)
Fig. A16.03
Fig. A16.01
Fig. A16.02
2,6°
2,6°
2,6°2,6°
R min
B
S
TR 30 3.55
TR 72 8.25
TR 60 6.90
TR 90 10.25
TR 120 13.60
TR 240 26.95
TR 270 30.30
R min [m] S [mm]
min. 4 cm
max. 10 cm
B
