Peri Trio - Stopend panel without water bar

37
56
57
56
57
20
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A12 Stopend formwork
56.1
Stopend panel without
water bar
H = 2.70 m and 1.20 m
Required components:
– 2 x Stopend Panel TRIO AT 3/AT 5
(56) for approx. 2.5 cm/5 cm concrete
cover
– 1 x Stopend Panel TRIO MT (57)
(Fig. A12.03)
Assembly
1. Position primary formwork.
2. Attach Stopend Panel TRIO AT (56)
to the primary formwork using the
Alignment Coupler BFD (20).
3. Install first row of reinforcement.
4. Position the Stopend Panel TRIO
MT (57).
5. Install second row of reinforcement.
6. Attach Stopend Panel TRIO AT to the
closing formwork with the Alignment
Coupler BFD.
7. Position the closing formwork;
thereby insert the Stopend Panel
TRIO AT in the Stopend Panel
TRIO MT.
8. Close formwork, and insert ties to
secure.
(Fig. A12.04)
The rubber lip (56.1) of the Stopend
Panel TRIO AT allows a reinforcement
thickness of 16 mm.

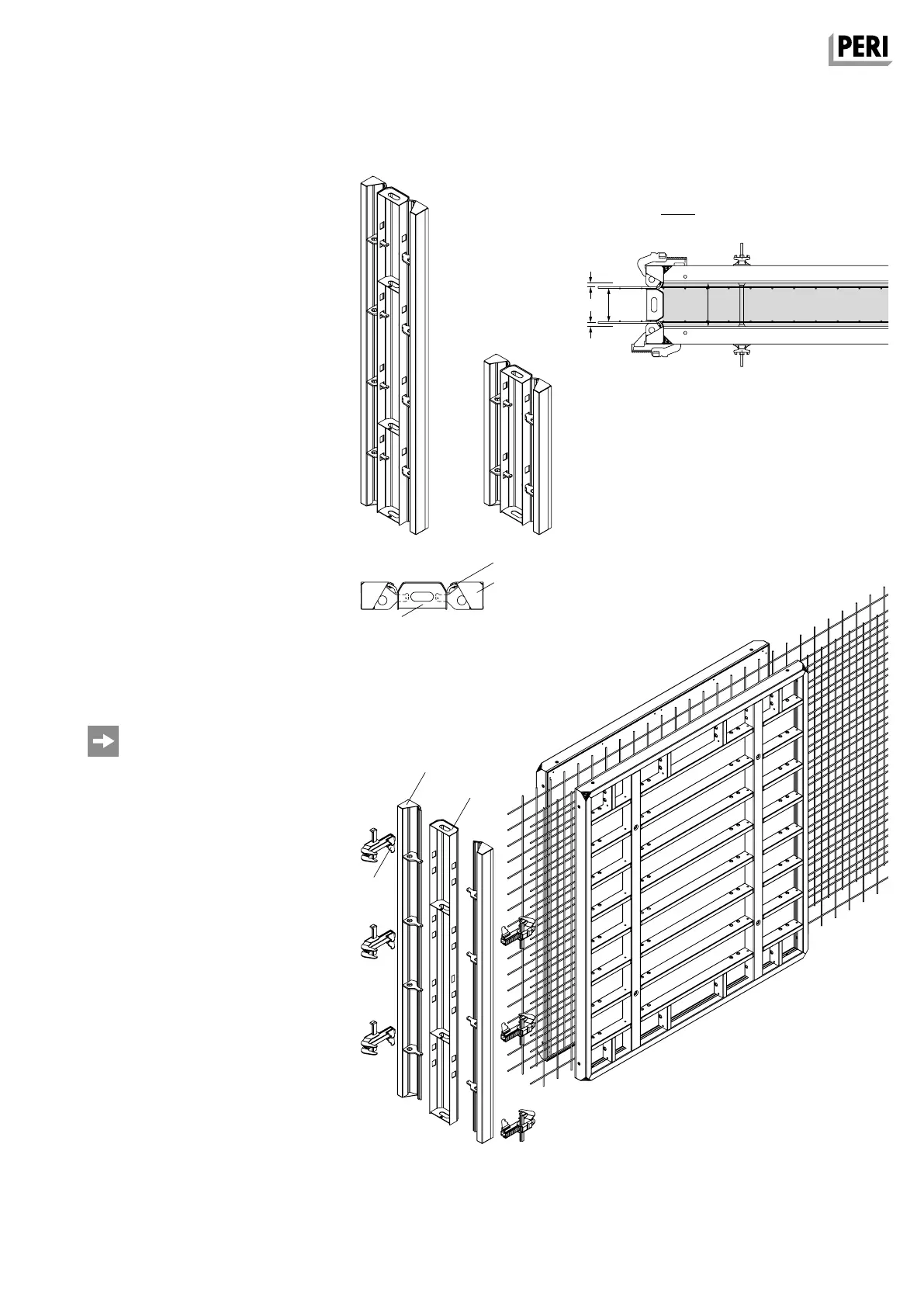

Fig. A12.03
c = - Ø
d - b
2
Concrete cover c:
b
c c
b
c
d
Fig. A12.04
Reinforcement
