TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A5 Tie Points
Inclined anchorage with
DW 15
– Secure panels against lifting!
– Inclined anchorage is possible on both
verticallly and horizontally-positioned
panels.

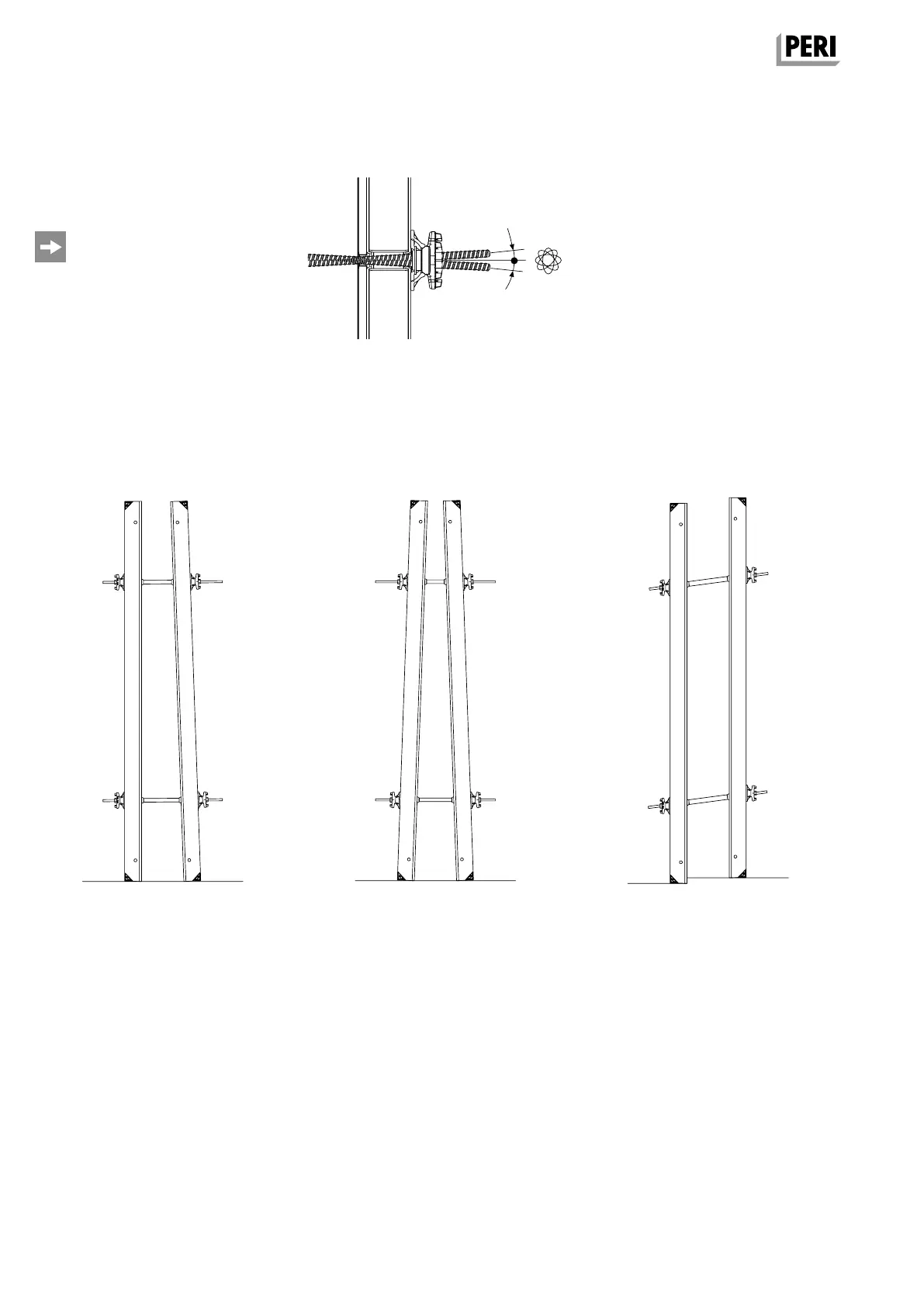

The conical-shaped tie hole allows in-
clined anchorage on all sides of up to 3°.
(Fig. A5.05)
This results in additional areas of
application:
(Fig. A5.06 + A5.07 + A5.08)
Inclined on one side
max. 3°
Inclined on both sides
max. 2 x 3°
Height offset
max. 1 cm per 10 cm wall thickness
Fig. A5.05
3°3°
Fig. A5.06
Fig. A5.07
Fig. A5.08
