TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A13 Working and concreting platforms
Guardrail Post Holder TRIO
– Assembly is carried out on the
horizontally-positioned panel!
– Connection is only possible to
vertical panel struts!
Guardrails are mounted using the TRIO
Guardrail Post Holder on the opposite
side of the concreting platform.
Required components:
– Guardrail Post Holder TRIO (65)
– Guardrail Post HSGP-2 (66)
(Fig. A13.22 + A13.22a)
Technical data
Max. width of influence 1.35 m
Assembly
1. Hook in Guardrail Post Holder TRIO
(65) into the connecting holes of the
vertical struts of the panels.
2. Secure with cotter pin.
3. Insert Guardrail Post HSGP-2 (66).
4. Install ladder safety cage and secure.
5. Erect with the crane.
(Fig. A13.23)
When erecting the panel, make sure
that the ladder safety cage is not
damaged by the lifting gear.
With extended formwork units, the
guardrails are mounted as part of the
pre-assembly process.
When striking, do not place the panel
on the Guardrail Post Holder TRIO (65).

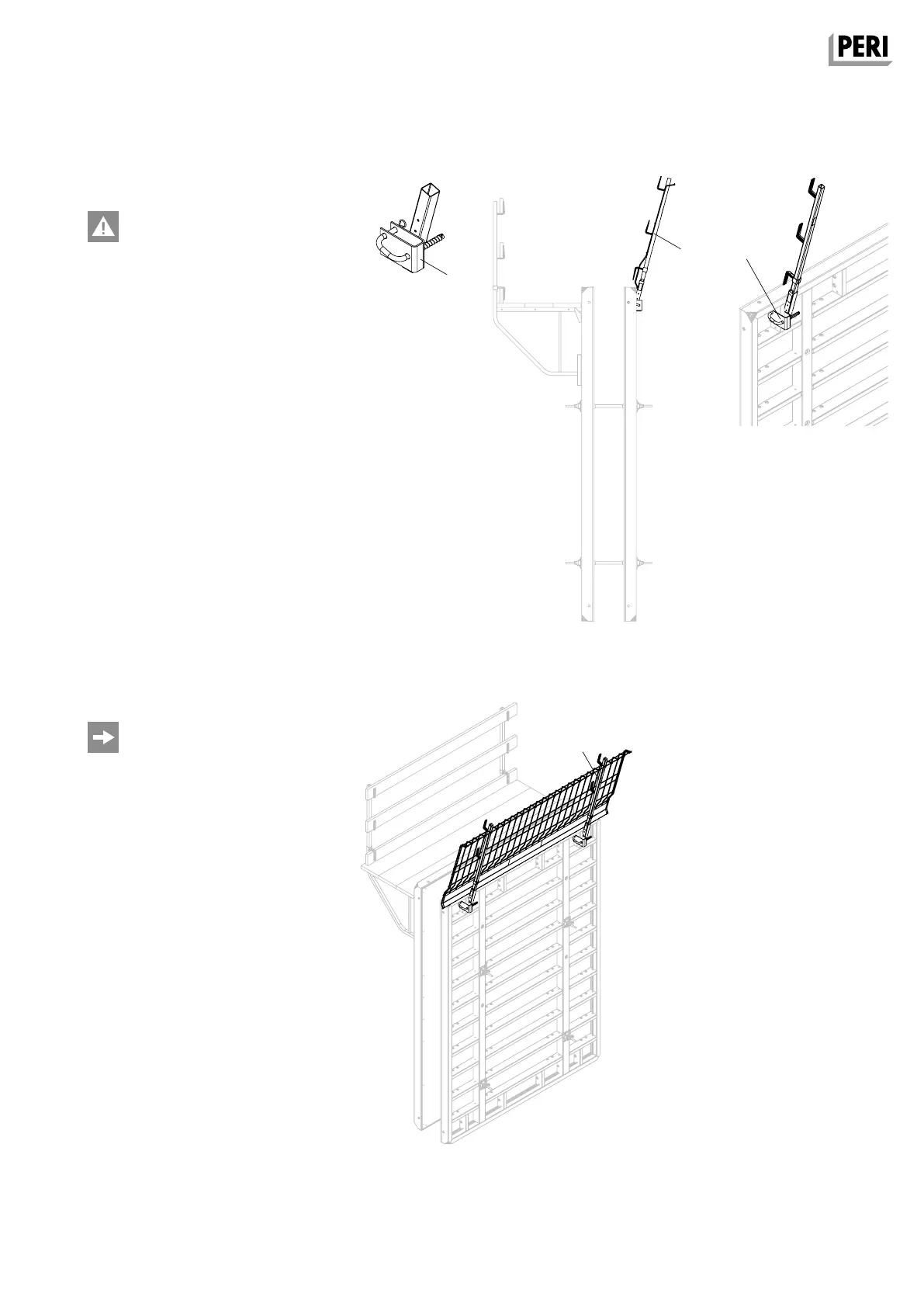

Fig. A13.22
