B1 TRIO 330
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Extensions up to h = 8.10 m
– Permissible load-bearing capacity
of the Lifting Hook MAXIMO 1.5 t:
– With steel panels: 1.5 t.
– With aluminium panels: 750 kg.
– Follow Instructions for Use:
Lifting Hook MAXIMO 1.5 t!
Panel connections:
With extension heights > 5.40 m,
the Alignment Coupler BFD (20) and
Compensation Waler TAR 85 (23) are
used on the panel joints.
(Fig. B1.08a + B1.08b + B1.08c)
For extension possibilities, number and
arrangement of Alignment Couplers
BFD, Compensation Walers TAR 85 and
formwork ties, see TRIO poster 330.
Pre-assemble extension units in a
horizontal position, with the formlining
facing downwards, on a flat assembly
surface. Place timbers or the like
underneath.
When using the Panel TR 30 as the
topmost extension panel, the top tie
point is left unused.

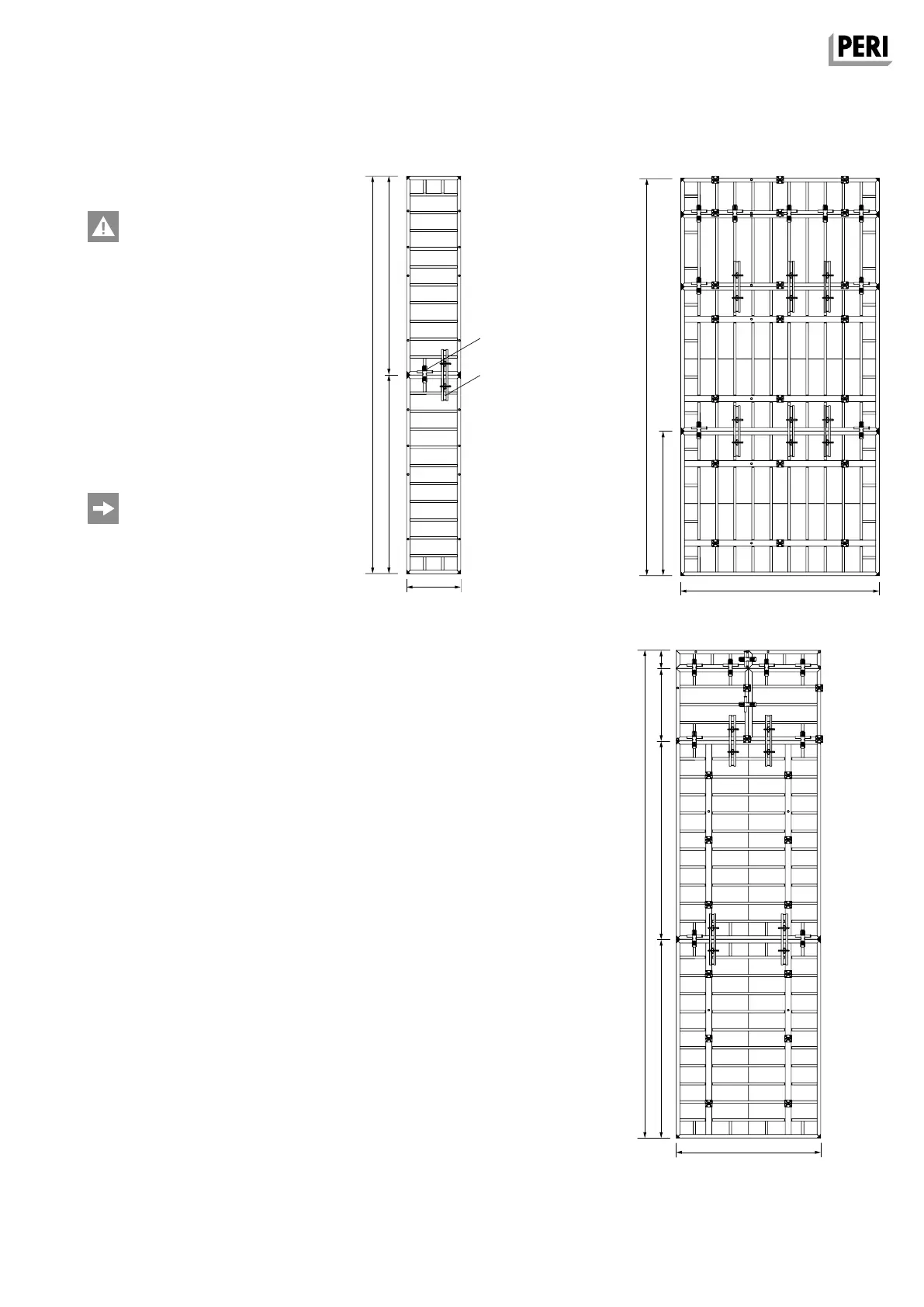

Fig. B1.08bFig. B1.08a
Fig. B1.08c
