TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Storage and transportation

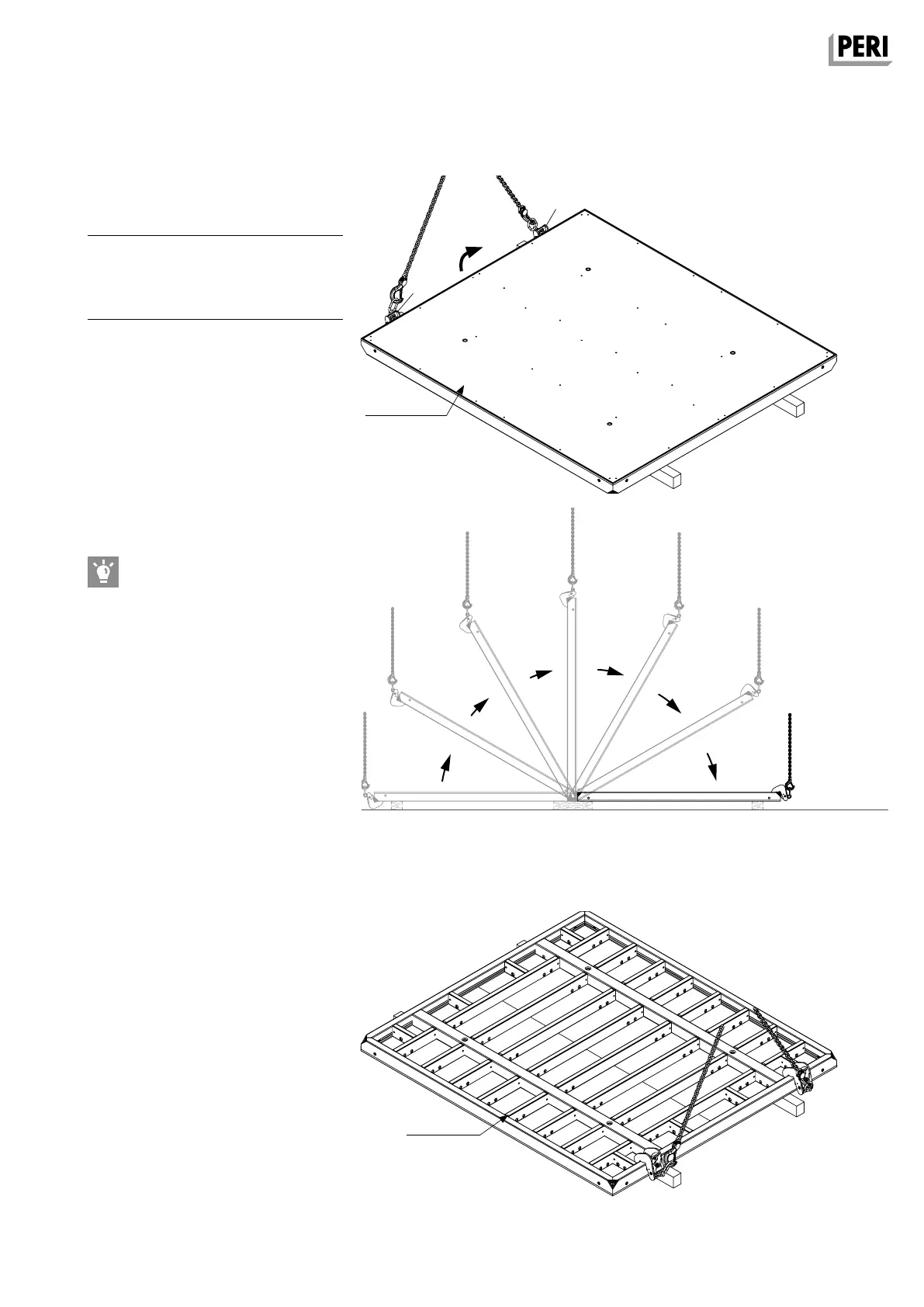

Fig. A1.06
Fig. A1.07
Fig. A1.08
Formlining side
Frame side
Turning panels individually
Pos. Lifting accessory Item no.
10 Panel TR/4 according to size
11 Lifting Gear Combi MX 117321
12 Lifting Gear MX 117322
13 Lifting Hook MAXIMO 1.5 t 115168
1. Attach lifting hook (13) to the panel –
2x. (Fig. A1.06)
2. Turn panel, i.e. pull upwards while
suspended on the crane using the
lifting hook until the panel is in a
vertical position, and then slowly
lower onto the timbers with the
formlining facing downwards.
(Fig. A1.06 + A1.07 + A1.08)
Ensure that the chain is always
tensioned!
The bottom panel is already placed in
position with the formlining facing
downward and does not have to be
turned.
