TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration

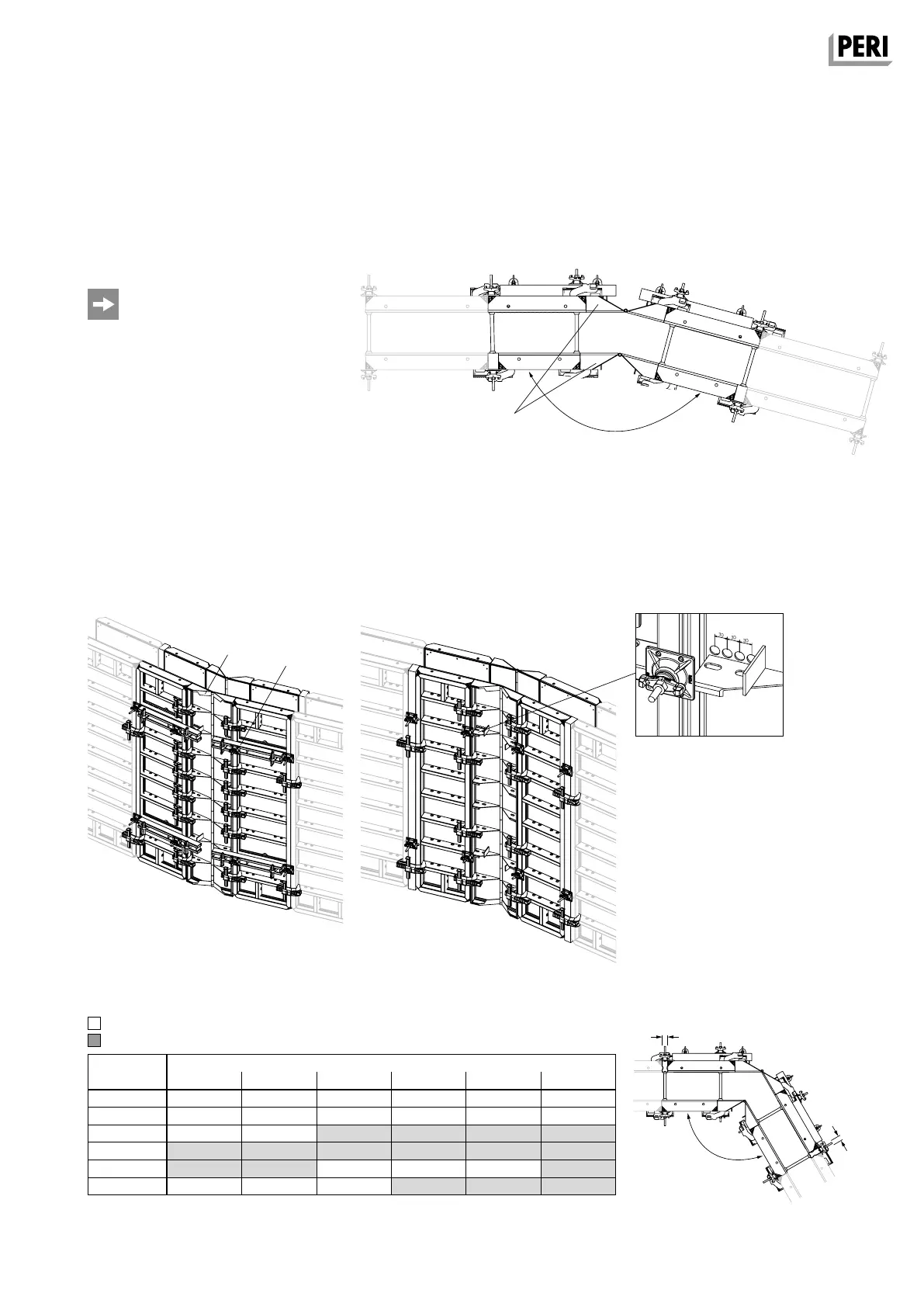

A8 Oblique angles
x
x
Obtuse and acute-angled
corners
The Articulated Corner TGE (9) is used
to form angles of 75° and more.
(Fig. A8.01)
Alignment Couplers BFD are to be
mounted from bottom to top on both
external and internal formwork.
For the number of Alignment Couplers
BFD for other panel heights, see TRIO
Poster.
Internal formwork
Only Alignment Couplers BFD are
required on the internal formwork.
(Fig. A8.03 + A8.03a)
Table
Required compensation x [cm]
Angle
165°
150°
135°
120°
105°
75°
9.2 8.5 7.8 7.2 7.1 6.5
0.9
5.2
12.0
1.9
12.2
40
1.9
3.6
9.7
1.5
7.0
36
2.2
3.2
9.1
1.9
5.7
35
3.5
1.1
6.2
5.8
0.8
30
4.9
1.0
3.4
8.4
7.3
25
6.2
3.1
0.5
4.6
13.8
20
Wall thickness [cm]
min. 75°
max. 165°
Fig. A8.01
Fig. A8.02 Fig. A8.03

TRM 72
TR 60
Internal compensation
External compensation
α
External formwork
The external formwork is stabilised with
the Compensation Waler TAR 85 (23).
(Fig. A8.02)
Fig. A8.03a
