TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
B1 TRIO 330
Obtuse and acute-angled
corners

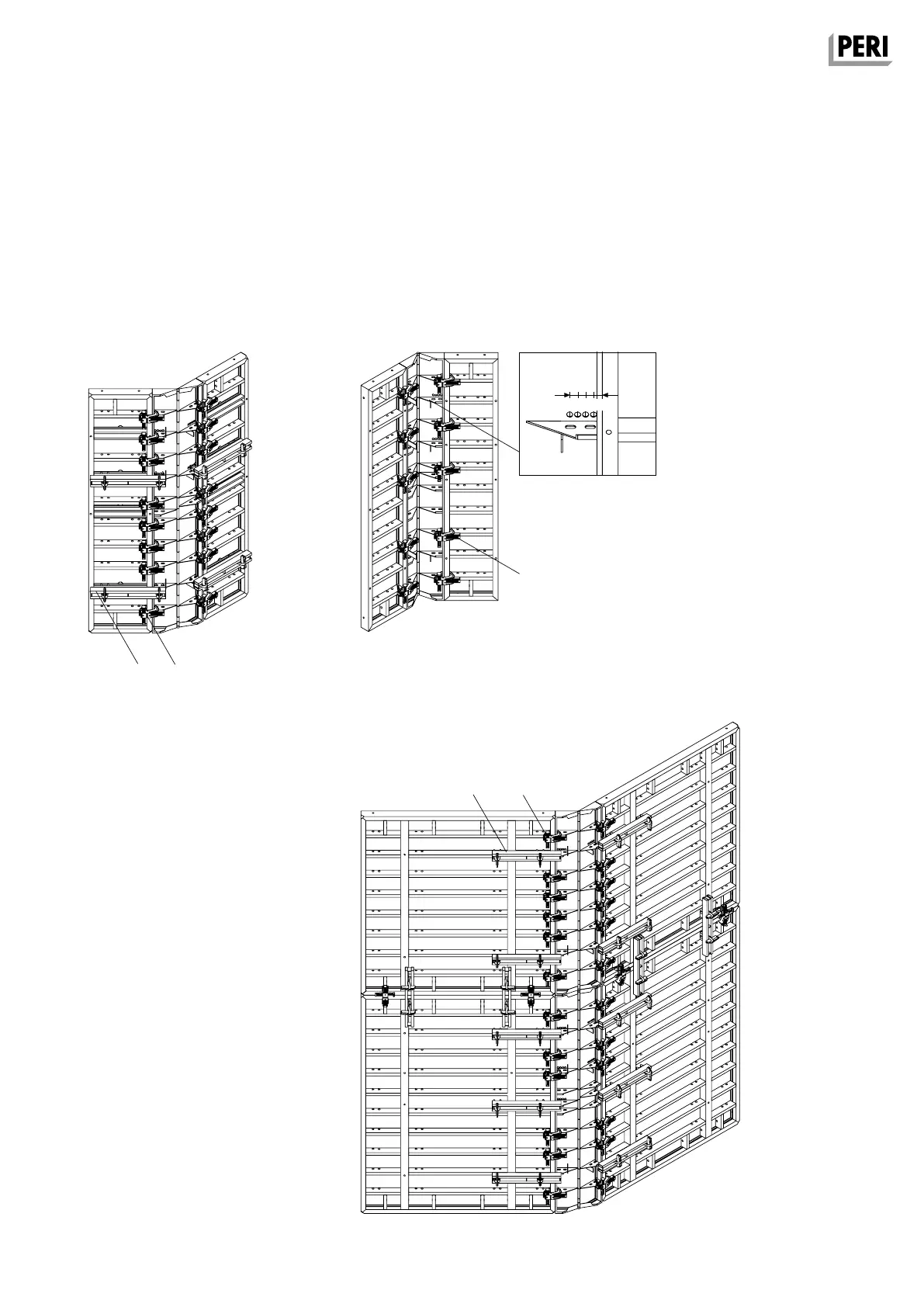

Outside
Panel connection per side with
8 x Alignment Coupler BFD (20) and
2 x Compensation Waler TAR 85 (23).
(Fig. B1.04)
Fig. B1.06
Inside
Panel connection per side with
5 x Alignment Coupler BFD (20).
(Fig. B1.05)
Extension h = 330 + 270
Height 330
Panel connection per side with
6 x Alignment Coupler BFD (20) and
3 x Compensation Waler TAR 85 (23).
Height 270
Panel connection per side with
6 x Alignment Coupler BFD (20) and
2 x Compensation Waler TAR 85 (23).
(Fig. B1.06)
Fig. B1.05Fig. B1.04
