Peri Trio - Bracket System - MAXIMO MXK; Scaffold Bracket MXK-RS

51
60
68
10 - 01 MXK Aufgestockt H=5,40 Konsole
MAXIMO MXK Konsolensystem AuV
Uwe Jansen
28.10.2016
1
Ordner
R
Bezeichnung
Art-Nr.
Name
Datum
Blatt
C:\Centrio\DR-15-070494_0.idw
Maßstab
1:50
DR-15-070494
Vers.Zeichnung-Nr.
0
68
59

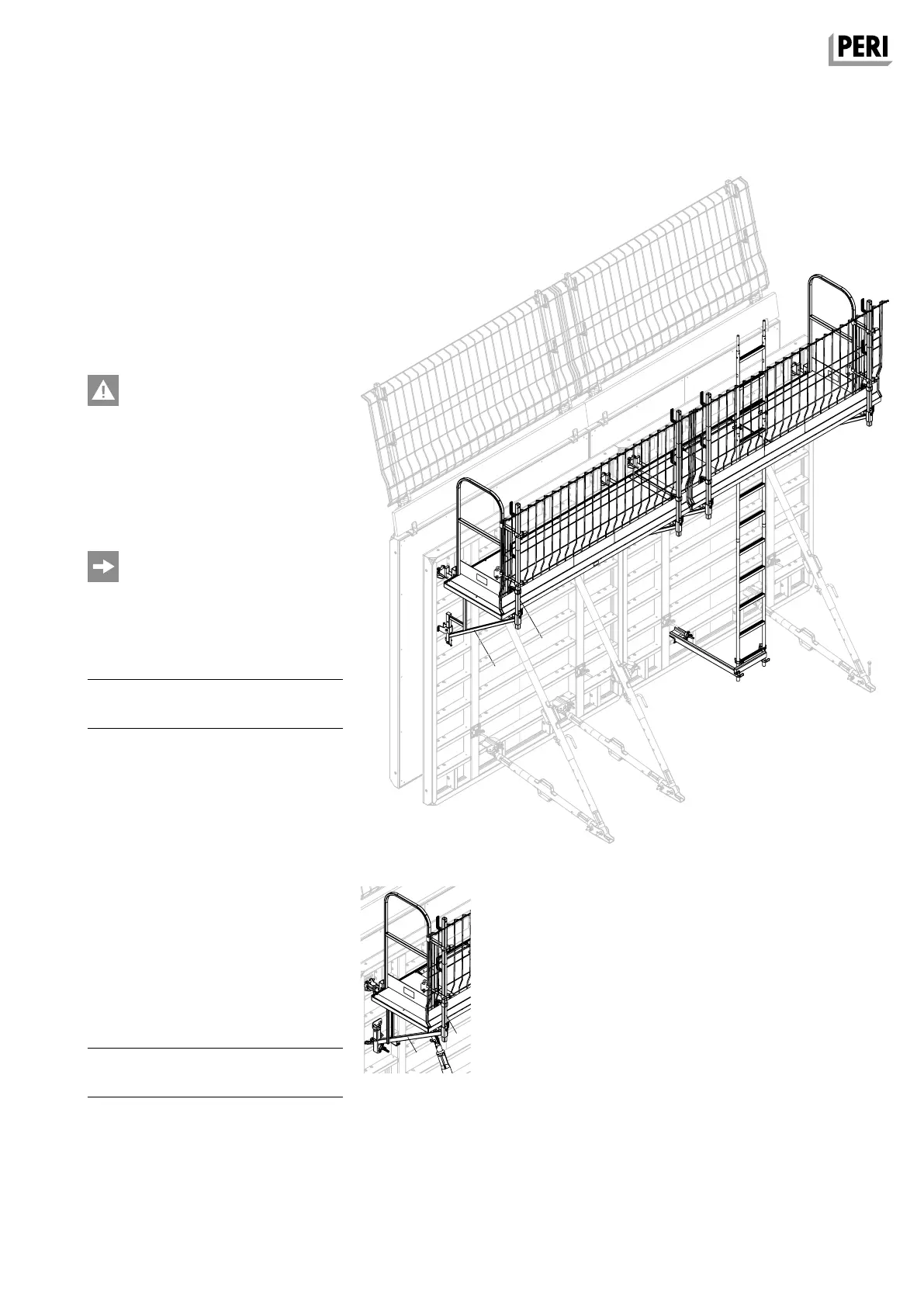

Fig. A13.19
Bracket System –
MAXIMO MXK
A concreting platform is installed on the
formwork using the Scaffold Bracket
MXK (60).
Technical data
– Perm. load: 150 kg/m² Load Class 2
according to DIN EN 12811-1.
– Secure planking.
– Decking components and guard-
rails must be positioned so that
any movement is prevented.
– Follow Instructions for Assembly
and Use for the MAXIMO MXK
Bracket System.
Assembly: see Instructions for
Assembly and Use for the MAXIMO
MXK Bracket System.
Pos. Components Item no.
60 Scaffold Bracket MXK 126356
68 Guardrail Post MXK 126360
Shown: height 2.70 m
(Fig. A13.19)
A13 Working and concreting platforms
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Scaffold Bracket MXK-RS
The Scaffold Bracket MXK RS (59)
provides the possibility of connecting a
push-pull prop. Regarding the assembly
and widths of influence, see design
information for the Scaffold Bracket
MXK-RS!
Pos. Components Item no.
59 Scaffold Bracket MXK-RS 126540
68 Guardrail Post MXK 126360
(Fig. A13.19a)
Fig. A13.19a
AuV TRIO EX.indb 51 11.10.17 09:49
