TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A10 Offsets
Height offsets
For height offsets: depending on the
offset, Alignment Couplers BFD (20) are
mounted alternately on the frame struts
of the right and left panels.
(Fig. A10.05)

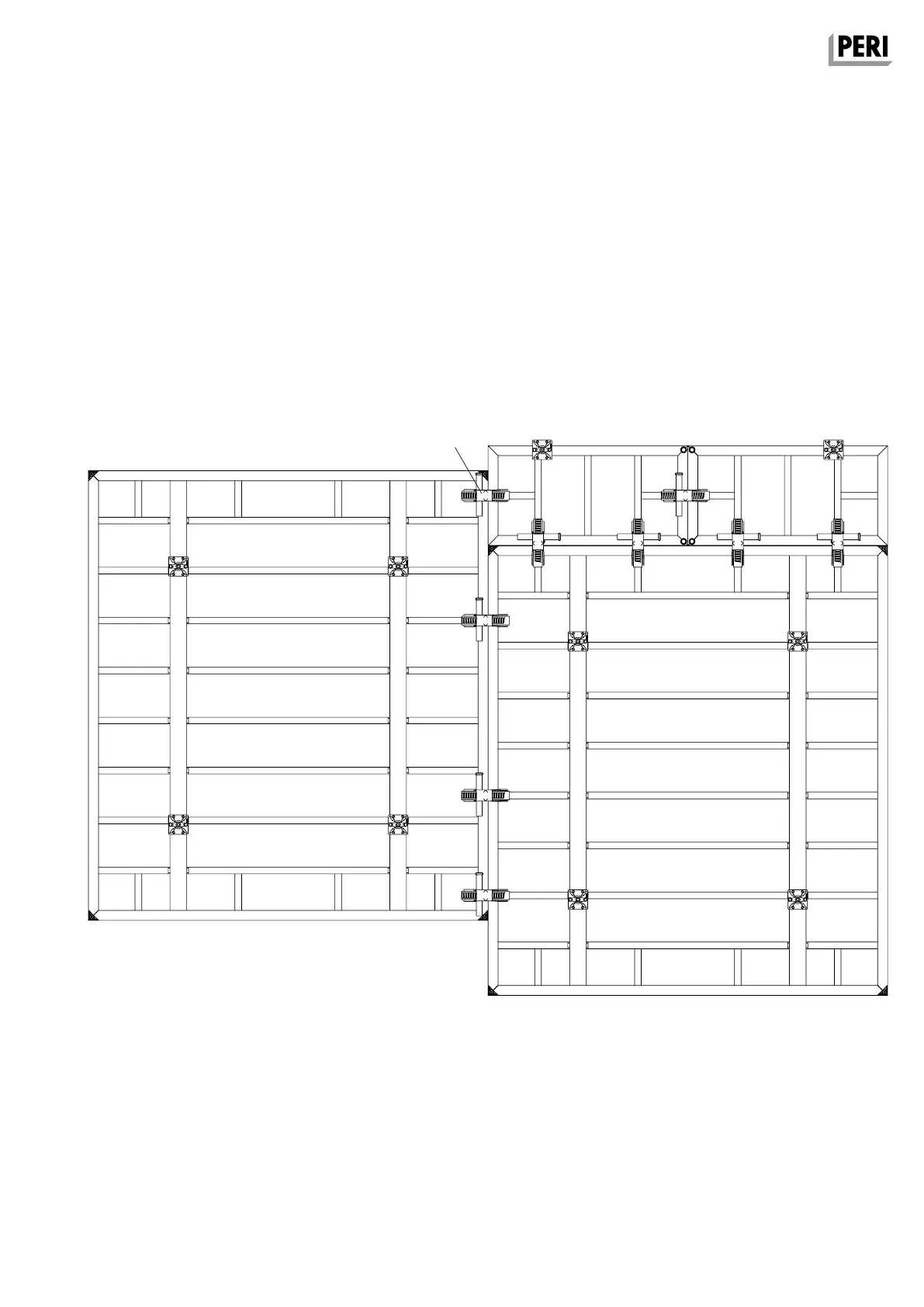

Fig. A10.05
