Peri Trio - A9 T-junctions; 90° T-junction

30
18
18
5
18
5
16
16
18
20
24
25
5
50
5
28
30
16
16
90
90
35
40
5
16
18
5
16
18
90
90
50
60
18
5
18
5
17
120
17
24
25
55
120
90
90
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A9 T-junctions
Pilaster
For the arrangement and number of
horizontal Walers 85 (24) with Stopend
Tie TS (25) and Top Tie Bracket AH (55)
with tie sets, see Section A12 Stopend
formwork with timbers.
(Fig. A9.02)

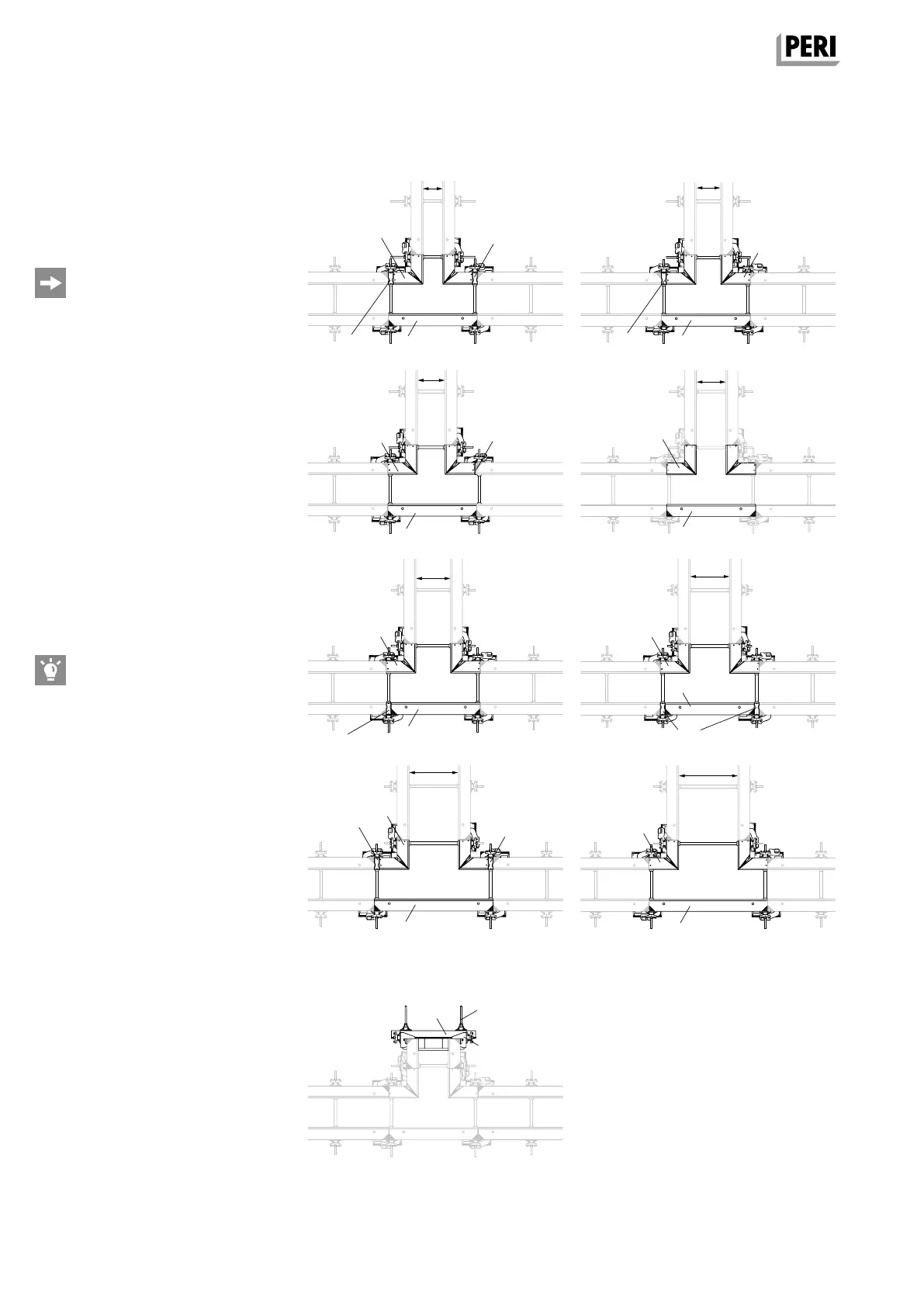

90° T-junction
Wall thicknesses from 18 cm to 60 cm
can be continuously formed.
(Fig. A9.01)
– Wall thickness 30 cm without
adjustment
– Internal adjustment for wall
thicknesses < 30 cm
– External adjustment for wall
thicknesses > 30 cm
Adjustment takes place with Wall
Thickness Compensator WDA (18)
or compensation (50) supplied by
contractor.
Assembly
– T-junctions are formed with Inside
Corner TE (5).
– The straight wall positioned opposite
is formed with one Panel TR 90 (16)
or TR 120 (17).
(Fig. A9.01)
With two Compensations (WDA),
mount one WDA each onthe right
and left of the panel.
1 WDA 5/6
1 WDA 5/6
1 WDA 5/6
1 WDA 5/6
1 WDA 5
1 WDA 5
1 WDA 5
Fig. A9.02
Fig. A9.01
