TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Storage and transportation
Storage
PERI provides stacking devices for safe
storage of the panels.
The corners of the panels are placed in
four stacking devices.
Stacking Device MAXIMO
– Only panels of the same size are
to be transported in one stack!
– Use Lifting Gear Combi MX or
4-sling lifting gear.
– On each stacking device, attach
a hook (11a) to one load-bearing
point (1a).
J Four load-bearing points
(Fig. A1.03)
Stacking devices (1)
– are suitable for lifting by crane or
forklift.
– can also be moved with the PERI
Pallet Lifting Trolley.
– can be lifted using the longitudinal
as well as front sides.
(Fig. A1.01)
Pos. Aids Item no.
1 Stacking Device MAXIMO 115058
11 Lifting Gear Combi MX 117321
Perm. load-bearing capacity
650 kg/device = 2.6 t/stack
Number of panels per stack
2 – 5 TRIO Panels of one size
Crane sling angle ß ≤ 45°
4-sling lifting gear L = 3.0 m (Fig. A1.02)
Max. stacking height
3 stacking devices on top of each other
1a
Use only one
load-bearing point.

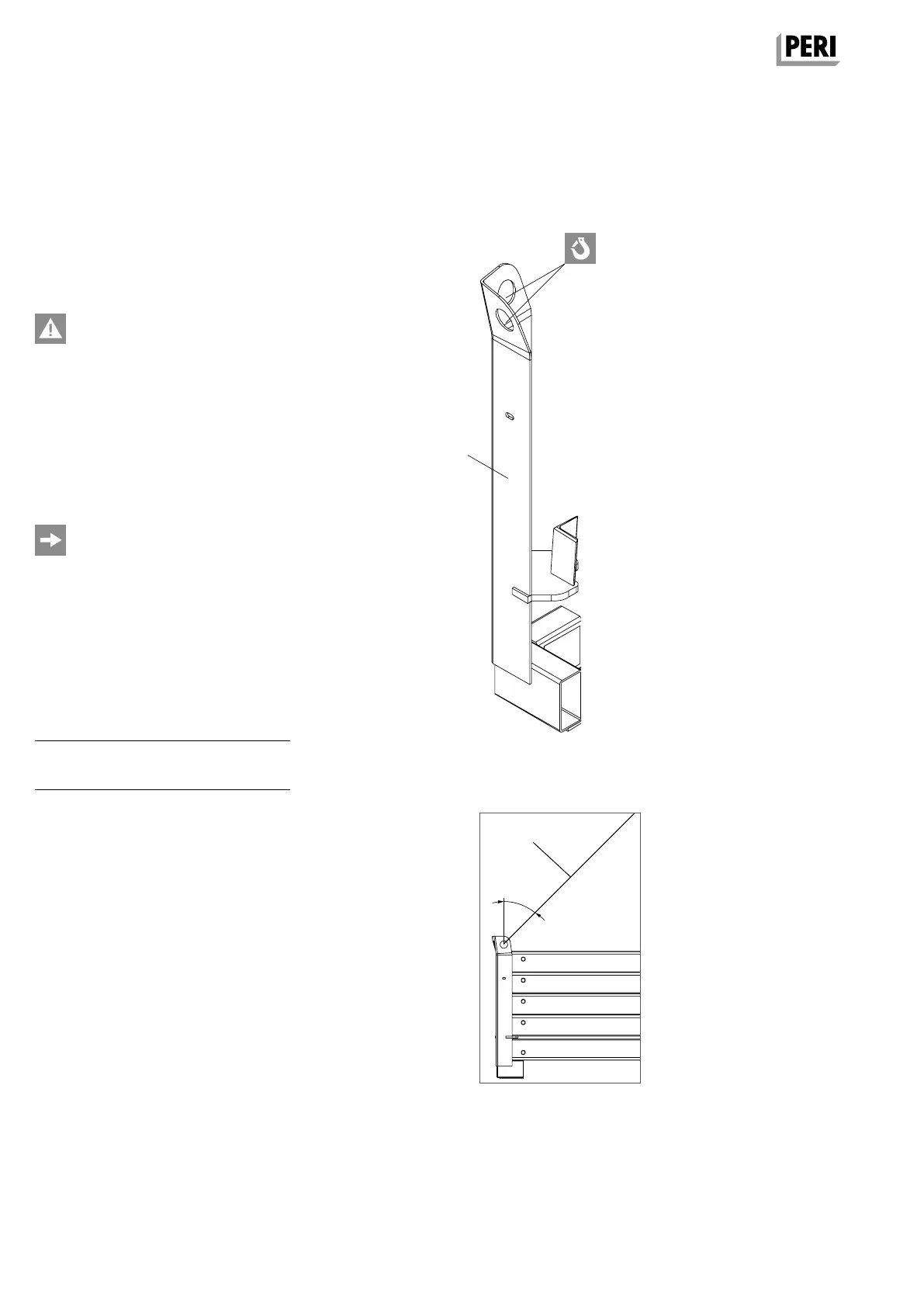

Fig. A1.01
Fig. A1.02
