TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Storage and transportation
Transport
PERI provides lifting accessories e.g.
Lifting Gear Combi MX (11), for ensuring
safe transportation.
Risk of slipping!
The panels should not be treated
with concrete release agent
immediately before transport.
– During moving operations, no
persons are allowed to remain
under the suspended load.
– Ensure transport units are
correctly stacked and secured.
– Use PERI lifting accessories and
slings.
– Use the designated load-bearing
points on the components.
– Store, transport and move
components ensuring that no
unintentional change in their
position is possible.
– Detach lifting accessories and
slings from the lowered compo-
nents only if they are in a stable
position and no unintentional
change is possible.
Unloading the stacking devices
Unload the stacks using the crane with
the help of Lifting Gear Combi (11) or
4-sling lifting gear. (Fig. A1.03)
1. Attach load hook (11a) to the
load-bearing point (1a) of the stacking
device – 4x. (Fig. A1.01 + A1.03)
2. Lift the stack with the crane and
place on the ground.

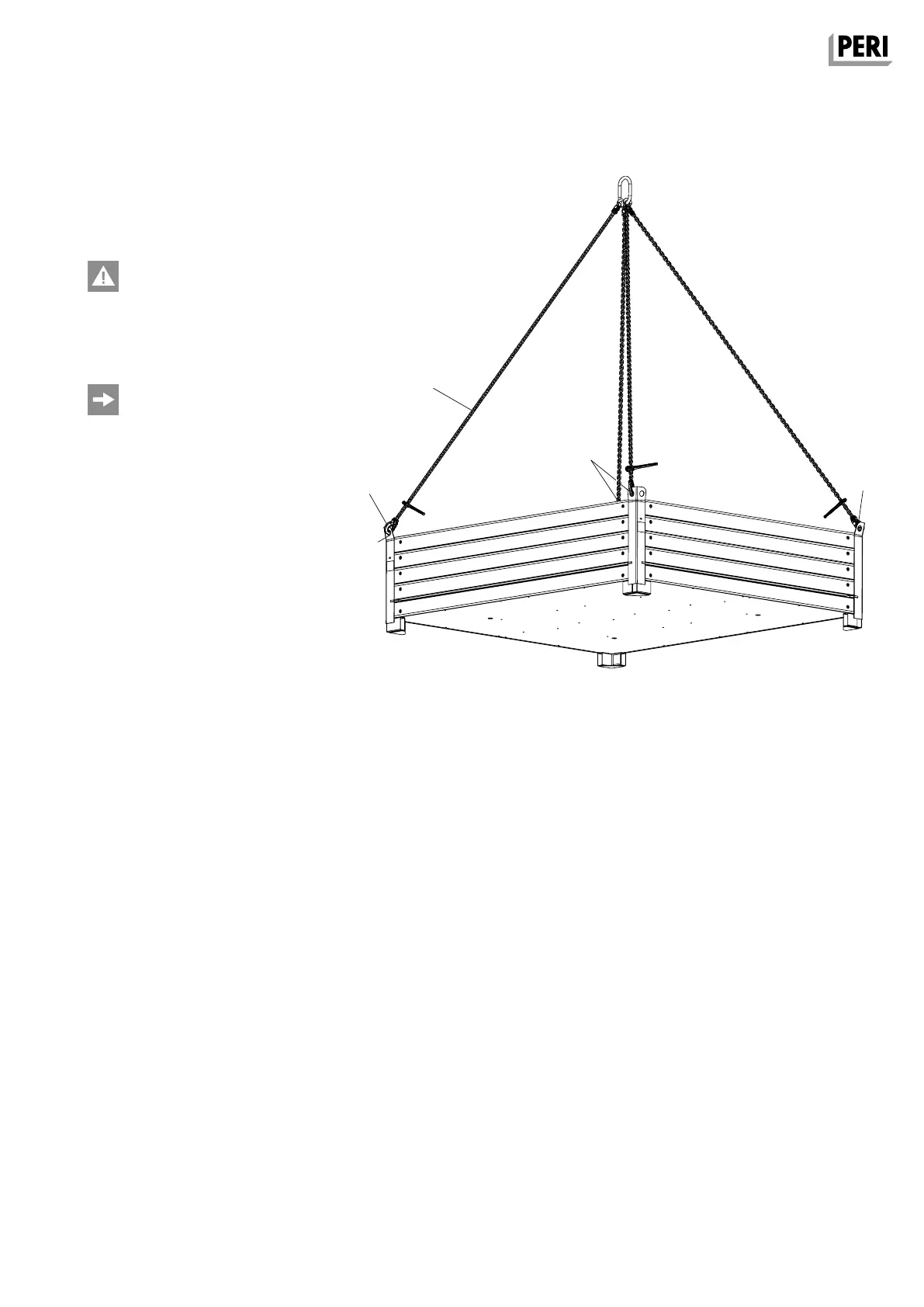

Fig. A1.03
1a
1a
11a
1a
