TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A15 Parapets, Foundations, Beams
85.2
85.1

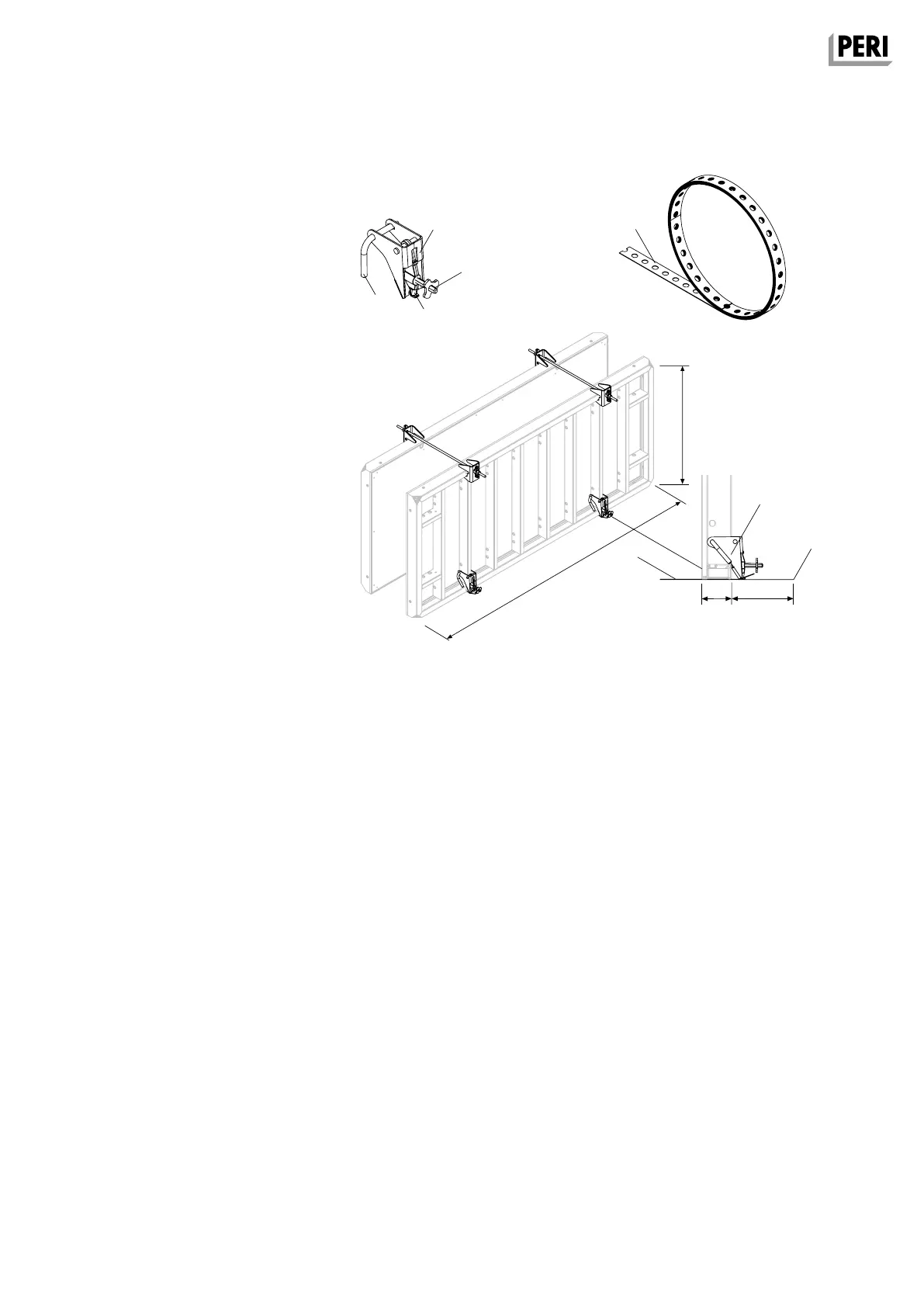

Fig. A15.03
Foundation Tie Clamp
TRIO TLS
If the bottom tie positions in the strip
and individual foundations are missing,
the Foundation Tie Clamp with
Perforated Foundation Tie are used.
Required length of the Perforated
Foundation Tie:
Foundation width + 50 cm.
Assembly
1. Place TRIO Panels on the Perforated
Foundation Tie (86).
2. Attach Foundation Tie Clamp TRIO
TLS (85) to the bottom connection
hole by means of bolts (85.1).
3. Attach Perforated Foundation Tie to
the Tensioning Lever (85.2).
4. Tension using Ratchet, SW 14.
Perm. tension force: 12.9 kN.
(Fig. A15.03)
SW 14
max. 1.20 m
2.70 m
12 cm
approx. 25 cm
