TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A6 Push-Pull Props
Push-Pull Props and Kickers

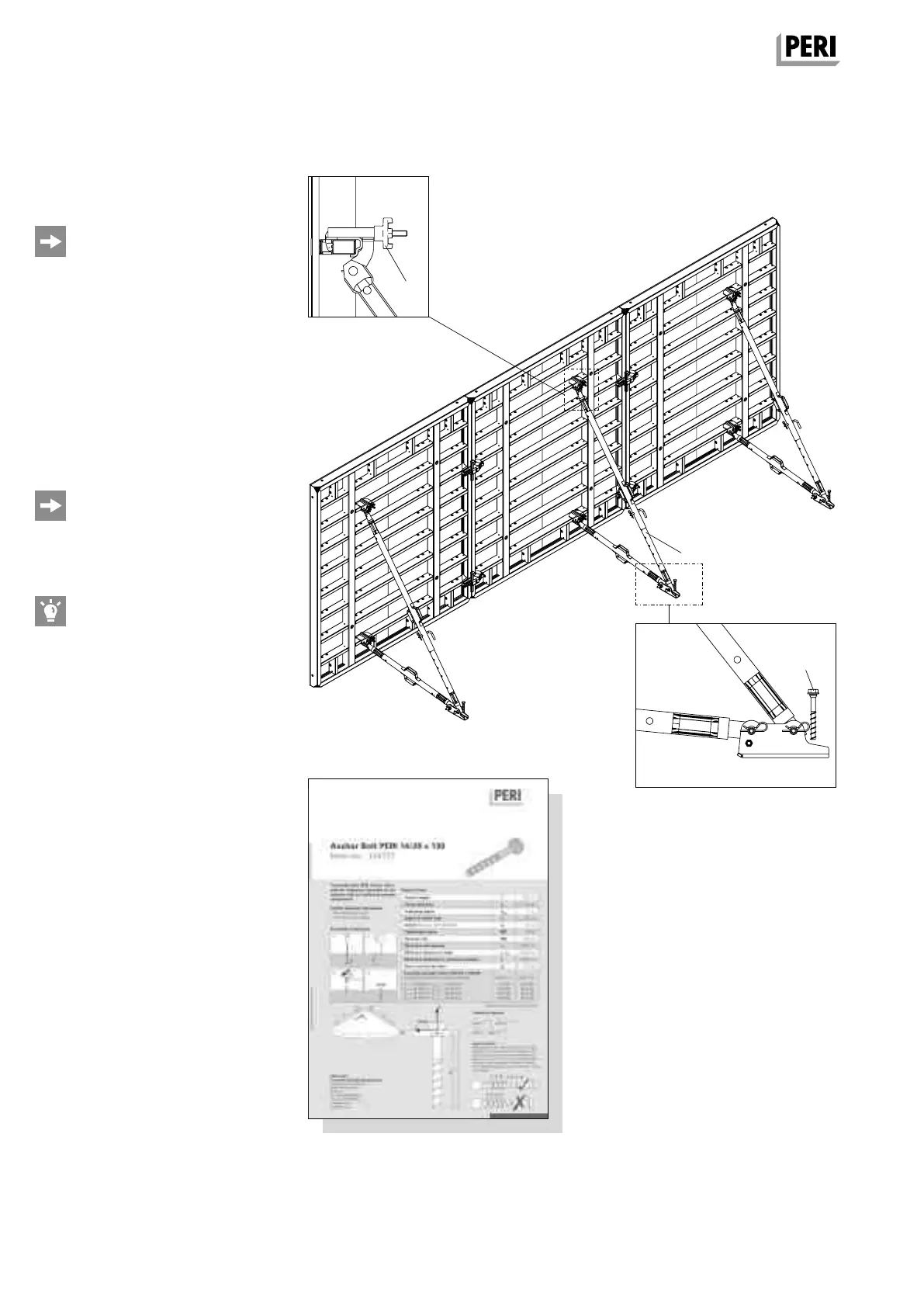

(Fig. A6.04)
Refer to Design Tables for more
information on the maximum widths
of influence for Push-Pull Props and
Kickers.
Assembly
1. Attach Push-Pull Prop or Kicker with
bolt and cotter pin to the Brace
Connector TRIO. (Fig. A6.04a)
2. Mount Base Plate, e.g. with PERI
Anchor Bolt 14/20 x 130 or similar (42).
(Fig. A6.04b)
Take into consideration the Data Sheet
for PERI Anchor Bolt 14/20 x 130.
(Fig. A6.05)
 If the installation or adjustment of the
Kicker on the lowest element strut is
not possible, the connection can also
be carried out on the second cross
strut.
 Instead of Push-Pull Props RS, the
Push-Pull Props RSS and Kickers AV
can also be used.
Fig. A6.04
Fig. A6.04a
Fig. A6.04b
Fig. A6.05
