TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A3 Panels
10.6
10.4
10.1
10.3
10.2
10.7
10.8
10.5
10.4
10.5
Panel width 2.40 m

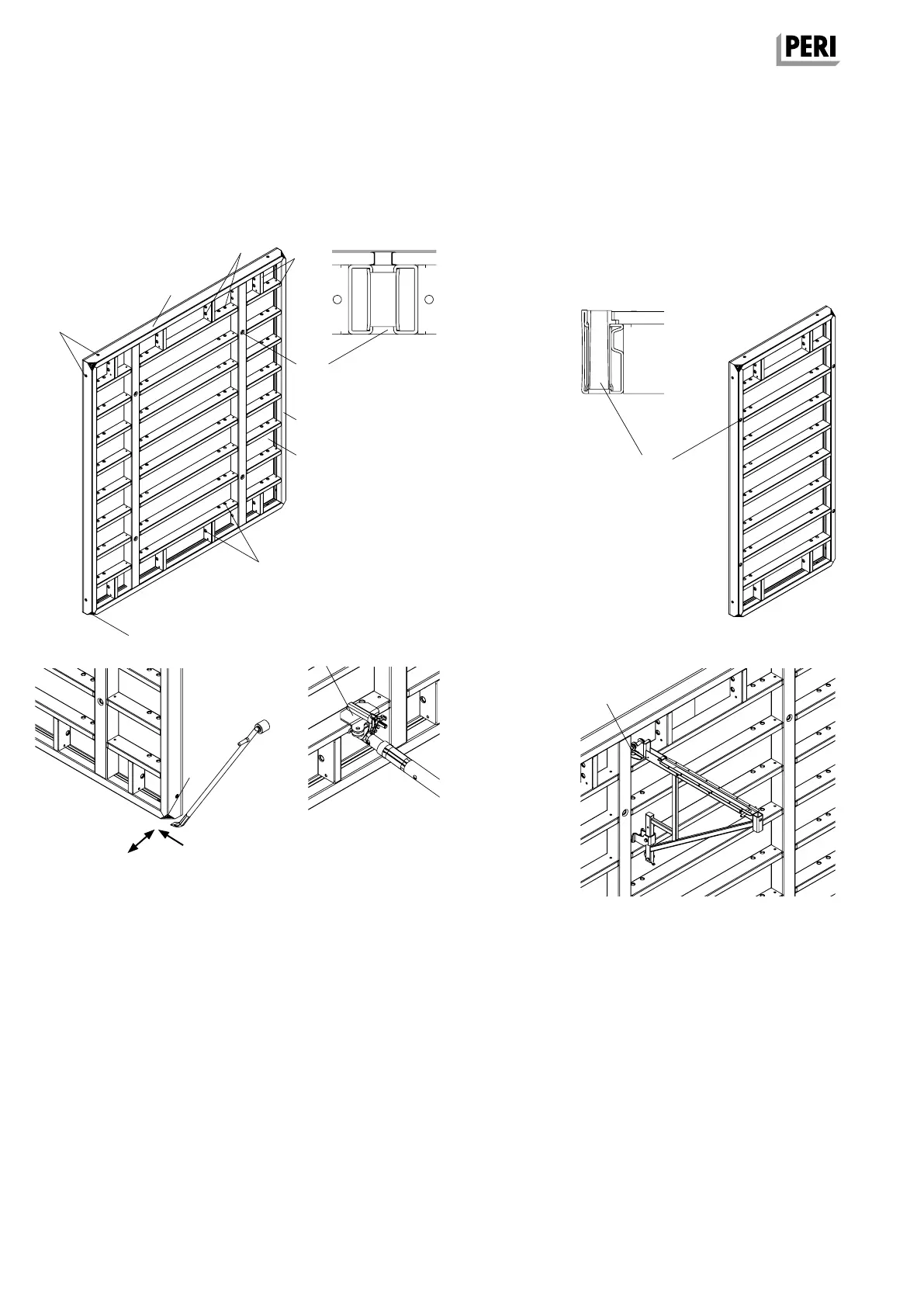

10 Panel (Fig. A3.01 + A3.02)
10.1 Offset tie point
10.2 Tie point in edge profile
10.3 Panel strut
10.4 Connecting holes for Scaffold Brackets,
Push-Pull-Props and other accessories
(Fig. A3.03b + A3.03c)
10.5 Levering corner (Fig. A3.03a)
10.6 Connecting holes for transportation
10.7 Frame
10.8 Plywood formlining
Panel width < 2.40 m
10.4
Fig. A3.01
Fig. A3.02
Fig. A3.03a
Fig. A3.03b
Fig. A3.03c
10.4
