CHAPTER 5 - DUAL

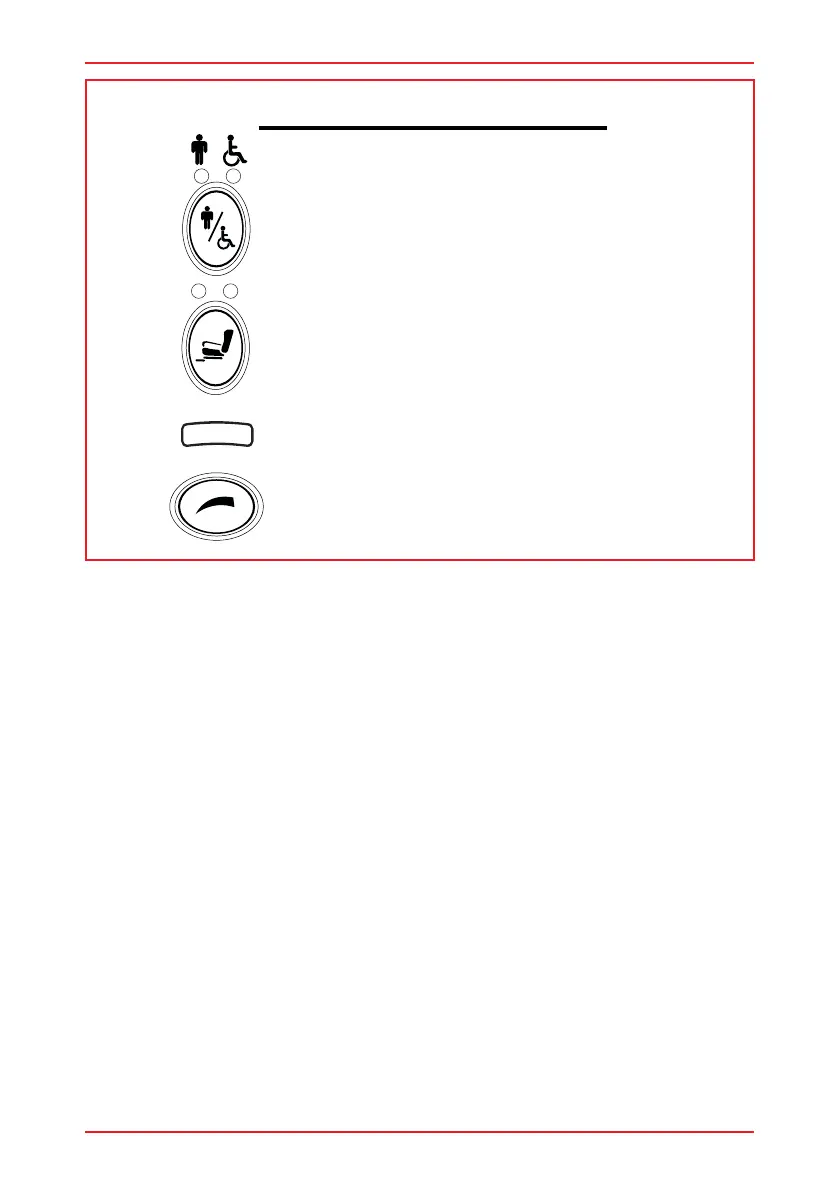

SK77898/2
Speed Indicator
Maximum Speed Button
Actuator Button
Control Button and Indicator
DUAL MODULE CONTROL BUTTONS
2.2 Control Button and Indicator
2.2.1 Control Indicator
This shows which joystick has control. If the red wheelchair light is on, the wheelchair
occupants joystick has control. If the green attendant light is on, the dual attendant
systems joystick has control.
2.2.1 Control Button
This transfers drive control of the wheelchair between the VR2 and the dual attendant
system.
2.3 Actuator Button and LEDs
All VR2 dual attendant systems have an actuator button fitted as standard. If the VR2
is programmed with 0 actuators then this button has no function.
However, if VR2 is programmed with 1or 2 actuators, the operation of this button will
differ. Refer to the relevant section below.
2.3.1 Wheelchairs with One Actuator
Depressing the actuator button once will enter actuator adjustment mode. This will be
indicated by the illumination of both actuator LEDs. Actuator adjustment can then be
made by deflecting the joystick forwards and backwards.
To re-enter drive mode, depress either the actuator button or the speed button.
2.3.2 Wheelchairs with Two Actuators
Depressing the actuator button will enter actuator adjustment mode. Depressing the
