4.6.8.2 VLAN Trunking between two 802.1Q aware switches
In most cases, they are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access
to other switches within the same VLAN group. The screen in Figure 4-6-12 appears.

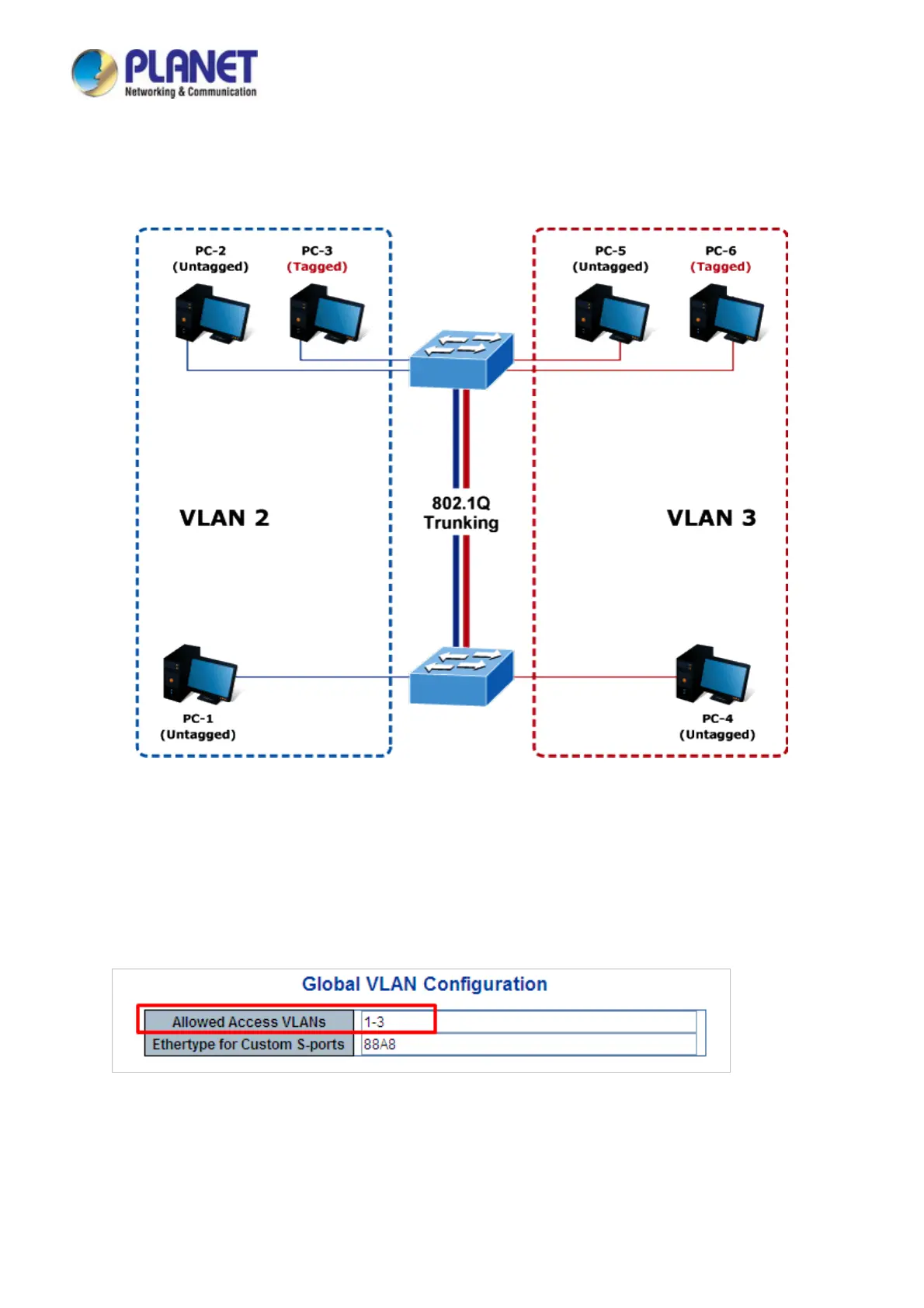

Figure 4-6-12: VLAN Trunking Diagram
Setup steps
1. Add VLAN Group
Add two VLANs – VLAN 2 and VLAN 3
For Type 1-3 in Allowed Access VLANs column, the 1-3 includes VLAN1 and 2 and 3.
Figure 4-6-13: Add VLAN 2 and VLAN 3
To Next Page
