User’s Manual of IGS-604HPT-M12
209
4.10.2 Access Control List Configuration
This page shows the Access Control List (ACL), which is made up of the ACEs defined on this switch. Each row describes the
ACE that is defined. The maximum number of ACEs is 512 on each switch.
Click on the lowest plus sign to add a new ACE to the list. The reserved ACEs used for internal protocol, cannot be edited or
deleted, the order sequence cannot be changed and the priority is highest. The Access Control List Configuration screen in
Figure 4-10-2 appears.

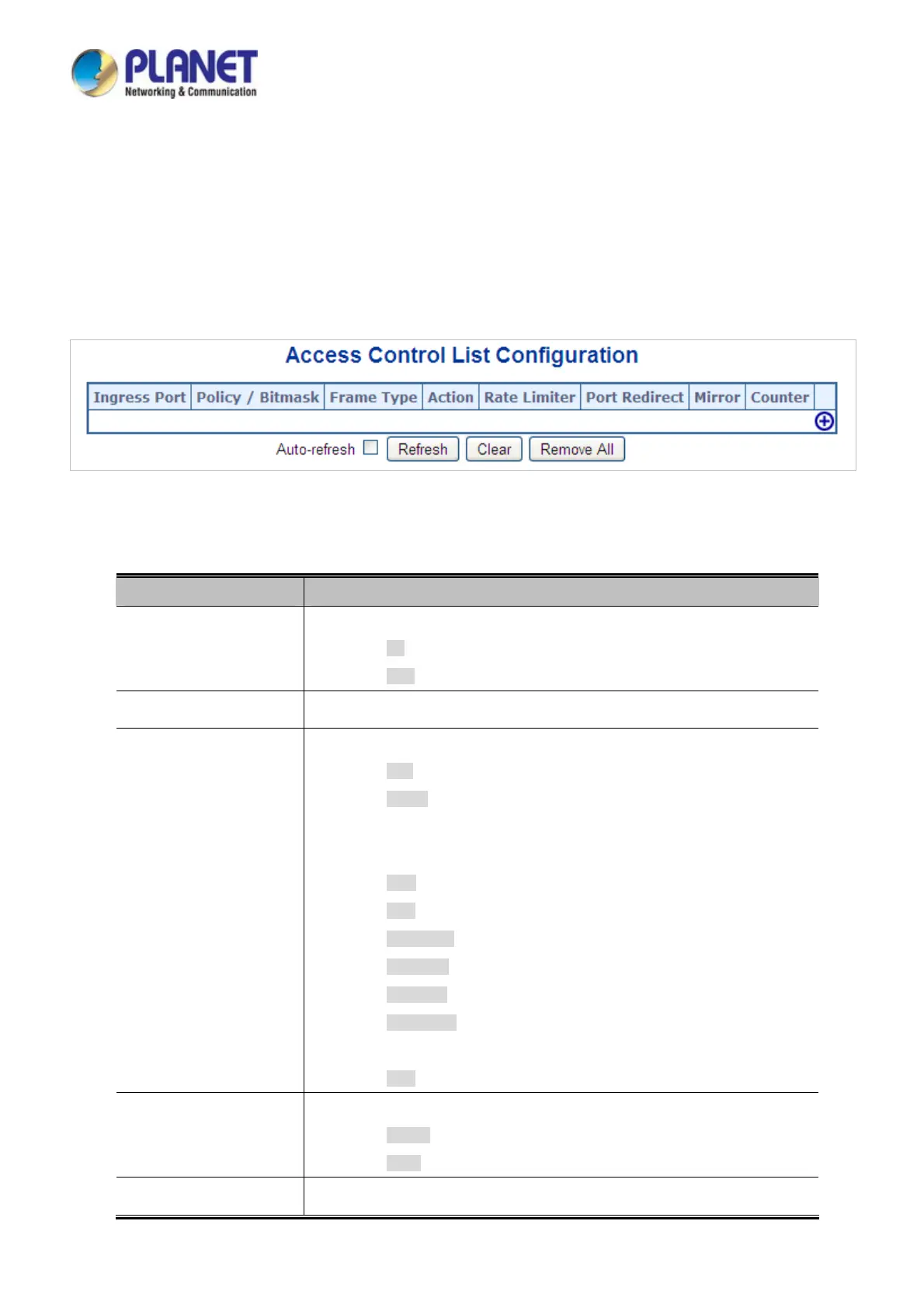

Figure 4-10-2: Access Control List Configuration Screenshot
The page includes the following fields:
Object Description
Indicates th
e ingress port of the ACE. Possible values are:
 Ingress Port
■ All: The ACE will match all ingress port.
■ Port: The ACE will match a specific ingress port.
 Policy / Bitmask
Indicates the policy number and bitmask of the ACE.
Indicates th
e frame type of the ACE. Possible values are:
 Frame Type
■ Any: The ACE will match any frame type.
■ EType: The ACE will match Ethernet Type frames. Note that an
Ethernet Type based ACE will not get matched by IP and ARP
frames.
■ ARP: The ACE will match ARP/RARP frames.
■ IPv4: The ACE will match all IPv4 frames.
■ IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol.
■ IPv4/UDP: The ACE will match IPv4 frames with UDP protocol.
■ IPv4/TCP: The ACE will match IPv4 frames with TCP protocol.
■ IPv4/Other: The ACE will match IPv4 frames, which are not
ICMP/UDP/TCP.
■ IPv6: The ACE will match all IPv6 standard frames.
 Action
Indicates the forwarding action of the ACE.
■ Permit: Frames matching the ACE may be forwarded and learned.
■ Deny: Frames matching the ACE are dropped.
 Rate Limiter
Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When
