4.2.3 IP Status
IP Status displays the status of the IP protocol layer. The status is defined by the IP interfaces, the IP routes and the neighbour
cache (ARP cache) status. The screen in Figure 4-2-3 appears.

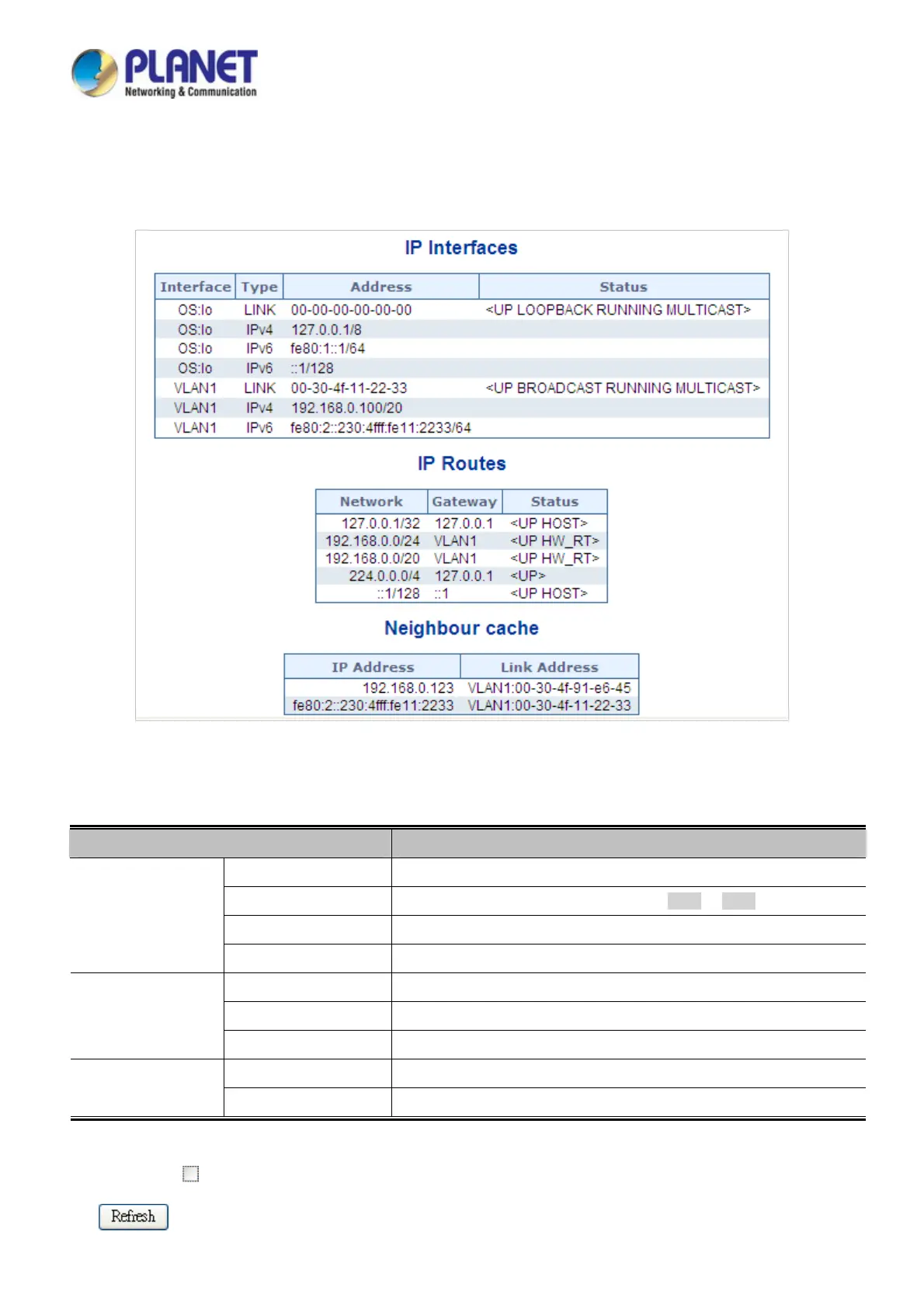

Figure 4-2-3: IP Status Screenshot
The page includes the following fields:
Object Description
Interface
The name of the interface.
Type
The address type of the entry. This may be LINK or IPv4.
Address
The current address of the interface (of the given type).
 IP Interfaces
Status
The status flags of the interface (and/or address).
Network
The destination IP network or host address of this route.
Gateway
The gateway address of this route.
 IP Routes
Status
The status flags of the route.
IP Address
The IP address of the entry.
 Neighbor Cache
Link Address
The Link (MAC) address for which a binding to the IP address given exist.
Buttons
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page.
