4.15.4 Cable Diagnostics
This page is used for running the Cable Diagnostics. Press to run the diagnostics. This will take approximately 5 seconds. If all
ports are selected, this can take approximately 15 seconds. When completed, the page refreshes automatically, and you can
view the cable diagnostics results in the cable status table. Note that Cable Diagnostics is only accurate for cables of length 7 -
140 meters.
10 and 100 Mbps ports will be linked down while running cable diagnostic. Therefore, running cable diagnastic on a 10 or 100
Mbps management port will cause the switch to stop responding until VeriPHY is complete. The ports belong to the currently
selected stack unit, as reflected by the page header. The VeriPHY Cable Diagnostics screen in Figure 4-15-4 appears.

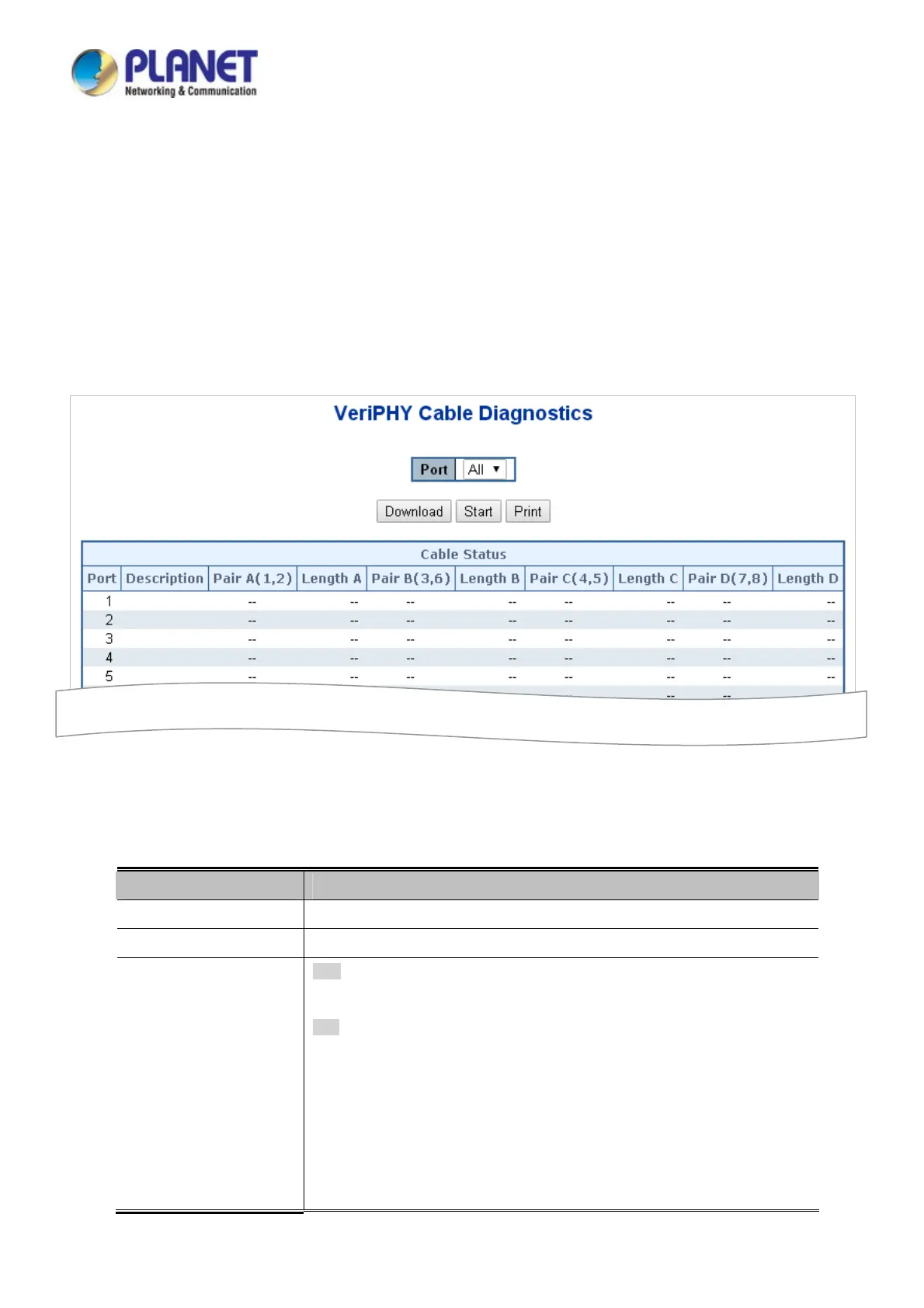

Figure 4-15-4: VeriPHY Cable Diagnostics Screenshot
The page includes the following fields:
Object Description
T
he port where you are requesting Cable Diagnostics.
ï‚· Port
Displ
ay per port description.
ï‚· Description
ï‚· Cable Status
Port:
Port number
.
Pair:
The status of the cable pair.
OK - Correctly terminated pair
Open - Open pair
Short - Shorted pair
Short A - Cross-pair short to pair A
Short B - Cross-pair short to pair B
