4.9.15 Voice VLAN Configuration
The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network
traffic. It is recommended that there be two VLANs on a port -- one for voice and one for data.
Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly. It should be
configured through its own GUI. The Voice VLAN Configuration screen in Figure 4-9-18 appears.

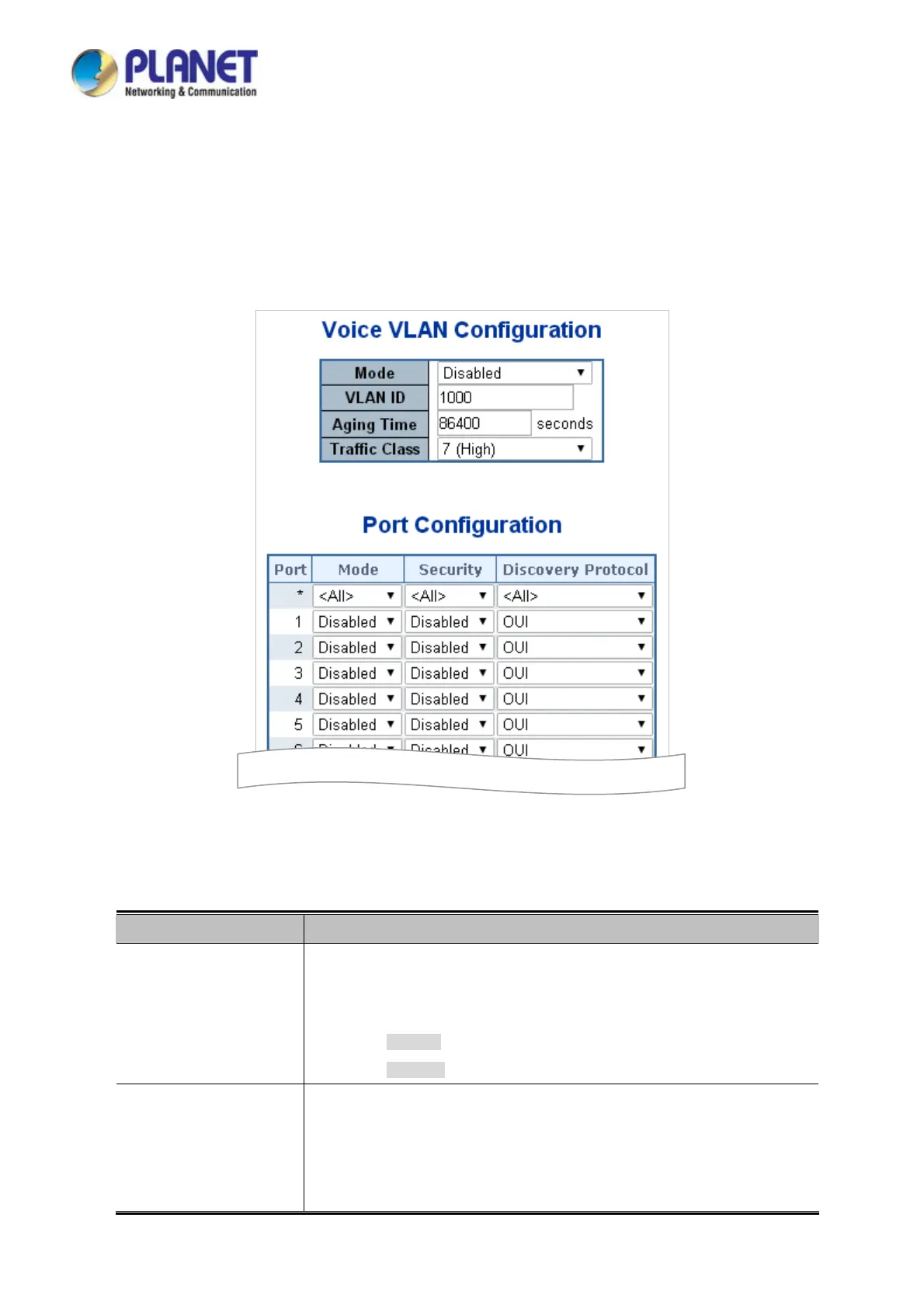

Figure 4-9-17: Voice VLAN Configuration Screenshot
The page includes the following fields:
Object Description
Indicates th
e Voice VLAN mode operation. We must disable MSTP feature
before we enable Voice VLAN. It can avoid the conflict of ingress filter. Possible
modes are:
■ Enabled: Enable Voice VLAN mode operation.
■ Disabled: Disable Voice VLAN mode operation.
 Mode
 VLAN ID
Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and
cannot equal each port PVID. It is conflict configuration if the value equal
management VID, MVR VID, PVID etc.
The allowed range is 1 to 4095.
