User’s Manual of IGS-604HPT-M12

293

Buttons

: Click to apply changes

: Click to undo any changes made locally and revert to previously saved values.

4.13.2 MAC Address Table Status

Dynamic MAC Table

Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID,

then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.

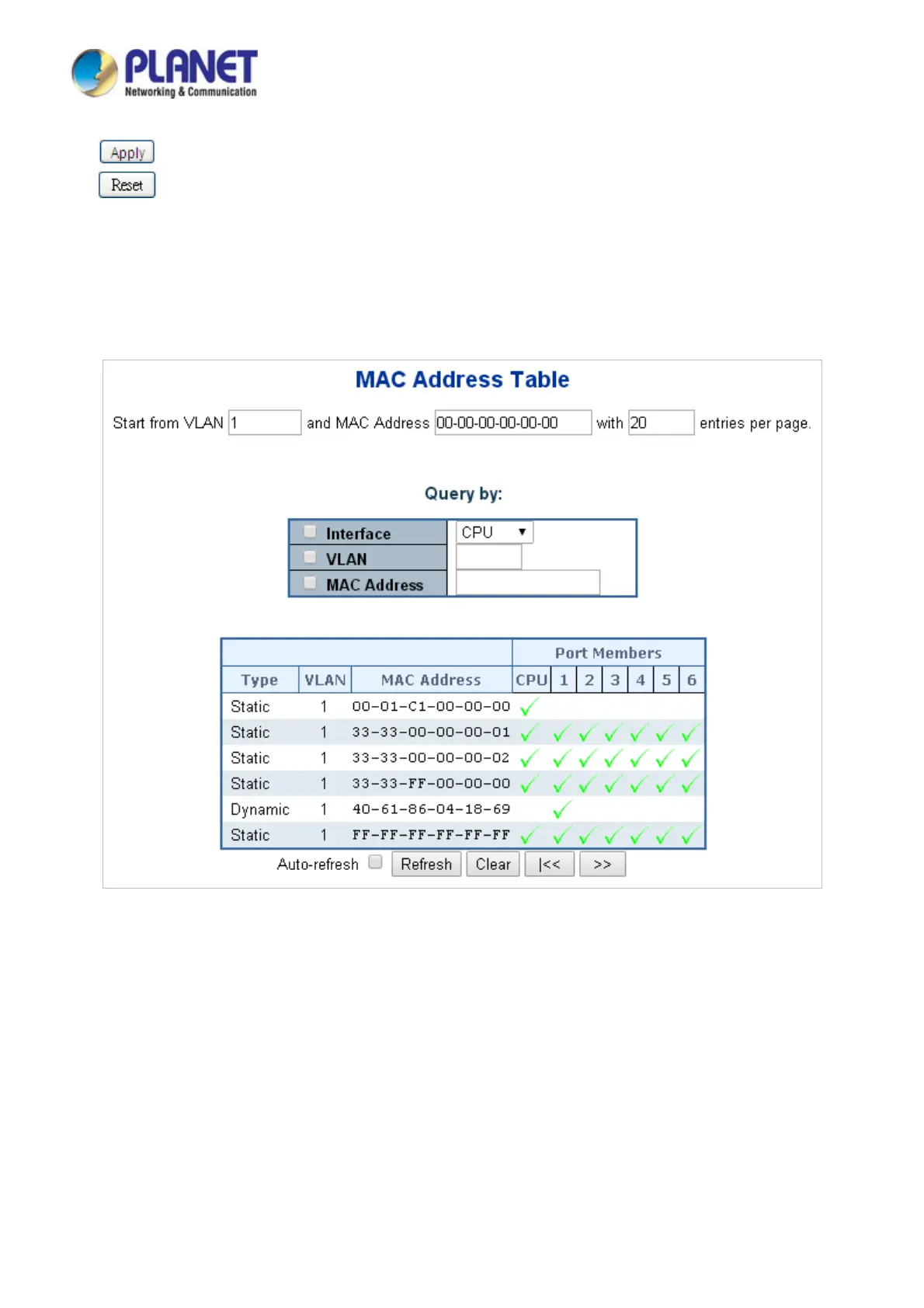

Figure 4-13-2: MAC Address Table Status Screenshot

Navigating the MAC Table

Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page" input

field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table. The first displayed

will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.

The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the MAC Table.

Clicking the “Refresh” button will update the displayed table starting from that or the closest next MAC Table match.

In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first displayed entry, allowing

for continuous refresh with the same start address.
