User’s Manual of IGS-604HPT-M12
130
4.6.9 MAC-based VLAN
The MAC-based VLAN entries can be configured here. This page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This page shows only static entries. The MAC-based VLAN screen in Figure 4-6-18
appears.

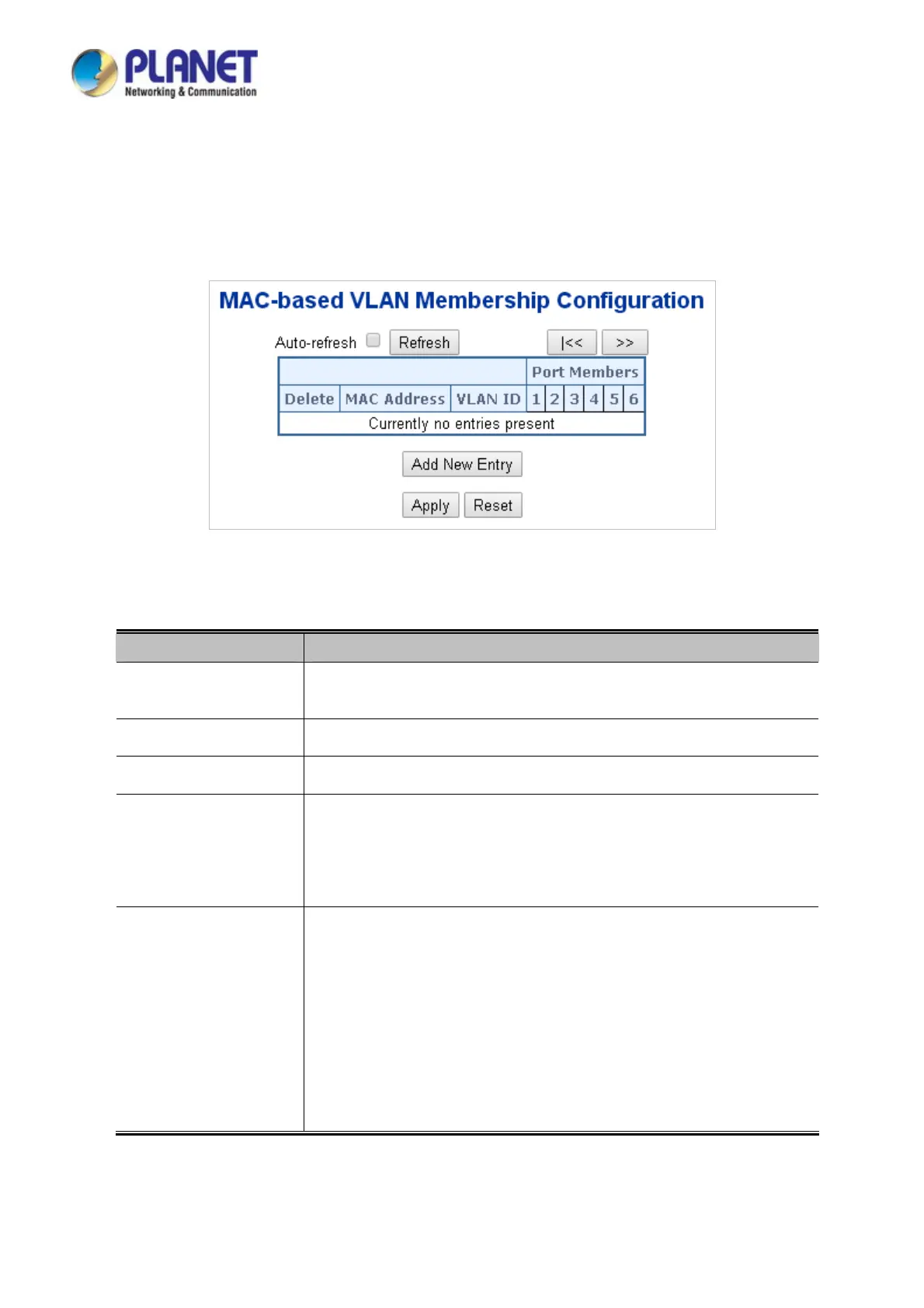

Figure 4-6-18: MAC-based VLAN Membership Configuration Screenshot
The page includes the following fields:
Object Description
Delete
To delete a MAC-based VLAN entry, check this box and press save. The entry
will be deleted in the stack.
MAC Address
Indicates the MAC address.
VLAN ID
Indicates the VLAN ID.
Port Members
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
no ports are members, and all boxes are unchecked.
Adding a New
MAC-based VLAN
Click “Add New Entry” to add a new MAC-based VLAN entry. An empty row is
added to the table, and the MAC-based VLAN entry can be configured as
needed. Any unicast MAC address can be configured for the MAC-based VLAN
entry. No broadcast or multicast MAC addresses are allowed. Legal values for a
VLAN ID are 1 through 4095.
The MAC-based VLAN entry is enabled when you click on "Save". A MAC-based
VLAN without any port members will be deleted when you click "Save".
The “Delete” button can be used to undo the addition of new MAC-based VLANs.
