Buttons
: Click to refresh the page immediately.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
4.11.5 Network Access Statistics
This page provides detailed NAS statistics for a specific switch port running EAPOL-based IEEE 802.1X authentication. For
MAC-based ports, it shows selected backend server (RADIUS Authentication Server) statistics only. Use the port select box to
select which port details to be displayed. The Network Access Statistics screen in Figure 4-11-6 appears.

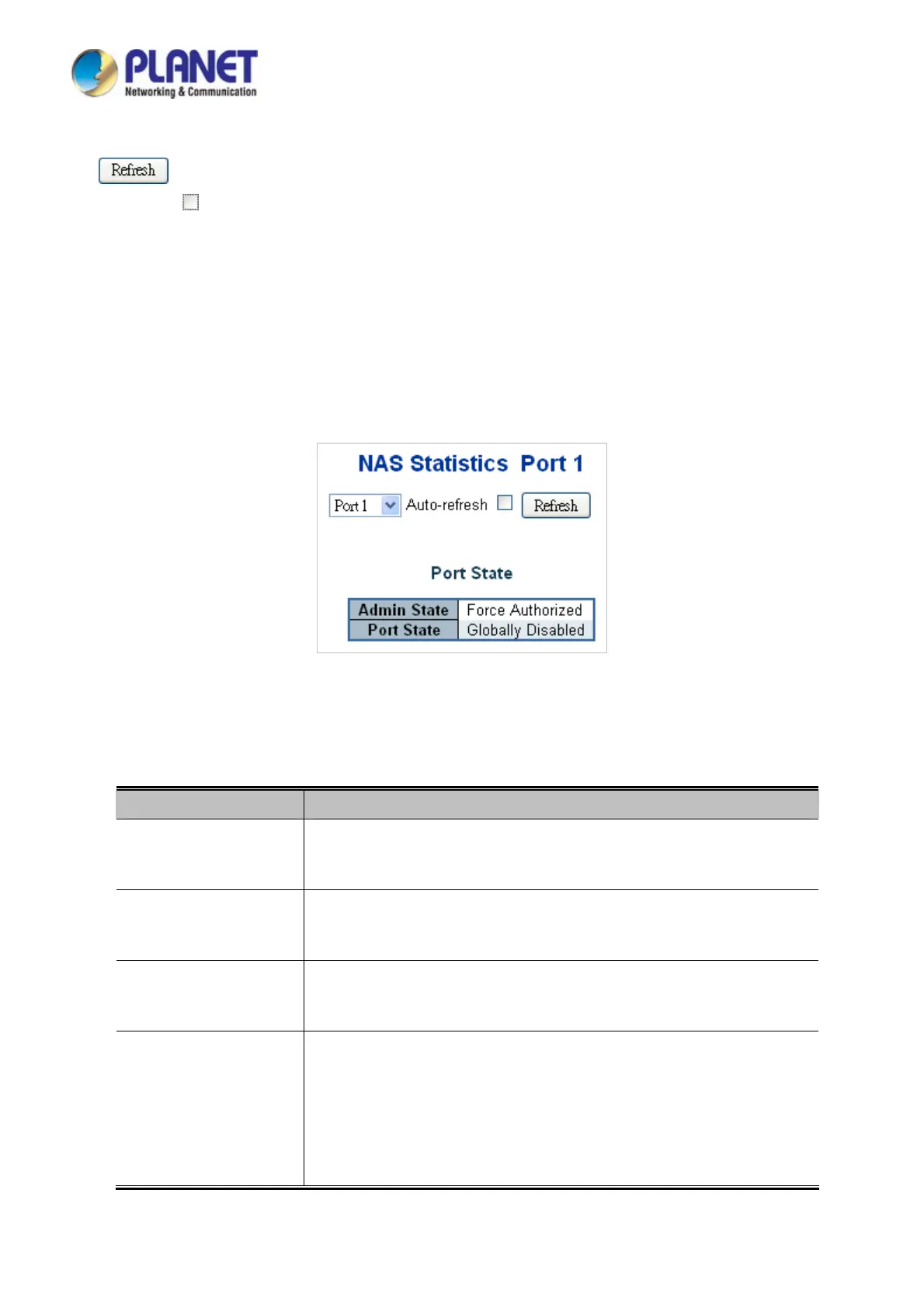

Figure 4-11-6: Network Access Statistics Screenshot
The page includes the following fields:
Port State
Object Description
T
he port's current administrative state. Refer to NAS Admin State for a
description of possible values.
 Admin State
T
he current state of the port. Refer to NAS Port State for a description of the
individual states.
 Port State
T
he QoS class assigned by the RADIUS server. The field is blank if no QoS class
is assigned.
 QoS Class
 Port VLAN ID
The VLAN ID that NAS has put the port in. The field is blank, if the Port VLAN ID
is not overridden by NAS. If the VLAN ID is assigned by the RADIUS server,
"(RADIUS-assigned)" is appended to the VLAN ID. Read more about
RADIUS-assigned VLANs here. If the port is moved to the Guest VLAN,
"(Guest)" is appended to the VLAN ID. Read more about Guest VLANs here.
