User’s Manual of IGS-604HPT-M12
29

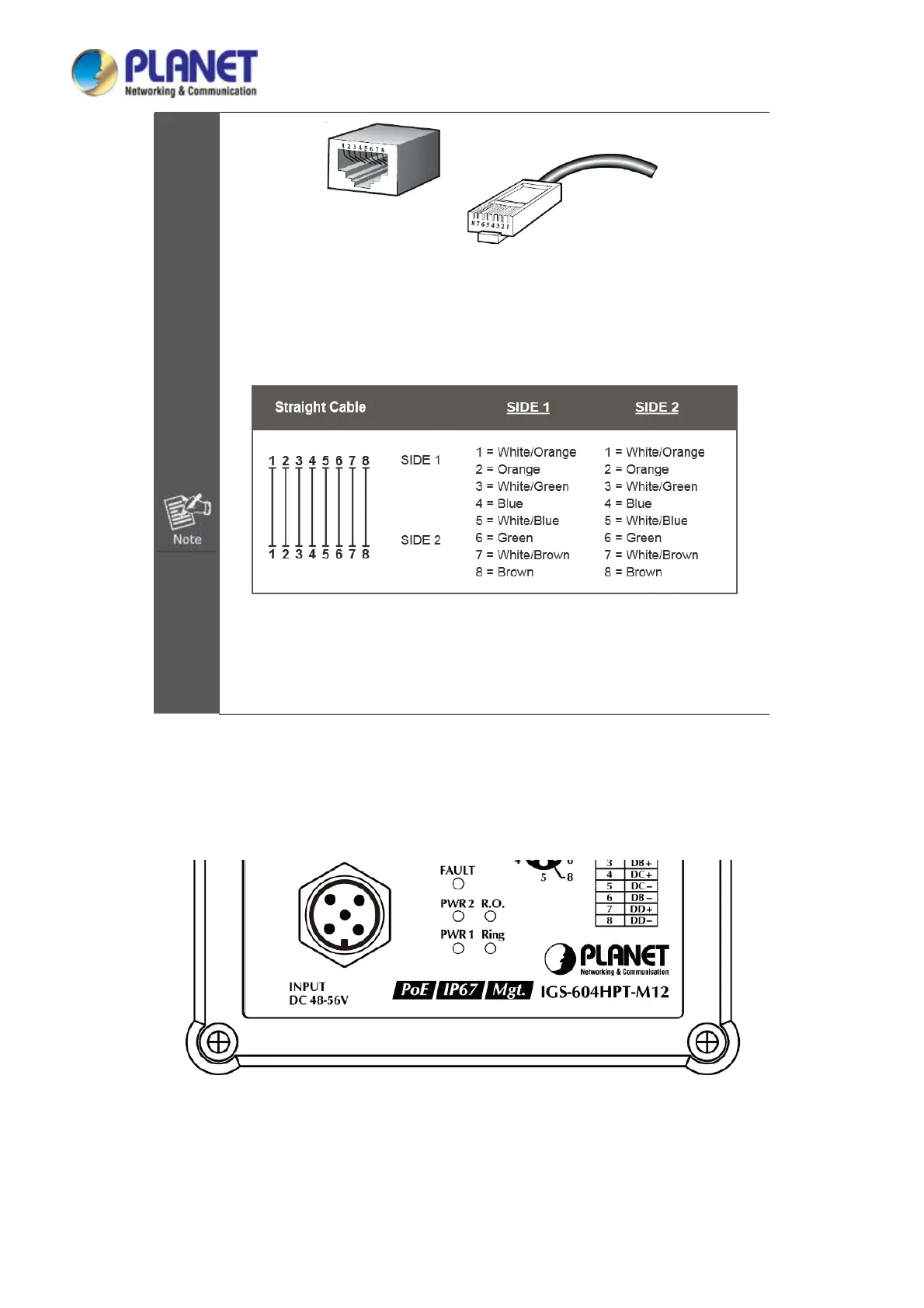

The standard RJ45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The
following shows the pin allocation and colors of straight-through cable connection:
Please make sure your waterproof RJ45 cables are with the same pin assignment and
colors as the above picture before deploying the cables into your network.
2.1.6 Wiring the DC Power Input
The front panel of the Industrial Managed Switch provides one M12 A-coded 5-pin male connector for DC power input.
Please use the power cable with the M12 A-coded 5-pin female connector from the Industrial Managed Switch package for DC
power input. The M12 DC power cable pin assignment is shown below:
