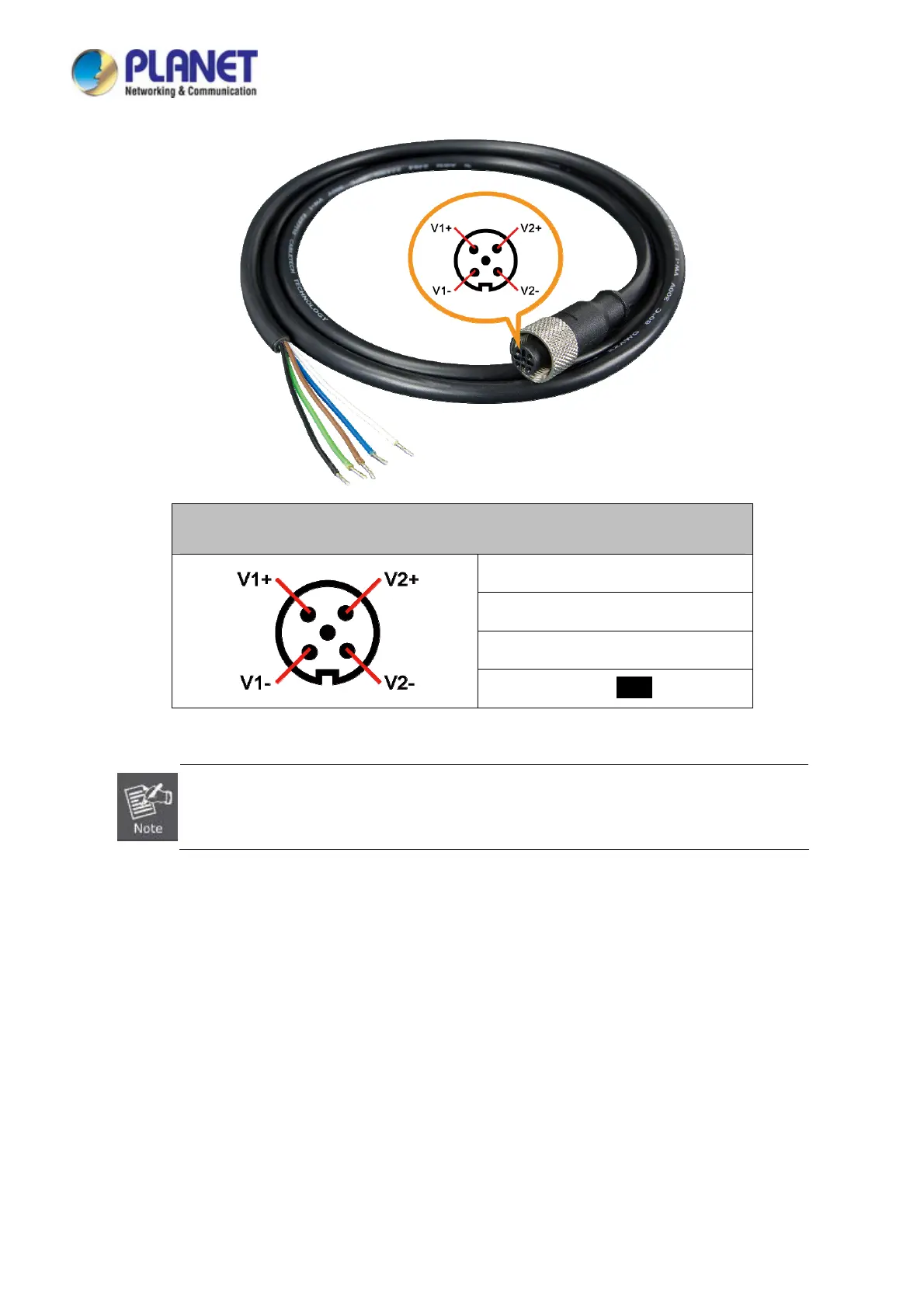

M12 DC power cable pin assignment & wire code
V1 positive (+) pin = black cable
V1 negative (-) pin = brown cable
V2 positive (+) pin = blue cable
V2 negative (-) pin = white cable
Make sure you connect the correct power pin to your DC power source.
1. The wire gauge for the power cable should be in the range of 12 ~ 24 AWG.
2. The DC power input range is 48 ~ 56V DC.
