 Coll. The best estimate of the total number of collisions in this Ethernet segment.
 Utilization The best estimate of the mean physical layer network utilization on this interface
during this sampling interval is in the hundredths of a percent.
Buttons
: Click to refresh the page immediately.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Updates the table, starting from the first entry in the History table, i.e., the entry with the lowest History
Index and Sample Index
: Updates the table, starting with the entry after the last entry currently displayed.
4.18.7 RMON Statistics Configuration
Configure RMON Statistics table on this page. The entry index key is ID; screen in Figure 4-18-7 appears.

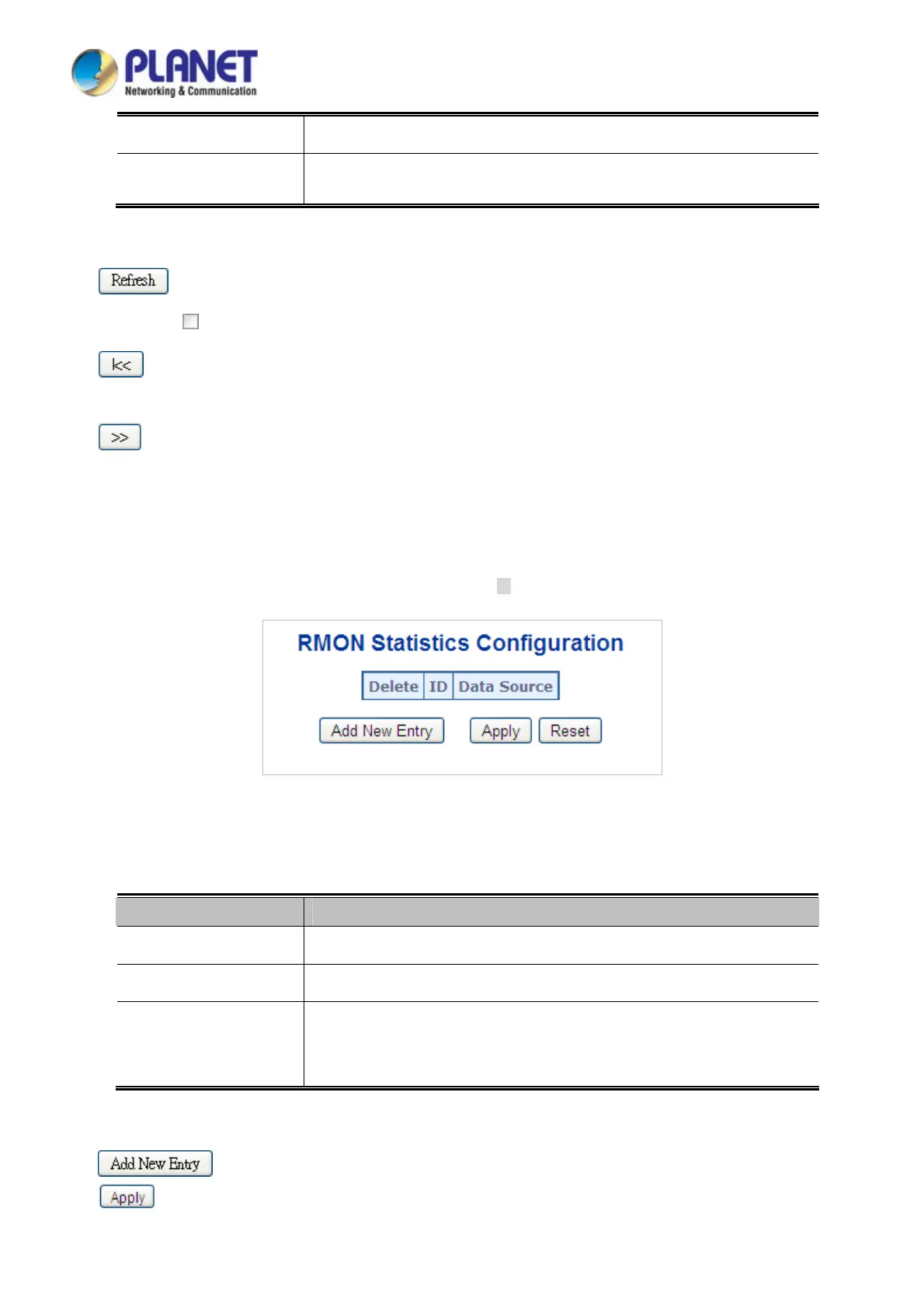

Figure 4-18-7: RMON Statistics Configuration Screenshot
The page includes the following fields:
Object Description
Check to de
lete the entry. It will be deleted during the next save.
 Delete
Indicates th
e index of the entry. The range is from 1 to 65535.
 ID
Indicates the p
ort ID which wants to be monitored. If in stacking switch, the value
must add 1000*(switch ID-1), for example, if the port is switch 3 port 5, the value
is 2005
 Data Source
Buttons
: Click to add a new community entry.
: Click to apply changes
