User’s Manual of IGS-604HPT-M12
211
4.10.3 ACE Configuration
Configure an ACE (Access Control Entry) on this page. An ACE consists of several parameters. These parameters vary
according to the frame type that you select. First select the ingress port for the ACE, and then select the frame type. Different
parameter options are displayed depending on the frame type selected. A frame that hits this ACE matches the configuration
that is defined here. The ACE Configuration screen in Figure 4-10-3 appears.

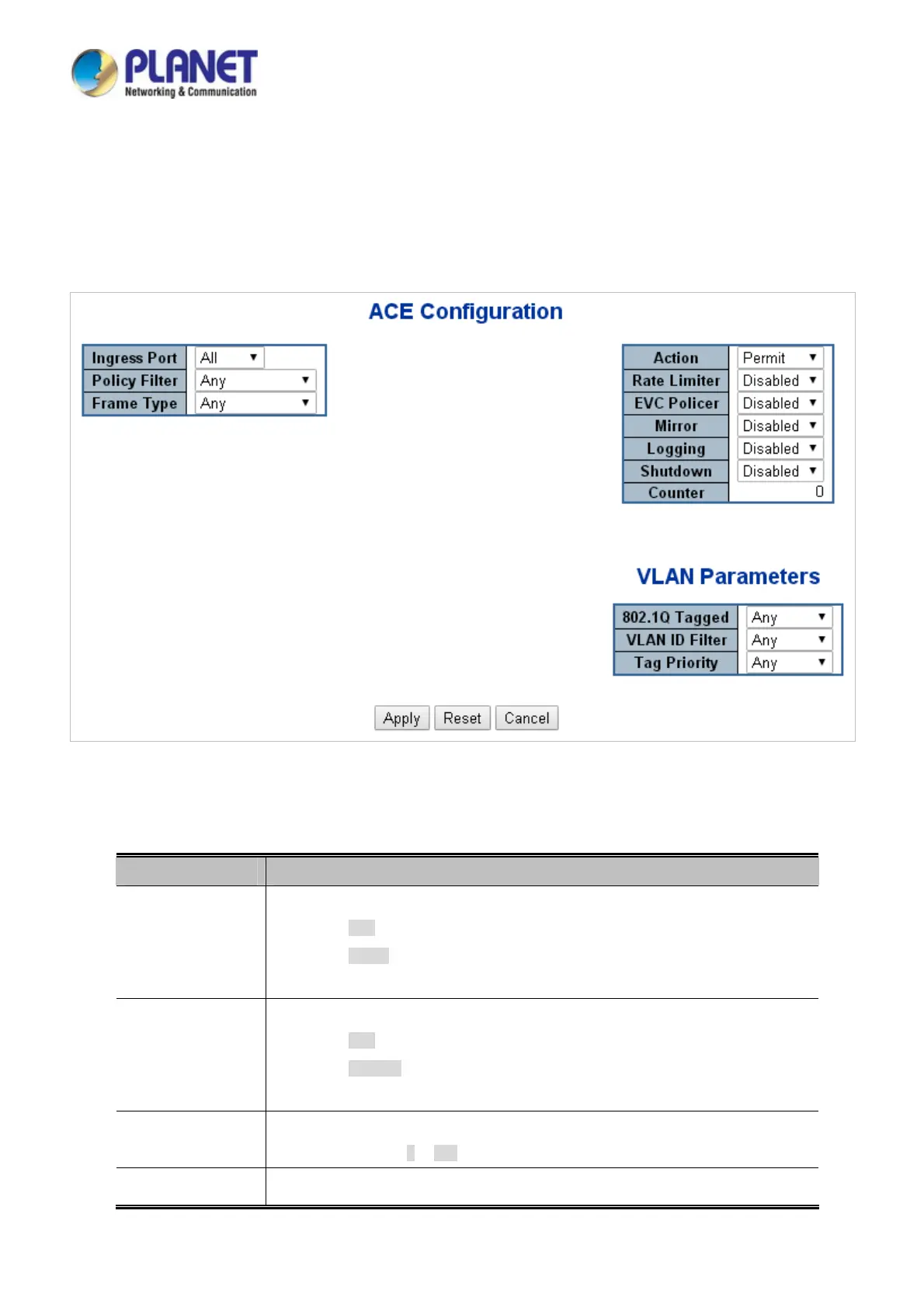

Figure 4-10-3: ACE Configuration Screenshot
The page includes the following fields:
Object Description
Select the in
gress port for which this ACE applies.
 Ingress Port
■ Any: The ACE applies to any port.
■ Port n: The ACE applies to this port number, where n is the number of the
switch port.
 Policy Filter
Specify the policy number filter for this ACE.
■ Any: No policy filter is specified. (policy filter status is "don't-care".)
■ Specific: If you want to filter a specific policy with this ACE, choose this
value. Two field for entering an policy value and bitmask appears.
 Policy Value
When "Specific" is selected for the policy filter, you can enter a specific policy value.
The allowed range is 0 to 255.
 Policy Bitmask
When "Specific" is selected for the policy filter, you can enter a specific policy bitmask.
