4.9.4 Port Scheduler
This page provides an overview of QoS Egress Port Schedulers for all switch ports. The Port Scheduler screen in Figure 4-9-3
appears.

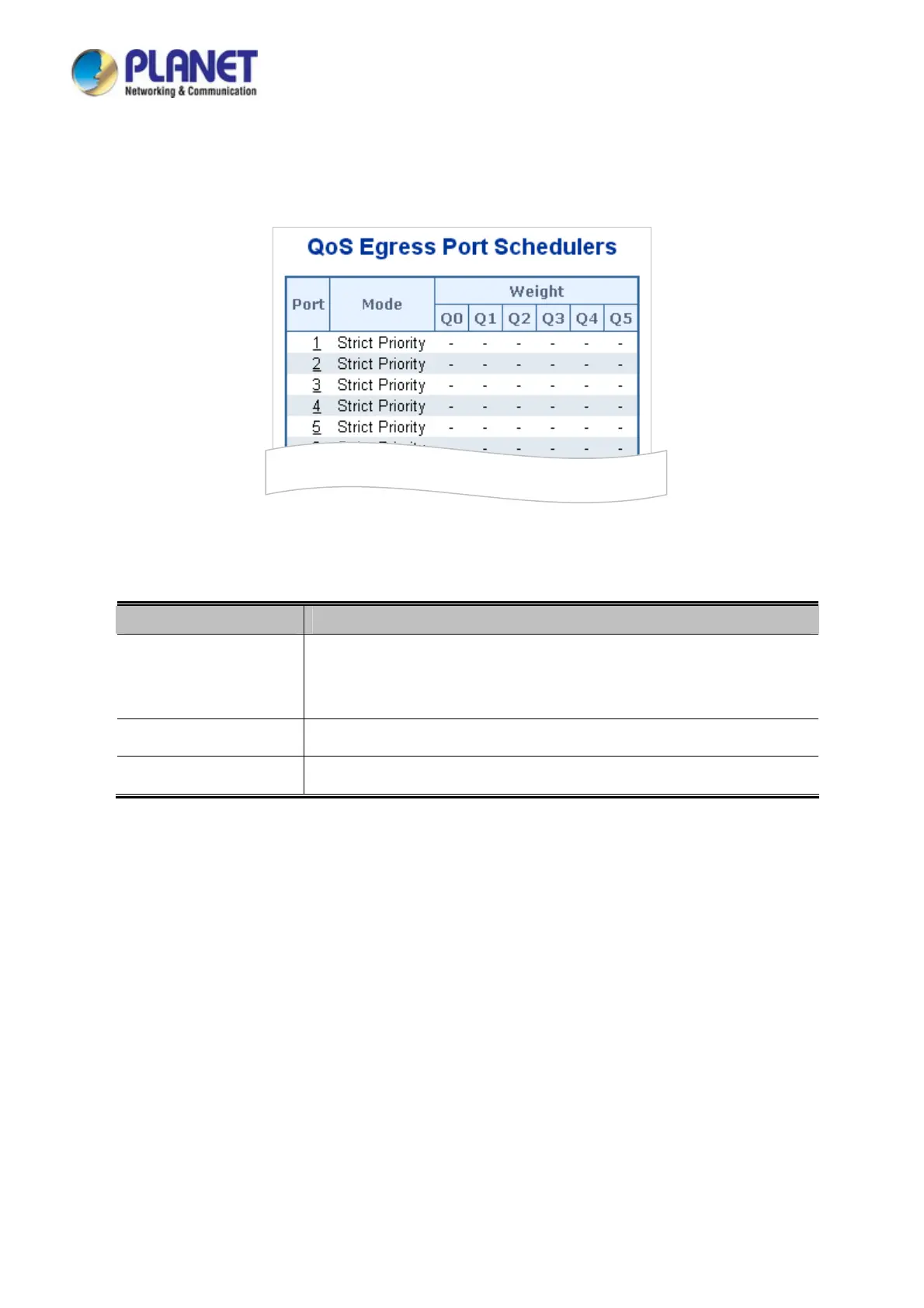

Figure 4-9-3: QoS Egress Port Schedule Screenshot
The page includes the following fields:
Object Description
T
he logical port for the settings contained in the same row.
Click on the port number in order to configure the schedulers.
For more details, please refer to chapter 4.9.5.1.
 Port
Sho
ws the scheduling mode for this port.
 Mode
Sho
ws the weight for this queue and port.
 Q0 ~ Q5
