User’s Manual of IGS-604HPT-M12
77
It is possible to activate any of the configuration files present on the switch, except for running-config which represents the
currently active configuration.
Select the file to activate and click
. This will initiate the process of completely replacing the existing
configuration with that of the selected file.
4.2.23 Configuration Delete
Configuration Delete page allows to delete the startup-config and default-config files which are stored in FLASH. If this is done
and the switch is rebooted without a prior Save operation, this effectively resets the switch to default configuration. Please refer
to Figure 4-2-28 shown below.

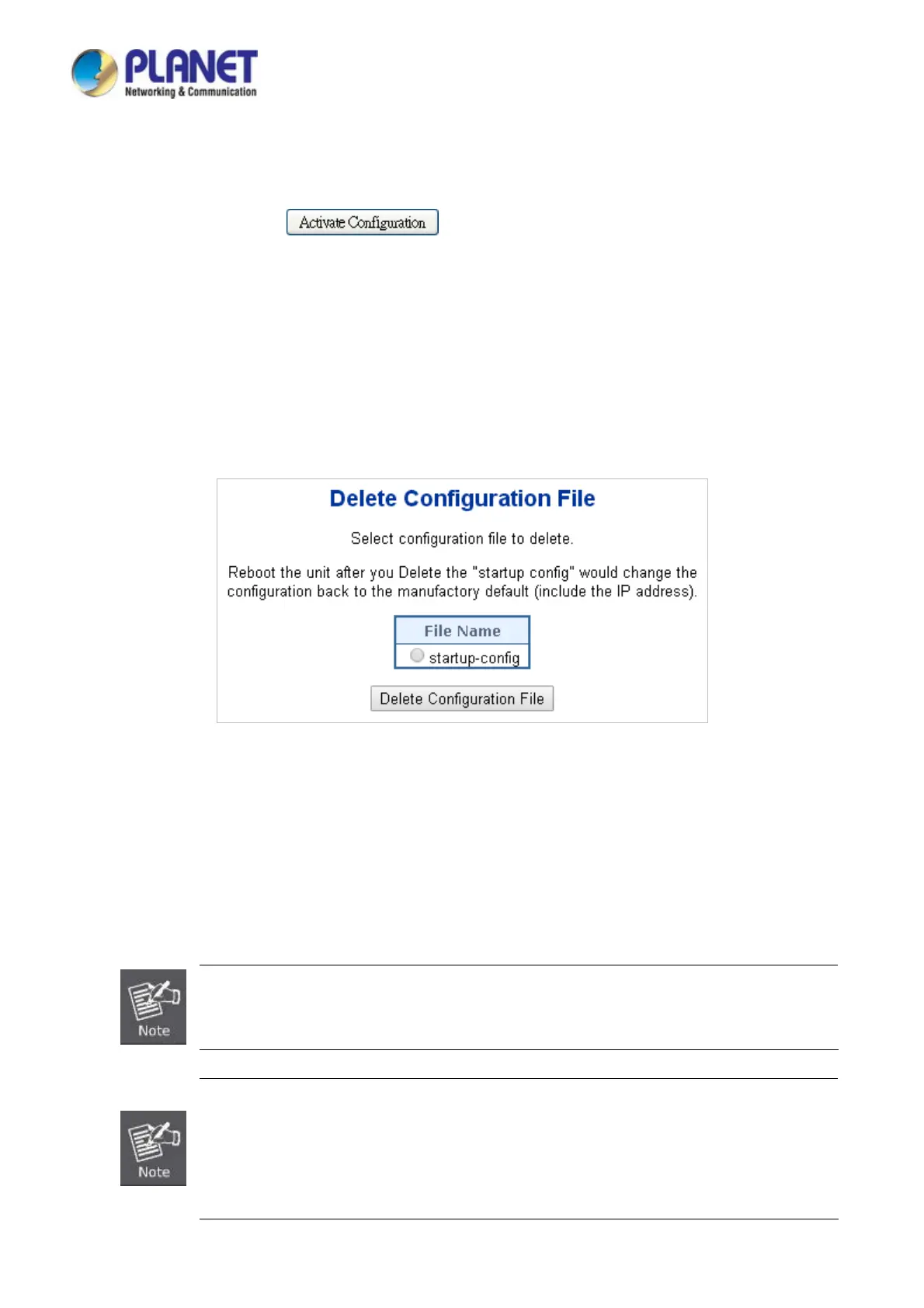

Figure 4-2-28: Configuration Delete Screenshot
4.2.24 Image Select
This page provides information about the active and alternate (backup) firmware images in the device, and allows you to revert
to the alternate image. The web page displays two tables with information about the active and alternate firmware images. The
Image Select screen in Figure 4-2-29 appears.
In case the active firmware image is the alternate image, only the "Active Image" table is shown. In this
case, the Activate Alternate Image button is also disabled.
1. If the alternate image is active (due to a corruption of the primary image or by manual
intervention), uploading a new firmware image to the device will automatically use the primary
image slot and activate this.
2. The firmware version and date information may be empty for older firmware releases. This does
not constitute an error.
