4.12.5 SSH

Configure SSH on this page. This page shows the Port Security status. Port Security is a module with no direct configuration.

Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port,

the port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port

security module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC

address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to

forward. If only one chooses to block it, it will be blocked until that user module decides otherwise.

The status page is divided into two sections -- one with a legend of user modules and one with the actual port status. The SSH

Configuration screen in Figure 4-12-5 appears.

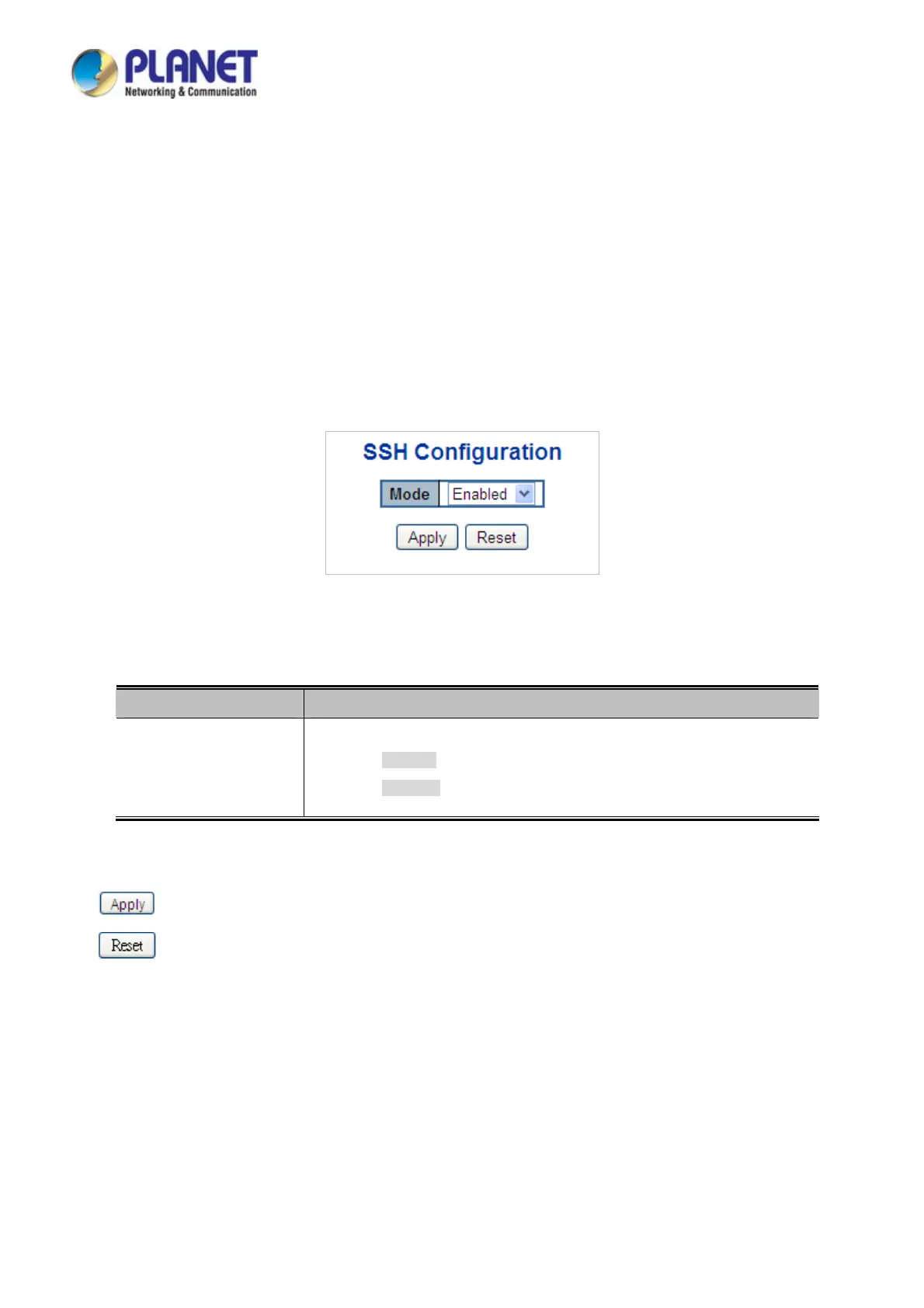

Figure 4-12-5: SSH Configuration Screen Screenshot

The page includes the following fields:

Object Description

Indicates th

e SSH mode operation. Possible modes are:

 Enabled: Enable SSH mode operation.

 Disabled: Disable SSH mode operation.

 Mode

Buttons

: Click to apply changes

: Click to undo any changes made locally and revert to previously saved values.

4.12.6 Port Security Status

This page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly

from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for

software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module, which

in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be set in the

forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one

chooses to block it, it will be blocked until that user module decides otherwise.
