User’s Manual of IGS-604HPT-M12
75

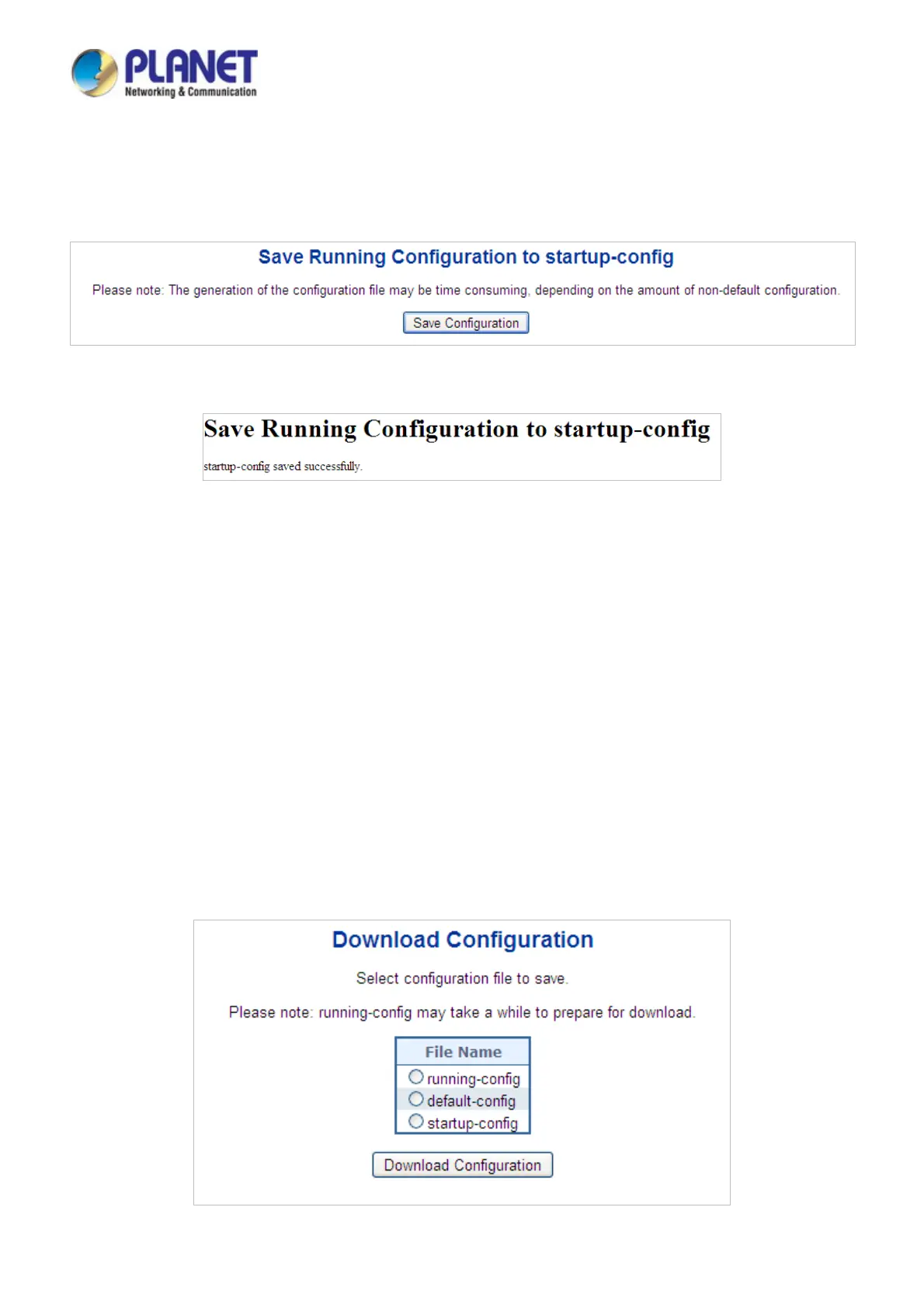

4.2.19 Save Startup Config
This function allows to save the current configuration, thereby ensuring that the current active configuration can be used at the
next reboot screen in Figure 4-2-23 as shown below. After saving the configuration, the screen in Figure 4-2-24 appears.
Figure 4-2-23: Configuration Save Screenshot
Figure 4-2-24: Finish Saving Screenshot
4.2.20 Configuration Download
The switch stores its configuration in a number of text files in CLI format. The files are either virtual (RAM-based) or stored in
flash on the switch.
There are three system files:
 running-config: A virtual file that represents the currently active configuration on the switch. This file is volatile.
 startup-config: The startup configuration for the switch reads at boot time.
 default-config: A read-only file with vendor-specific configuration. This file is read when the system is restored to default
settings.
It is also possible to store up to two other files and apply them to running-config, thereby switching configuration.
Configuration Download page allows the downloads of the running-config, startup-config and default-config on the switch.
Please refer to Figure 4-2-25 shown below.
Figure 4-2-25: Configuration Download Screenshot
