4.8.13 MLD Snooping Status
This page provides MLD Snooping status. The IGMP Snooping Status screen in Figure 4-8-16 appears.

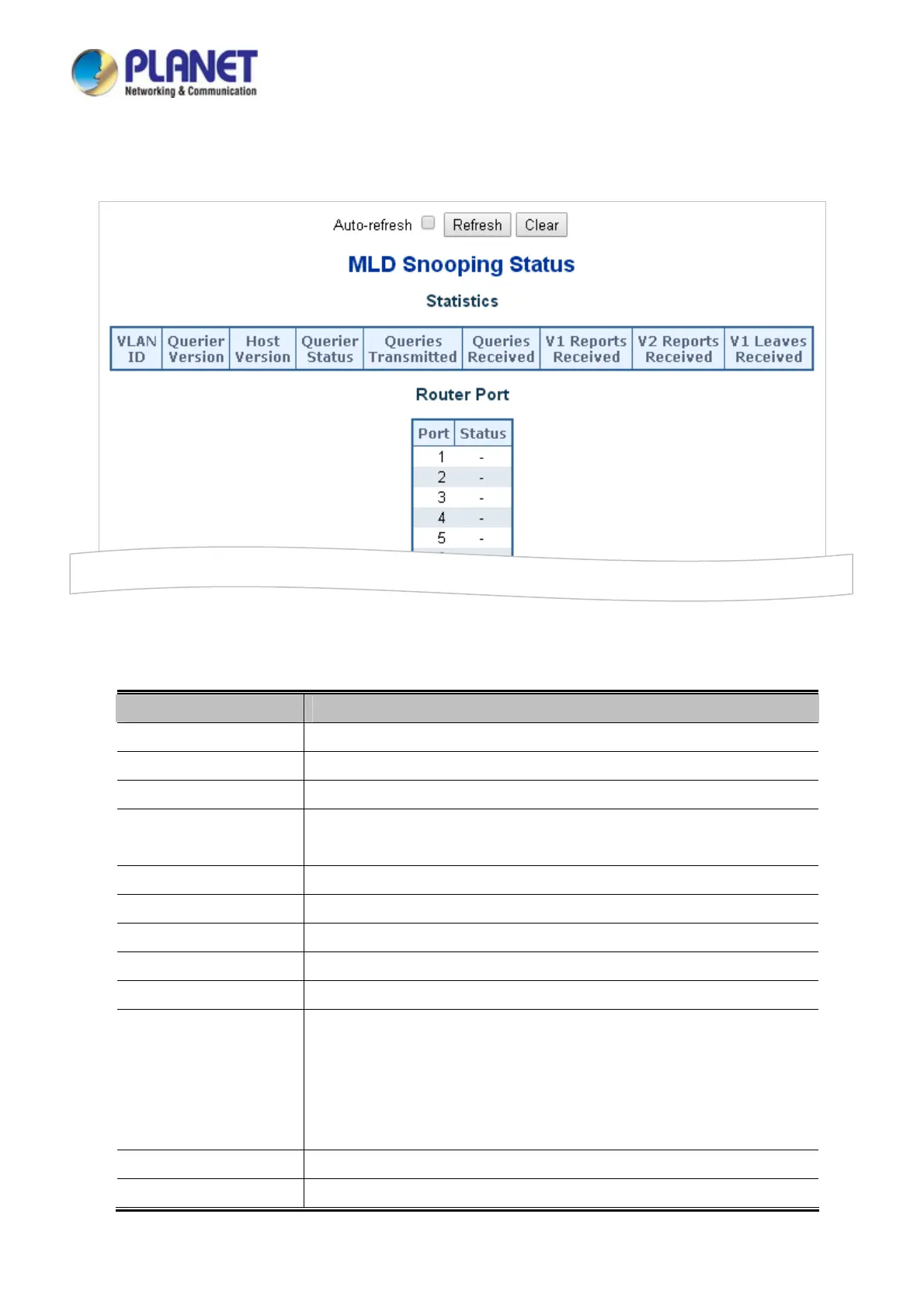

Figure 4-8-16: MLD Snooping Status Screenshot
The page includes the following fields:
Object Description
 VLAN ID
The VLAN ID of the entry.
 Querier Version
Working Querier Version currently.
 Host Version
Working Host Version currently.
 Querier Status
Shows the Querier status is "ACTIVE" or "IDLE".
"DISABLE" denotes the specific interface is administratively disabled.
 Querier Transmitted
The number of Transmitted Querier.
 Querier Received
The number of Received Querier.
 V1 Reports Received
The number of Received V1 Reports.
 V2 Reports Received
The number of Received V2 Reports.
 V1 Leave Received
The number of Received V1 Leaves.
 Router Port
Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or MLD querier.
 Static denotes the specific port is configured to be a router port.
 Dynamic denotes the specific port is learnt to be a router port.
 Both denote the specific port is configured or learnt to be a router port.
 Port
Switch port number.
 Status
Indicates whether specific port is a router port or not.
