User’s Manual of IGS-604HPT-M12
97
4.4.4 Port Mirror
Configure port Mirroring on this page. This function provides monitoring network traffic that forwards a copy of each incoming or
outgoing packet from one port of a network Switch to another port where the packet can be studied. It enables the manager to
keep close track of switch performance and alter it if necessary.
ï‚· To debug network problems, selected traffic can be copied, or mirrored to a mirror port where a frame analyzer can be
attached to analyze the frame flow.
ï‚· The Industrial Managed Switch can unobtrusively mirror traffic from any port to a monitor port. You can then attach a
protocol analyzer or RMON probe to this port to perform traffic analysis and verify connection integrity.

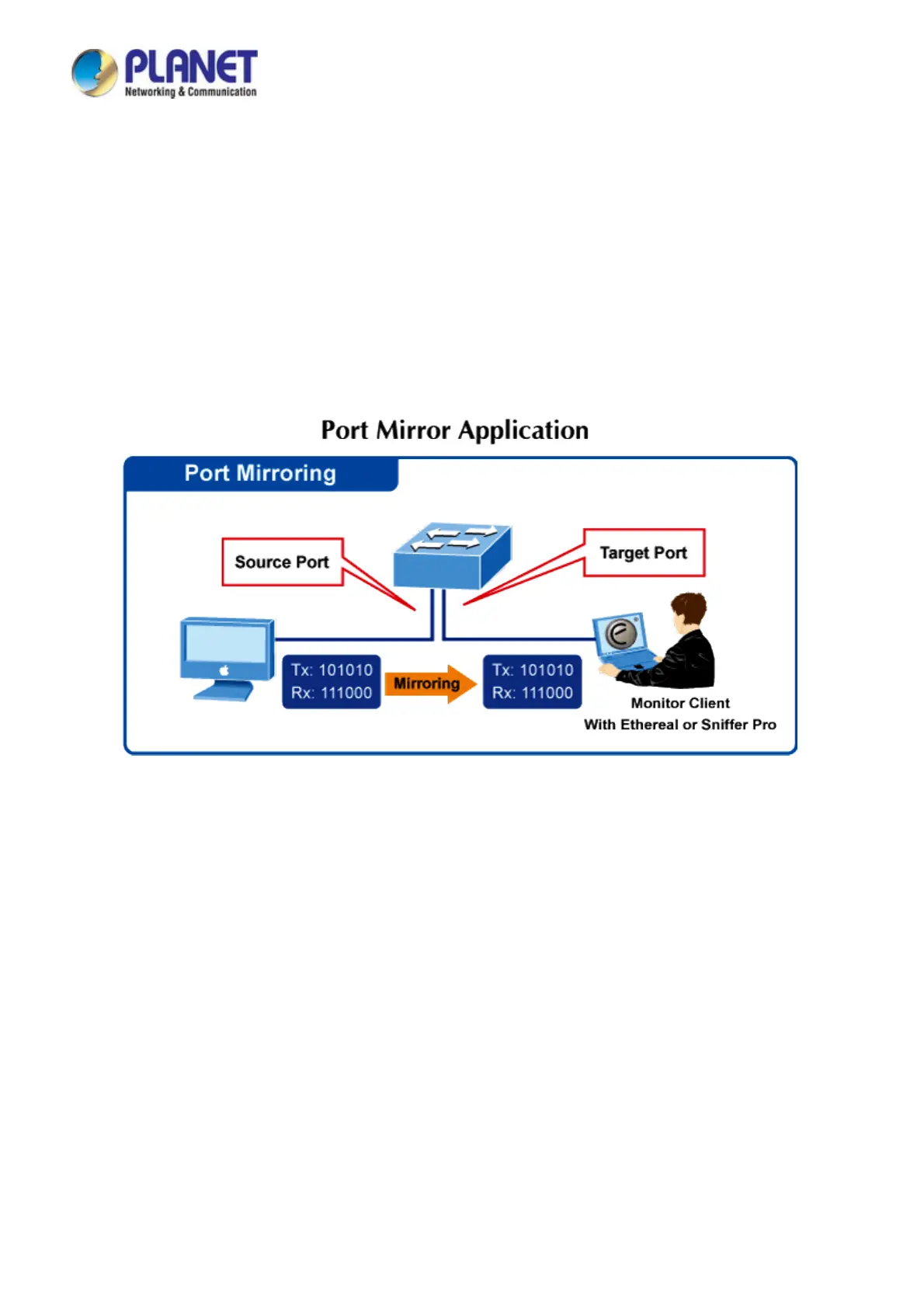

Figure 4-4-4: Port Mirror Application
The traffic to be copied to the mirror port is selected as follows:
ï‚· All frames received on a given port (also known as ingress or source mirroring).
ï‚· All frames transmitted on a given port (also known as egress or destination mirroring).
Mirror Port Configuration
The Port Mirror screen in Figure 4-4-5 appears.
