User’s Manual of IGS-604HPT-M12
92
4.4 Port Management
Use the Port Menu to display or configure the Industrial Managed Switch's ports. This section has the following items:
 Port Configuration
Configures port connection settings
 Port Statistics Overview
Lists Ethernet and RMON port statistics
 Port Statistics Detail
Lists Ethernet and RMON port statistics
 Port Mirror
Sets the source and target ports for mirroring
4.4.1 Port Configuration

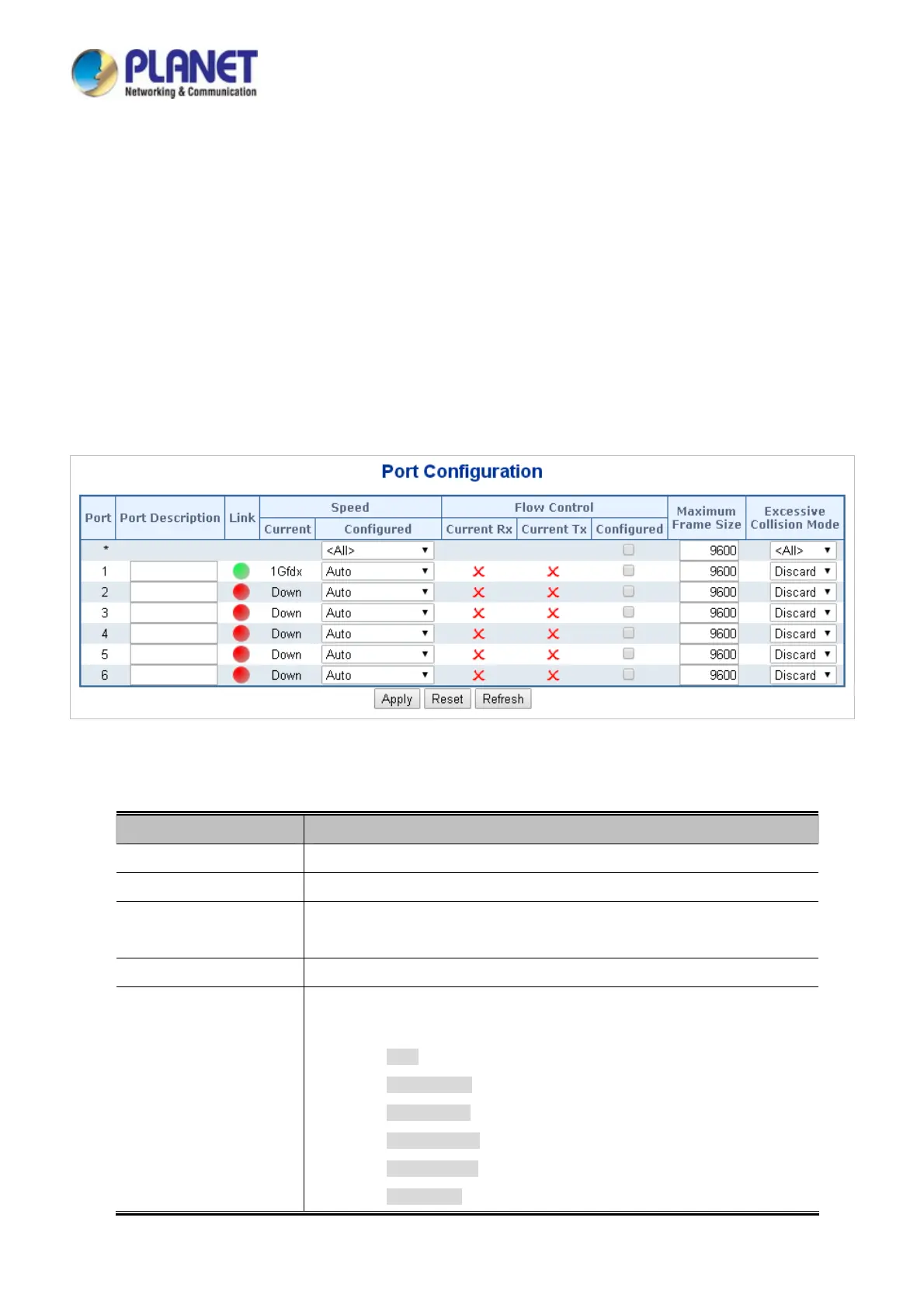

This page displays current port configurations. Ports can also be configured here. The Port Configuration screen in Figure 4-4-1
appears.
Figure 4-4-1: Port Configuration Screenshot
The page includes the following fields:
Object Description
 Port
This is the logical port number for this row.
 Port Description
Indicates the per port description.
 Link
The current link state is displayed graphically. Green indicates the link is up and
red that it is down.
 Current Link Speed
Provides the current link speed of the port.
 Configured Link Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
 Auto - Setup Auto negotiation for copper interface.
 10Mbps HDX - Force sets 10Mbps/Half-Duplex mode.
 10Mbps FDX - Force sets 10Mbps/Full-Duplex mode.
 100Mbps HDX - Force sets 100Mbps/Half-Duplex mode.
 100Mbps FDX - Force sets 100Mbps/Full-Duplex mode.
 1Gbps FDX - Force sets 1000Mbps/Full-Duplex mode.
