Planet MGSW-24160F User Manual

User’s Manual of MGSW-24160F
143
The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost
between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one
(optional) Gigabit port on both switch B and C. The redundant link between switch B and C is deliberately chosen as a 100 Mbps
Fast Ethernet link (default port cost = 200,000). Gigabit ports could be used, but the port cost should be increased from the
default to ensure that the link between switch B and switch C is the blocked link.
4.7.2 STP Bridge Configuration
This page allows you to configure STP system settings. The settings are used by all STP Bridge instances in the Switch. The
Managed Switch support the following Spanning Tree protocols:
‧ Compatiable -- Spanning Tree Protocol (STP):Provides a single path between end stations, avoiding and
eliminating loops.
‧ Normal -- Rapid Spanning Tree Protocol (RSTP) : Detects and uses of network topologies that provide faster
spanning tree convergence, without creating forwarding loops.
‧ Extension – Multiple Spanning Tree Protocol (MSTP) : Defines an extension to RSTP to further develop the
usefulness of virtual LANs (VLANs). This "Per-VLAN" Multiple Spanning Tree Protocol configures a separate
Spanning Tree for each VLAN group and blocks all but one of the possible alternate paths within each Spanning
Tree.

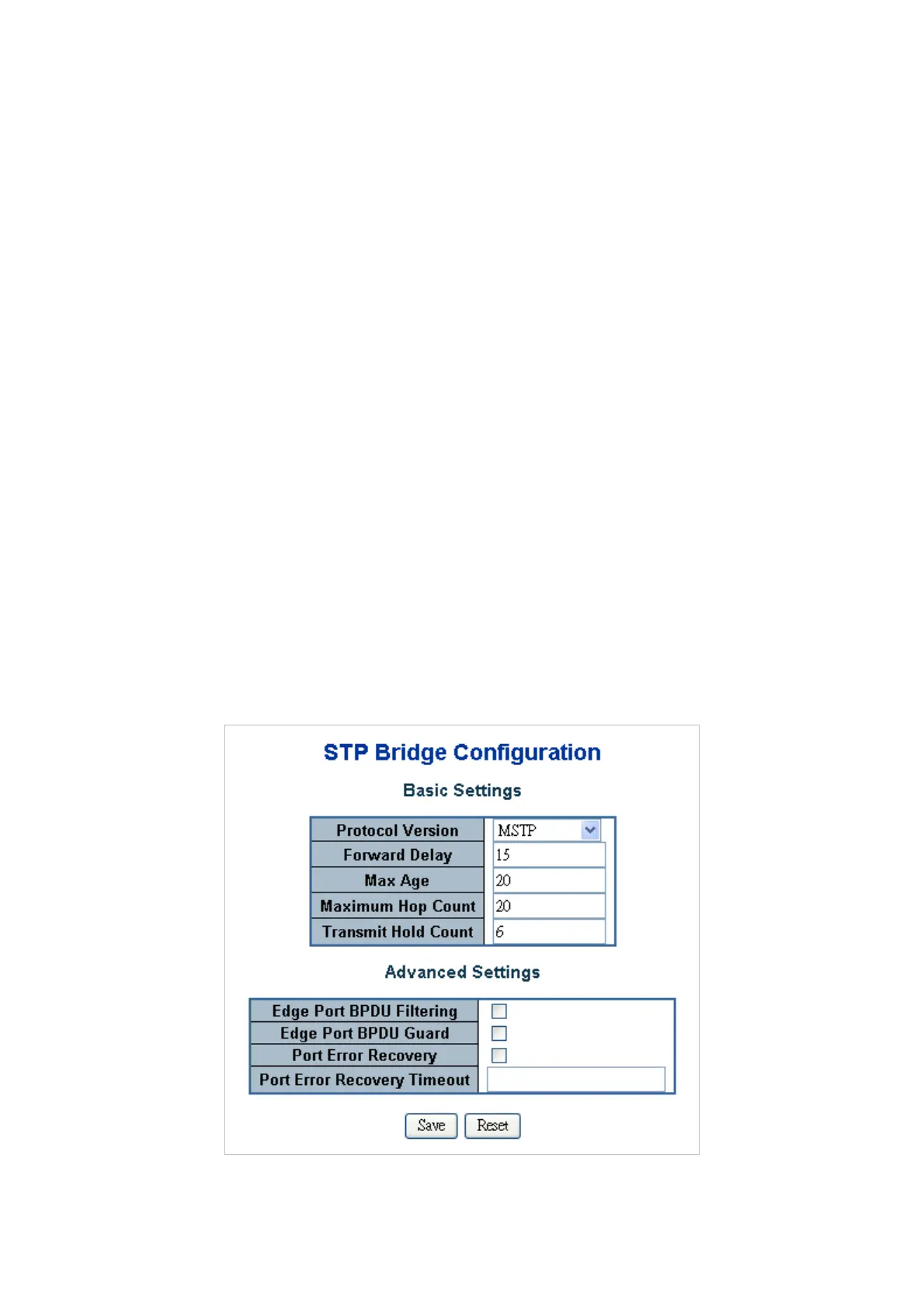

The STP Bridge Configuration screen in Figure 4-7-4 appears.
Figure 4-7-4 STP Bridge Configuration Page Screenshot

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
