User’s Manual of MGSW-24160F
134
VLAN 2: Port-1, Port-2 and Port-3
VLAN 3: Port-4, Port-5 and Port-6
VLAN 1: All other ports – Port-7~Port-24
About the VLAN ports connect to the hosts, please refer to 4.6.10.1 examples. The following steps will focus on the VLAN Trunk
port configuration.
1. Specify Port-8 to be the 802.1Q VLAN Trunk port.
2. Assign Port-8 to both VLAN 2 and VLAN 3 at the VLAN Member configuration page.
3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.
4. Assign the VLAN Trunk Port to be the member of each VLAN – which wants to be aggregated. At this sample, add Port-8 to
be VLAN 2 and VLAN 3 member port. The screen in Figure 4-6-12 appears.

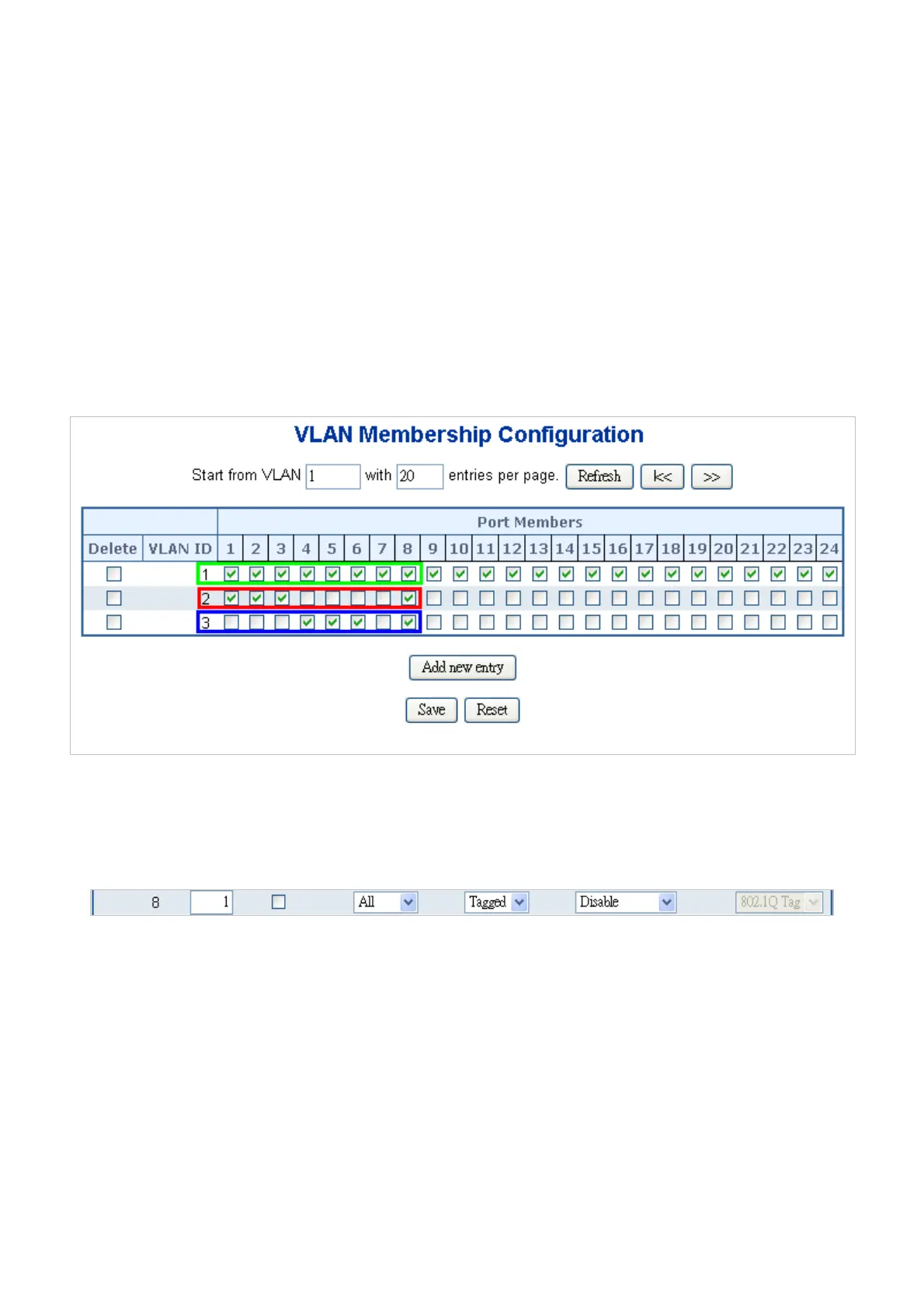

Figure 4-6-12 VLAN Overlap Port Setting & VLAN 1 – The Public Area Member Assign
5. Specify Port-8 to be the 802.1Q VLAN Trunk port, and the Trunking port must be a Tagged port while egress. The Port-8
configuration as the following screen in Figure 4-6-13.
Figure 4-6-13 The Configuration of VLAN Trunk port
That is, although the VLAN 2 members: Port-1 to Port-3 and VLAN 3 members: Port-4 to Port-6 also belongs to VLAN 1. But
with different PVID settings, packets form VLAN 2 or VLAN 3 is not able to access to the other VLAN.
6. Repeats Step 1 to 5, setup the VLAN Trunk port at the partner switch and add more VLANs to join the VLAN trunk, repeats
Step 1 to 3 to assign the Trunk port to the VLANs.
4.6.10.3 Port Isolate
The diagram shows how the Managed Switch handles isolate and promiscuous ports, and the each PCs are not able to access

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
