User’s Manual of MGSW-24160F
32
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Managed Switch, use suitable screws to securely attach the brackets to the rack,
as shown in Figure 2-6.

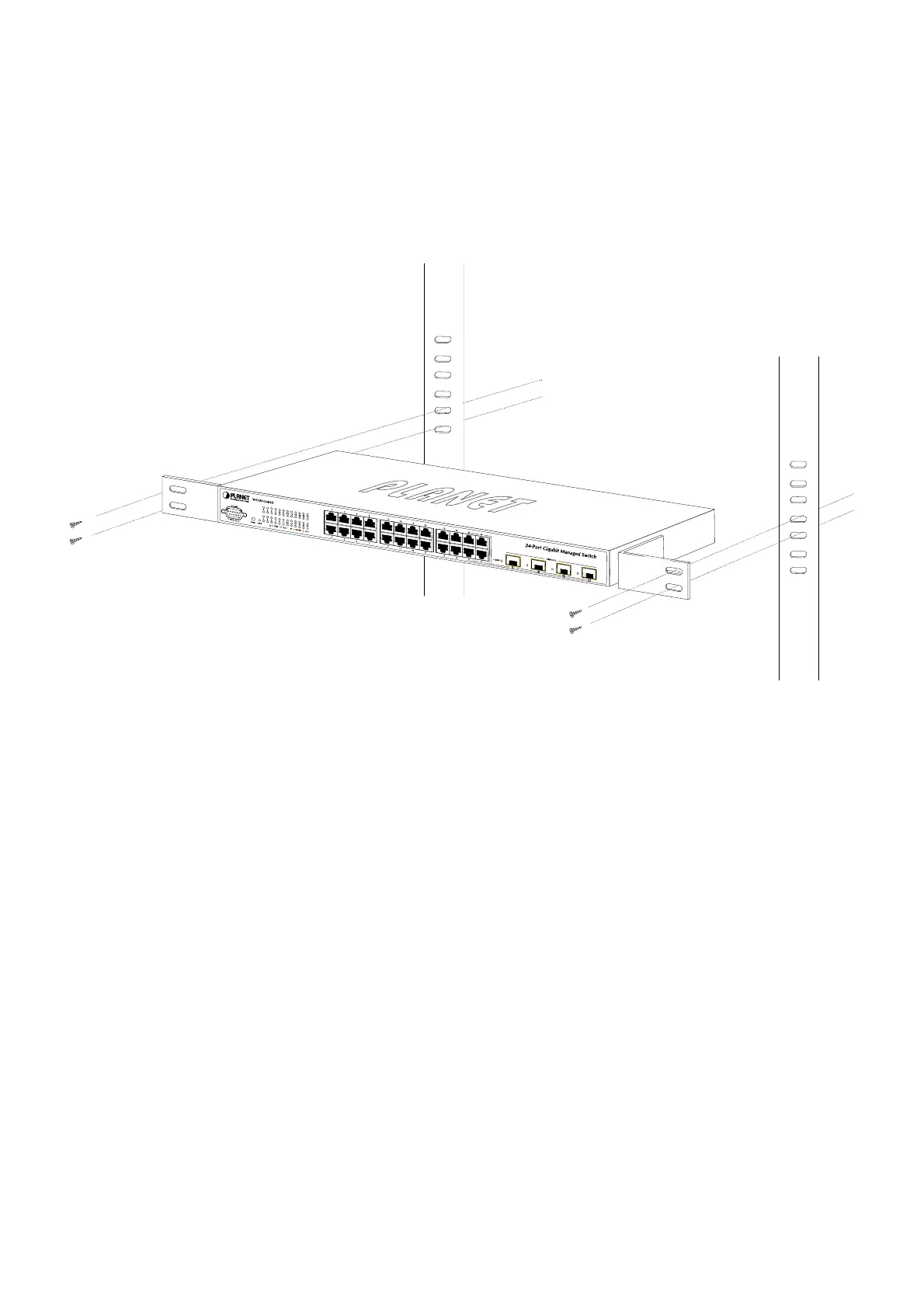

Figure 2-6 Mounting the Managed Switch on a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply
power to the Managed Switch.
2.2.3 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port
without having to power down the Managed Switch. As the Figure 2-7 appears.

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
