User’s Manual of MGSW-24160F
192
4.9.10 Voice VLAN OUI Table
Configure VOICE VLAN OUI table on this page. The maximum entry number is 16. Modify OUI table will restart auto detect OUI
process. The Voice VLAN OUI Table screen in Figure 4-9-15 appears.

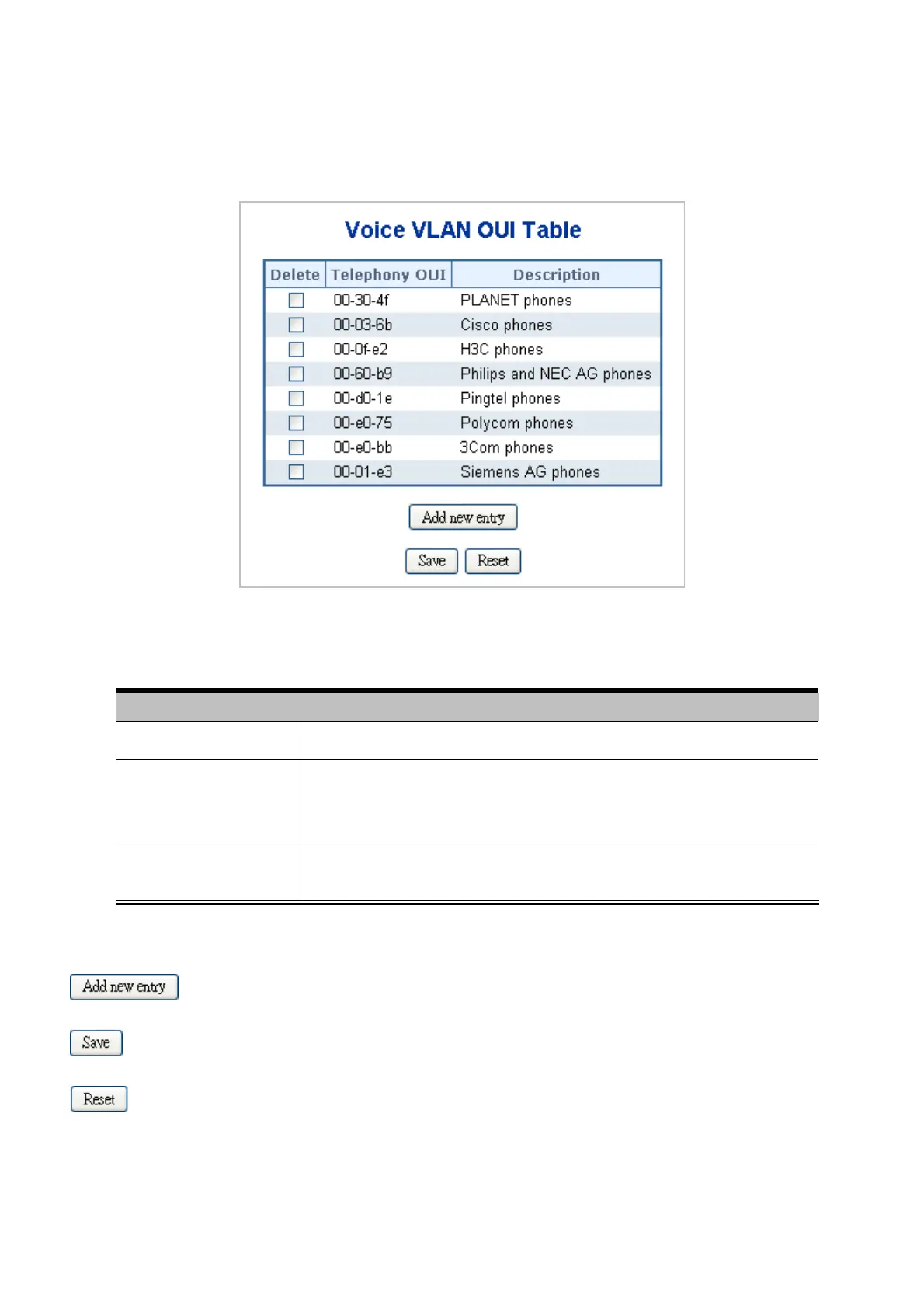

Figure 4-9-15 Voice VLAN OUI Table Page Screenshot
The page includes the following fields:
Object Description
Delete
Check to delete the entry. It will be deleted during the next save.
Telephony OUI
An telephony OUI address is a globally unique identifier assigned to a vendor by
IEEE. It must be 6 characters long and the input format is "xx-xx-xx" (x is a
hexadecimal digit).
Description
The description of OUI address. Normaly, it describes which vendor telephony
device. The allowed string length is 0 to 32.
Buttons
: Click to add a new access management entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
