User’s Manual of MGSW-24160F

260

4.12.7 Port Security Detail

This page shows the MAC addresses secured by the Port Security module. Port Security is a module with no direct

configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port

security on a port, the port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are

passed on to the port security module, which in turn asks all user modules whether to allow this new MAC address to forward or

block it. For a MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the

MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise. The Port

Security Detail screen in Figure 4-12-7 appears.

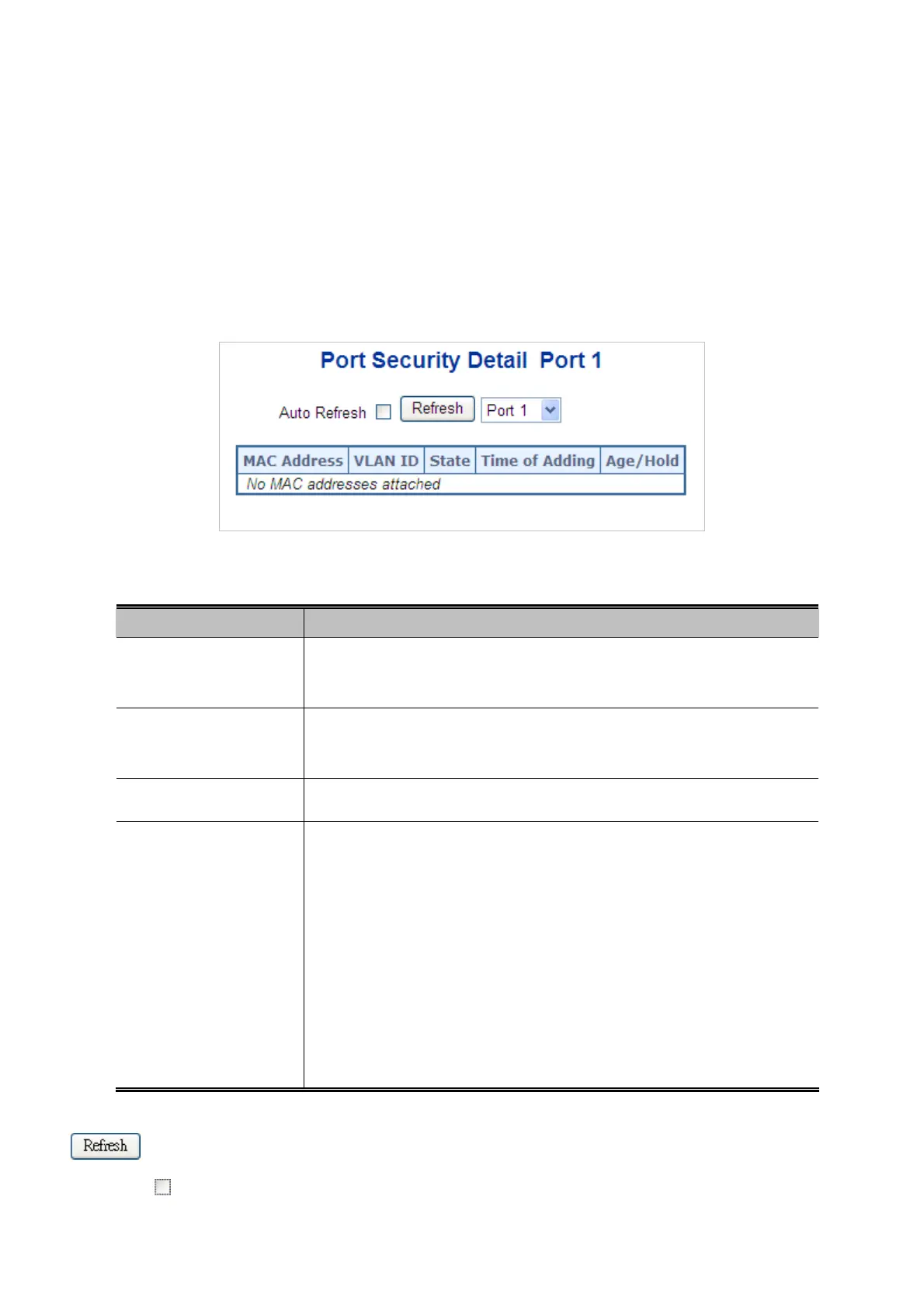

Figure 4-12-7 Port Security Detail Screen Page Screenshot

The page includes the following fields:

Object Description

 MAC Address & VLAN

The MAC address and VLAN ID that is seen on this port. If no MAC addresses

are learned, a single row stating "No MAC addresses attached" is displayed.

 State

Indicates whether the corresponding MAC address is blocked or forwarding. In

the blocked state, it will not be allowed to transmit or receive traffic.

 Time of Adding

Shows the date and time when this MAC address was first seen on the port.

 Age/Hold

If at least one user module has decided to block this MAC address, it will stay in

the blocked state until the hold time (measured in seconds) expires. If all user

modules have decided to allow this MAC address to forward, and aging is

enabled, the Port Security module will periodically check that this MAC address

still forwards traffic. If the age period (measured in seconds) expires and no

frames have been seen, the MAC address will be removed from the MAC table.

Otherwise a new age period will begin.

If aging is disabled or a user module has decided to hold the MAC address

indefinitely, a dash (-) will be shown.

Buttons

: Click to refresh the page immediately.

Auto-refresh

: Check this box to enable an automatic refresh of the page at regular intervals.

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990
